Sharp LC-26SB25E Service Manual

LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
12

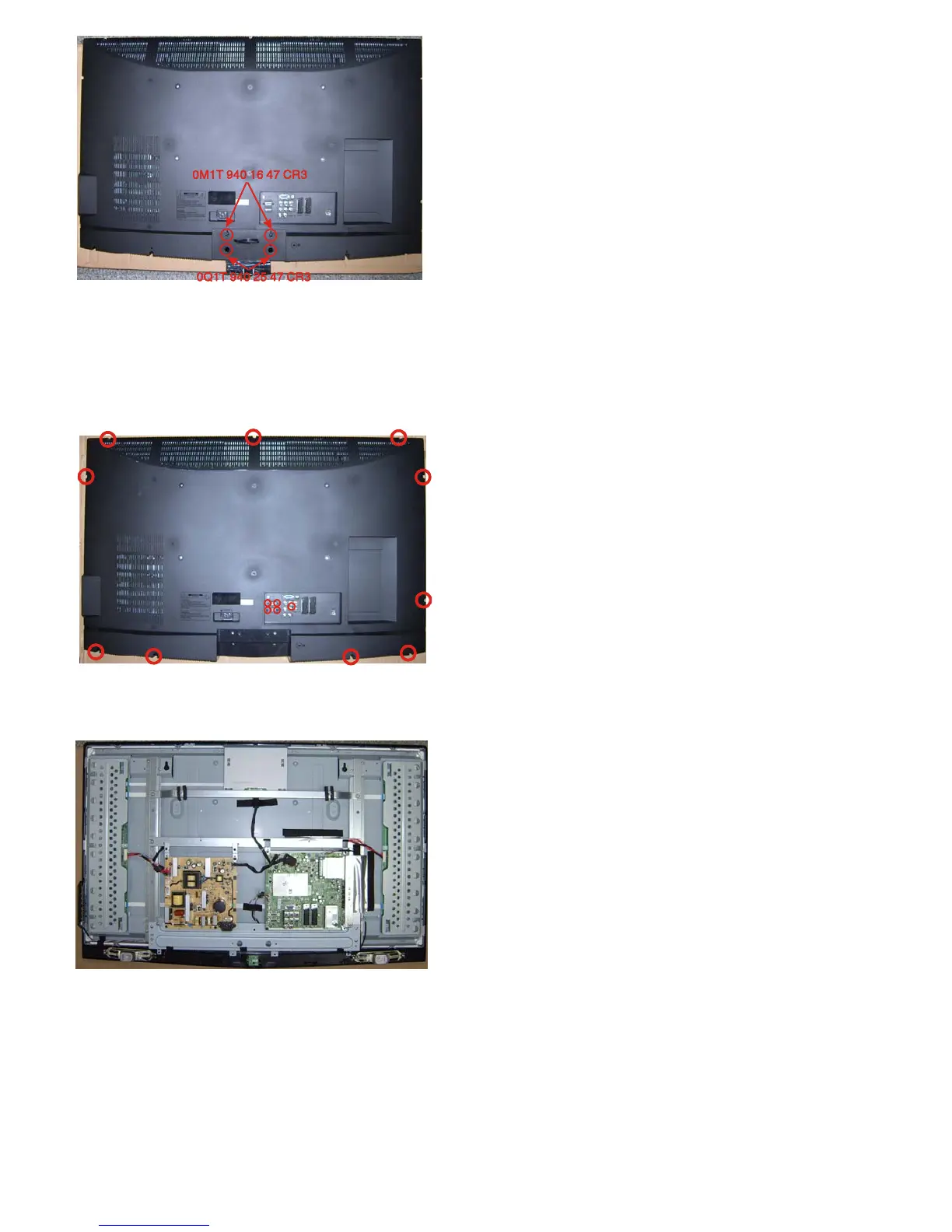

Fig.4
2. Remove the 4 screws. Detach the BASE STAND as Fig.5.
Step 2. Remove the REAR COVER Assy.
1. Remove the 13 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power, IR, Key board and the Speakers.
Fig.6
1. Remove the 6 screws and disconnect 6 cables. Detach the Main board as Fig.7 and Fig.8.

Sharp LC-26SB25E Specifications

General

Brand	Sharp
Model	LC-26SB25E
Category	LCD TV
Language	English
