2008-03-14
LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
13

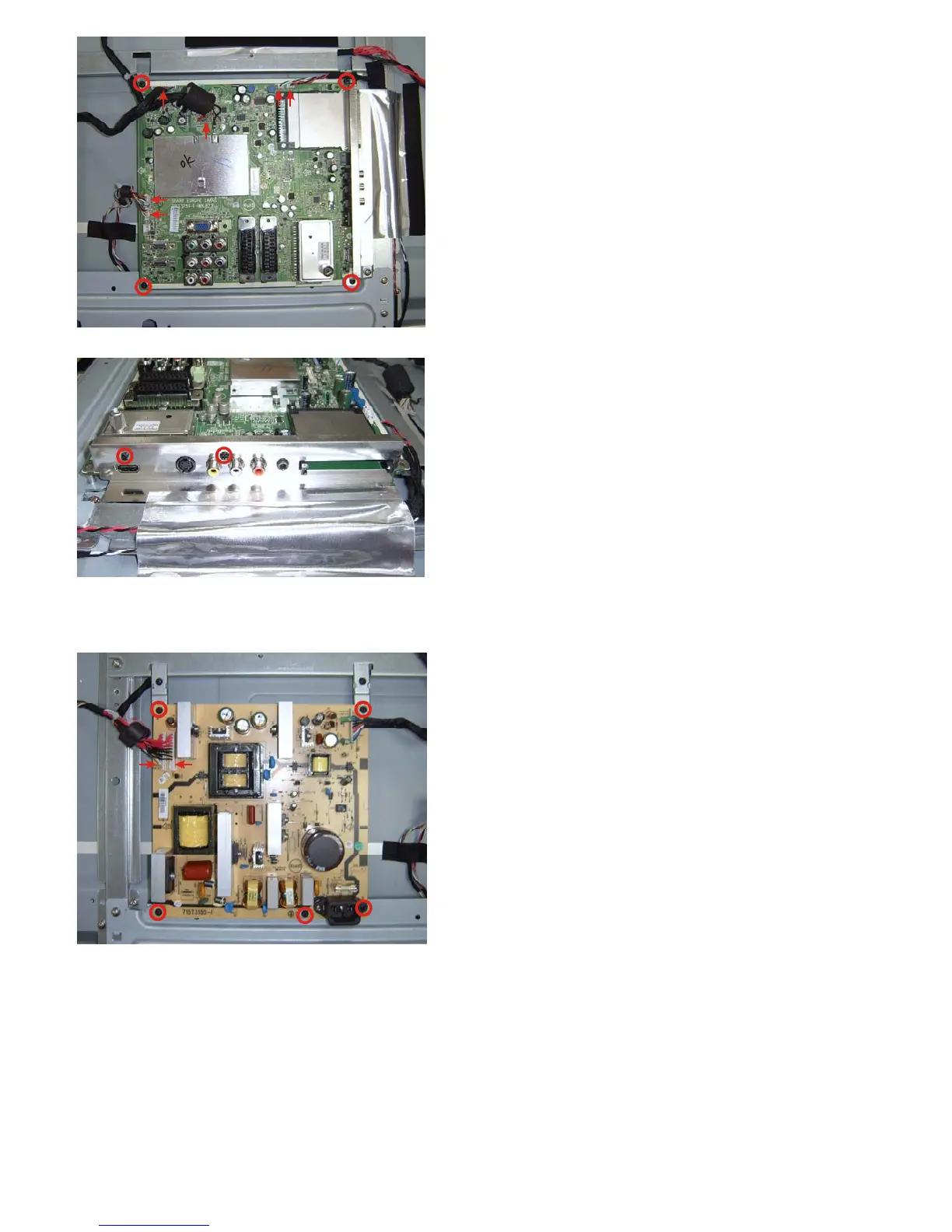

Fig.7
Fig.8
2. Remove the 5 screws and disconnect 2 cables. Detach the Power board as Fig.9.
Fig.9
3. Remove the 1 screw and disconnect 1 cable. Detach the IR board as Fig.10.
