Connecting external devices

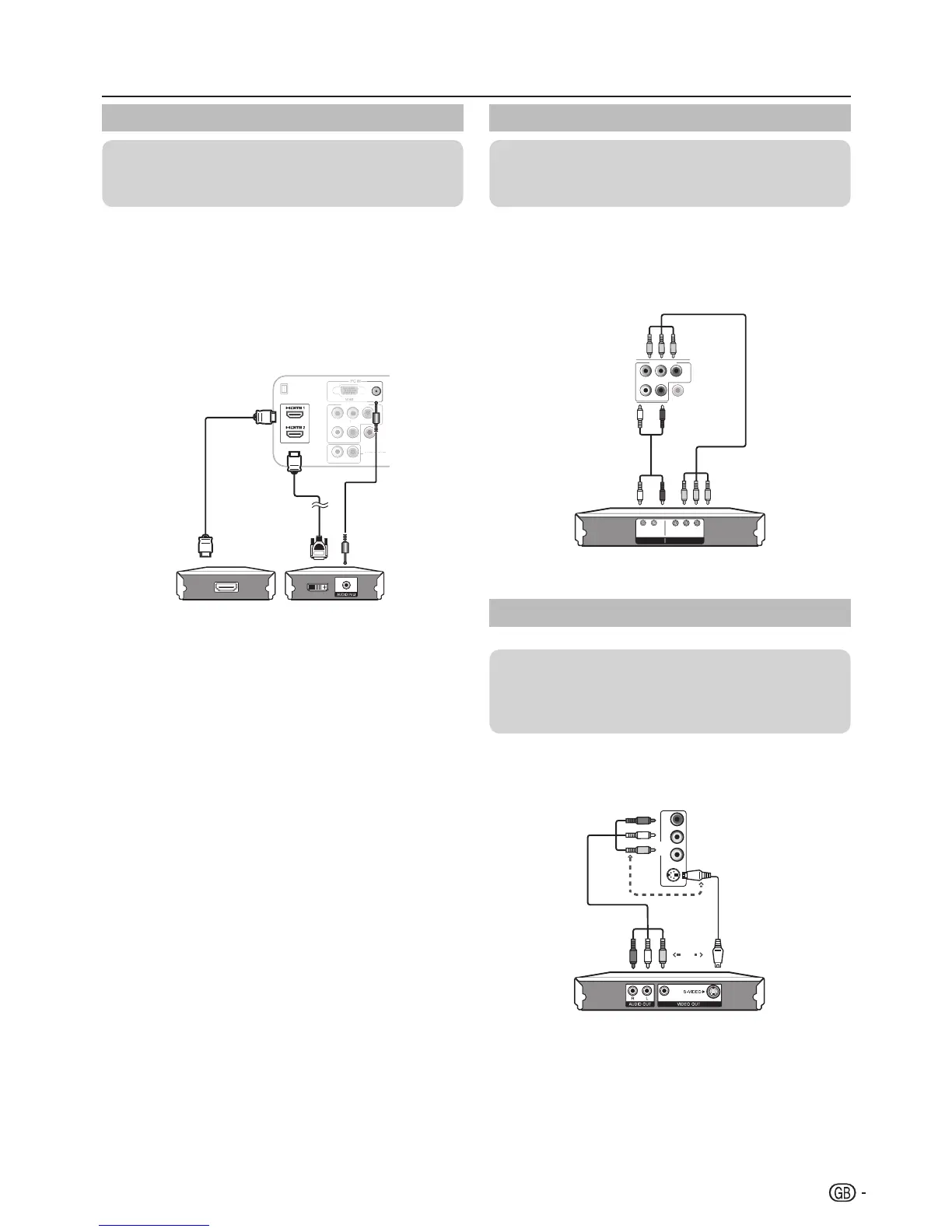

Example of connectable devices
E DVD E Blu-ray player/recorder
Example of connectable devices
E VCR E DVD E Blu-ray player/recorder
E Game console E Camcorder
Example of connectable devices
E VCR E DVD E Blu-ray player/recorder
The HDMI connections (High Definition Multimedia
Interface) permit digital video and audio transmission via
a connection cable from a player/recorder� The digital
picture and sound data are transmitted without data
compression and therefore lose none of their quality�
Analogue/digital conversion is no longer necessary in
the connected devices, which also would result in quality
losses�
Y
LR
LR
Pb Pr
AUDIO
SPDIF OUT
AUDIO OUT
COMPONENT
Y
L
R
L
R
Pb
Pr
S
PDIF
OU
T
AU
DI
O
OUT
CO
MP
O
NENT
DVI/HDMI conversion
Using an DVI/HDMI adapter cable, the digital video
signals of a DVD can also be played via the compatible
HDMI connection� The sound must be fed in additionally�
Both HDMI and DVI use the same HDCP copy
protection method�
Supported video signal:
576i, 576p, 480i, 480p, 1080i, 720p, 1080p
See page 26 for PC signal compatibility�
You will enjoy accurate colour reproduction and high
quality images through the (YPbPr) when connecting a
DVD recorder or other recording equipment�
YPB
(
CB)
LRPR
(
CR)
COMPONENTAUDIO
Y
LR
Pb Pr
SPDIF OUT
COMPONENT
S
PDIF
OU
T
You can use the S-Video when connecting to a game
console, camcorder, a DVD recorder and some other
equipment�
S-VIDEO
VIDEO L R
AV IN
NOTE
When using an S-video cable, you also need to connect •
an audio cable (R/L).
HDMI connection
(YPbPr) Component connection
S-Video connection
13
Component cable
DVI/HDMI
adapter cable
Audio cable
HDMI cable
Audio cable
Audio cable S-video cable
or
