ELECTRICAL ADJUSTMENTS

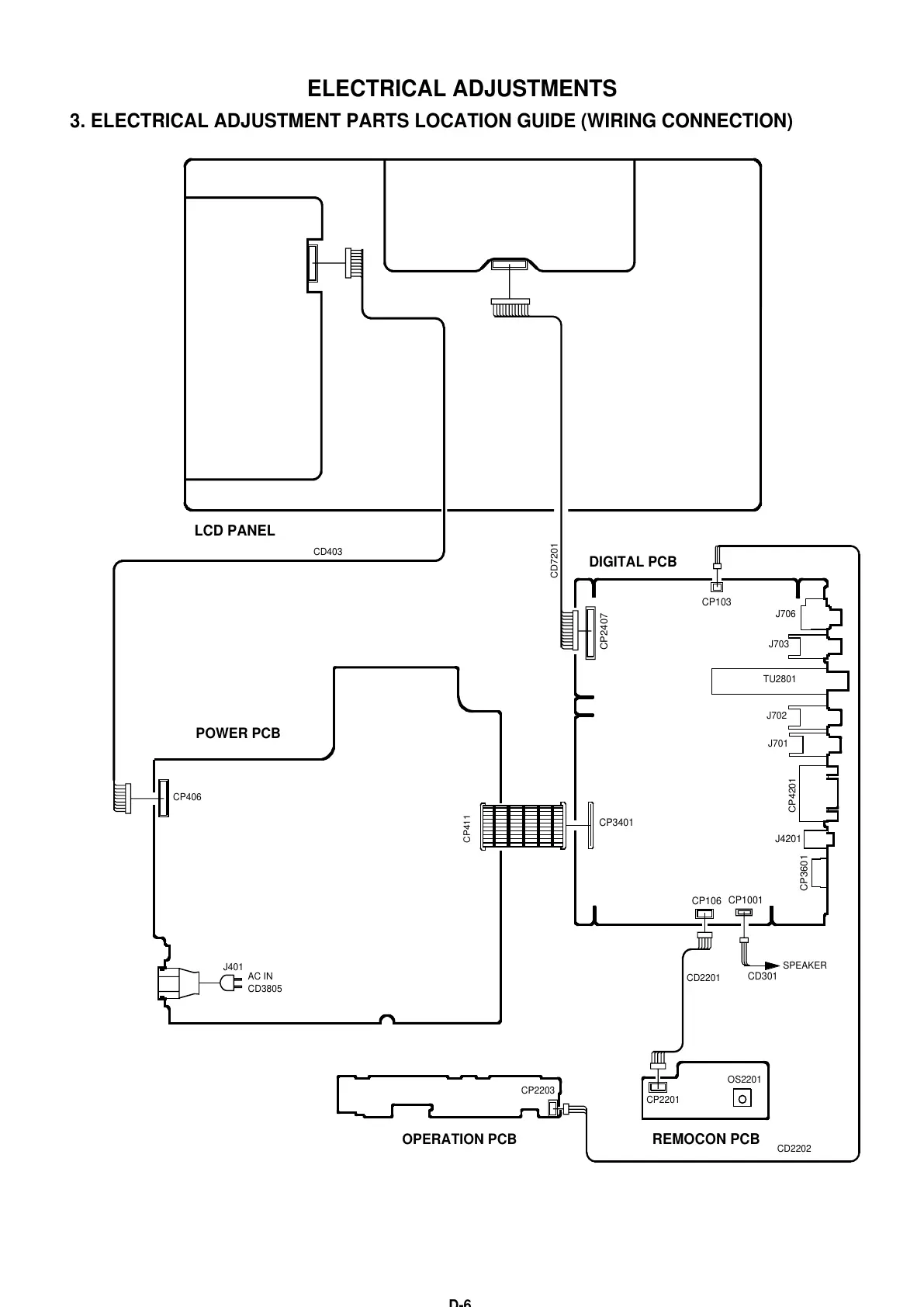

3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
D-6
J706
J703
TU2801
J702
J701
CP4201
J4201
CP3601
CP1001
CP106
CP103
CP3401
CP2407
SPEAKER
CD301
OS2201
CP2201
REMOCON PCB
CD2201
OPERATION PCB
CP2203
CD2202
DIGITAL PCB
LCD PANEL
CD403
CD7201
CP406
J401
AC IN
CD3805
CP411
POWER PCB
