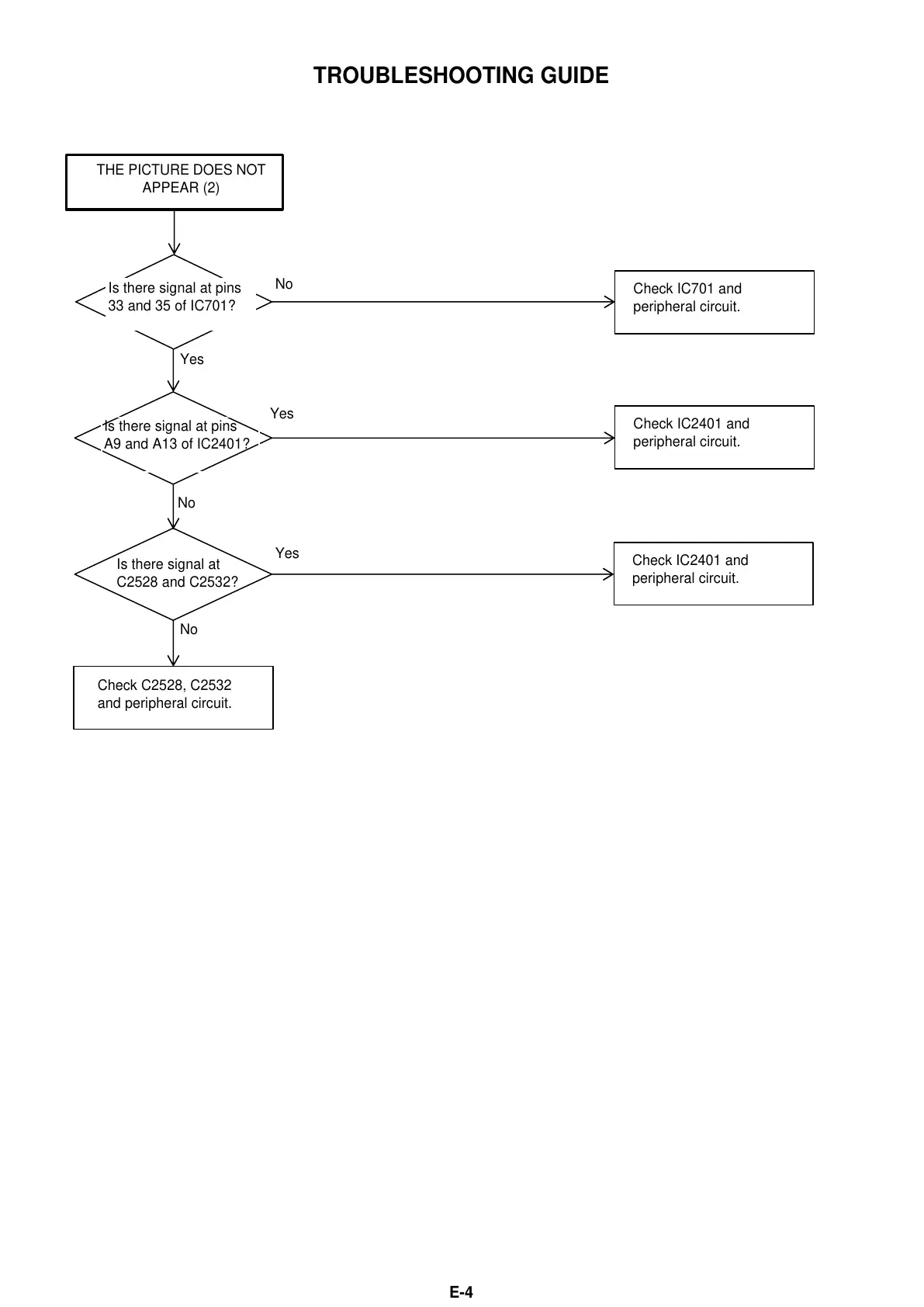

Sharp LC-26SH12U

TROUBLESHOOTING GUIDE
Is there signal at pins
33 and 35 of IC701?
Is there signal at pins
A9 and A13 of IC2401?
Is there signal at
C2528 and C2532?
Check C2528, C2532
and peripheral circuit.
Check IC701 and
peripheral circuit.
Check IC2401 and
peripheral circuit.
Check IC2401 and
peripheral circuit.
No
Yes
THE PICTURE DOES NOT
APPEAR (2)
No
No
Yes
Yes
E-4
