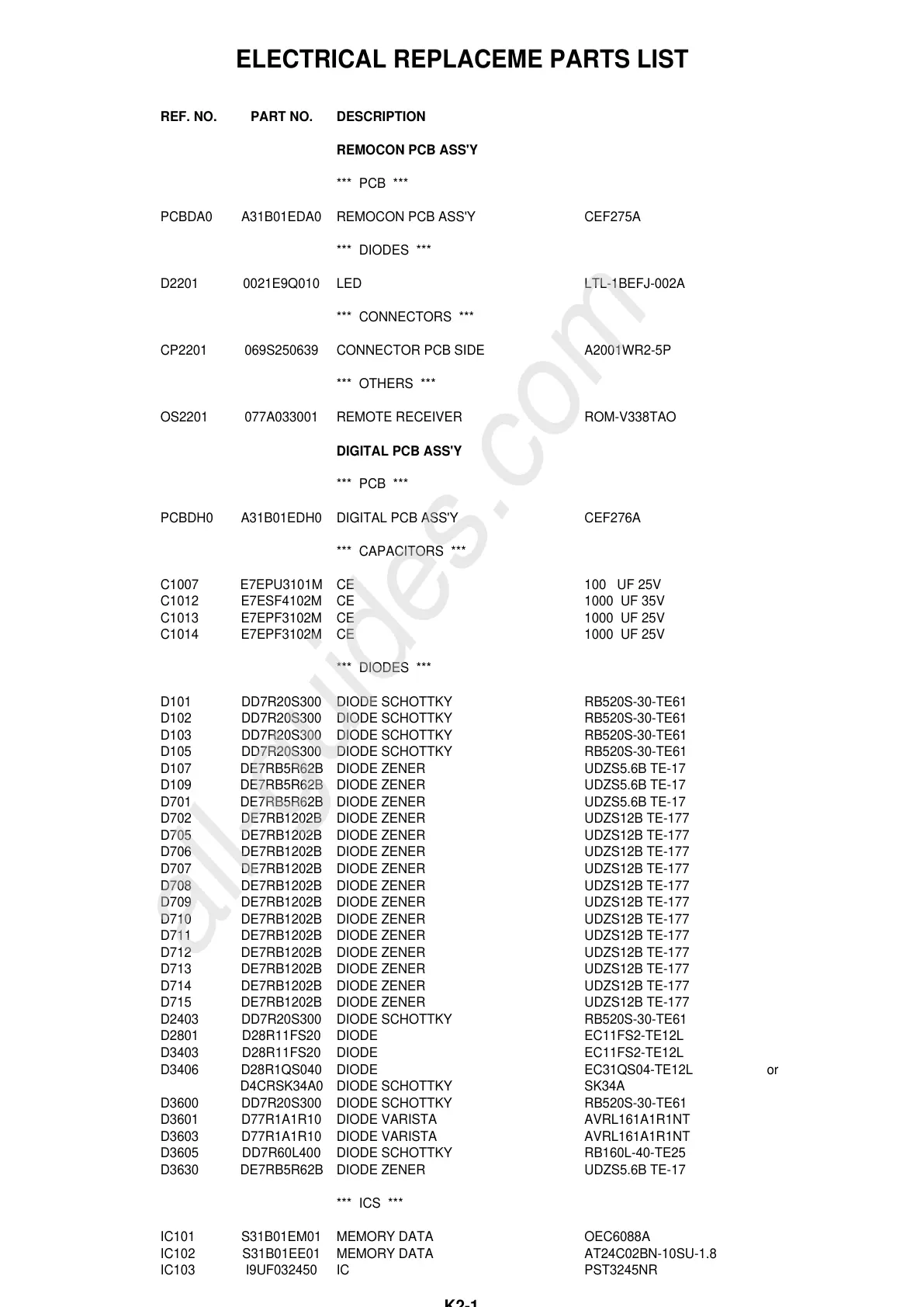

Sharp LC-26SH12U

ELECTRICAL REPLACEME PARTS LIST
REF. NO. PART NO. DESCRIPTION
REMOCON PCB ASS'Y
*** PCB ***
PCBDA0 A31B01EDA0 REMOCON PCB ASS'Y CEF275A
*** DIODES ***
D2201 0021E9Q010 LED LTL-1BEFJ-002A
*** CONNECTORS ***
CP2201 069S250639 CONNECTOR PCB SIDE A2001WR2-5P
*** OTHERS ***
OS2201 077A033001 REMOTE RECEIVER ROM-V338TAO
DIGITAL PCB ASS'Y
*** PCB ***
PCBDH0 A31B01EDH0 DIGITAL PCB ASS'Y CEF276A
*** CAPACITORS ***
C1007 E7EPU3101M CE 100 UF 25V
C1012 E7ESF4102M CE 1000 UF 35V
C1013 E7EPF3102M CE 1000 UF 25V
C1014 E7EPF3102M CE 1000 UF 25V
*** DIODES ***
D101 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D102 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D103 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D105 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D107 DE7RB5R62B DIODE ZENER UDZS5.6B TE-17
D109 DE7RB5R62B DIODE ZENER UDZS5.6B TE-17
D701 DE7RB5R62B DIODE ZENER UDZS5.6B TE-17
D702 DE7RB1202B DIODE ZENER UDZS12B TE-177
D705 DE7RB1202B DIODE ZENER UDZS12B TE-177
D706 DE7RB1202B DIODE ZENER UDZS12B TE-177
D707 DE7RB1202B DIODE ZENER UDZS12B TE-177
D708 DE7RB1202B DIODE ZENER UDZS12B TE-177
D709 DE7RB1202B DIODE ZENER UDZS12B TE-177
D710 DE7RB1202B DIODE ZENER UDZS12B TE-177
D711 DE7RB1202B DIODE ZENER UDZS12B TE-177
D712 DE7RB1202B DIODE ZENER UDZS12B TE-177
D713 DE7RB1202B DIODE ZENER UDZS12B TE-177
D714 DE7RB1202B DIODE ZENER UDZS12B TE-177
D715 DE7RB1202B DIODE ZENER UDZS12B TE-177
D2403 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D2801 D28R11FS20 DIODE EC11FS2-TE12L
D3403 D28R11FS20 DIODE EC11FS2-TE12L
D3406 D28R1QS040 DIODE EC31QS04-TE12L or
D4CRSK34A0 DIODE SCHOTTKY SK34A
D3600 DD7R20S300 DIODE SCHOTTKY RB520S-30-TE61
D3601 D77R1A1R10 DIODE VARISTA AVRL161A1R1NT
D3603 D77R1A1R10 DIODE VARISTA AVRL161A1R1NT
D3605 DD7R60L400 DIODE SCHOTTKY RB160L-40-TE25
D3630 DE7RB5R62B DIODE ZENER UDZS5.6B TE-17
*** ICS ***
IC101 S31B01EM01 MEMORY DATA OEC6088A
IC102 S31B01EE01 MEMORY DATA AT24C02BN-10SU-1.8
IC103 I9UF032450 IC PST3245NR
