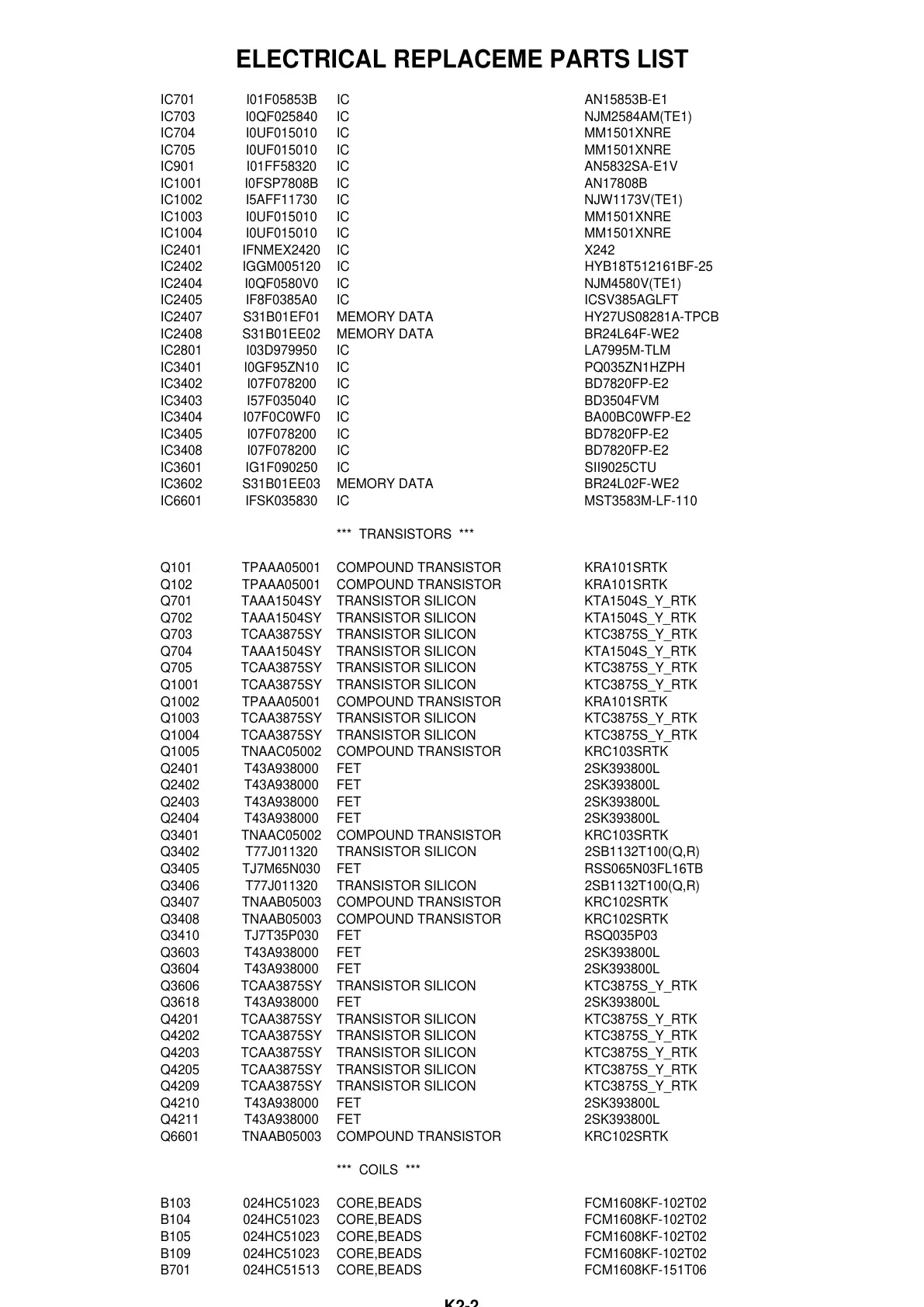

ELECTRICAL REPLACEME PARTS LIST
IC701 I01F05853B IC AN15853B-E1
IC703 I0QF025840 IC NJM2584AM(TE1)
IC704 I0UF015010 IC MM1501XNRE
IC705 I0UF015010 IC MM1501XNRE
IC901 I01FF58320 IC AN5832SA-E1V
IC1001 I0FSP7808B IC AN17808B
IC1002 I5AFF11730 IC NJW1173V(TE1)
IC1003 I0UF015010 IC MM1501XNRE
IC1004 I0UF015010 IC MM1501XNRE
IC2401 IFNMEX2420 IC X242
IC2402 IGGM005120 IC HYB18T512161BF-25
IC2404 I0QF0580V0 IC NJM4580V(TE1)
IC2405 IF8F0385A0 IC ICSV385AGLFT
IC2407 S31B01EF01 MEMORY DATA HY27US08281A-TPCB
IC2408 S31B01EE02 MEMORY DATA BR24L64F-WE2
IC2801 I03D979950 IC LA7995M-TLM
IC3401 I0GF95ZN10 IC PQ035ZN1HZPH
IC3402 I07F078200 IC BD7820FP-E2
IC3403 I57F035040 IC BD3504FVM
IC3404 I07F0C0WF0 IC BA00BC0WFP-E2
IC3405 I07F078200 IC BD7820FP-E2
IC3408 I07F078200 IC BD7820FP-E2
IC3601 IG1F090250 IC SII9025CTU
IC3602 S31B01EE03 MEMORY DATA BR24L02F-WE2
IC6601 IFSK035830 IC MST3583M-LF-110
*** TRANSISTORS ***
Q101 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK
Q102 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK
Q701 TAAA1504SY TRANSISTOR SILICON KTA1504S_Y_RTK
Q702 TAAA1504SY TRANSISTOR SILICON KTA1504S_Y_RTK
Q703 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q704 TAAA1504SY TRANSISTOR SILICON KTA1504S_Y_RTK
Q705 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q1001 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q1002 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK
Q1003 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q1004 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q1005 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q2401 T43A938000 FET 2SK393800L
Q2402 T43A938000 FET 2SK393800L
Q2403 T43A938000 FET 2SK393800L
Q2404 T43A938000 FET 2SK393800L
Q3401 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q3402 T77J011320 TRANSISTOR SILICON 2SB1132T100(Q,R)
Q3405 TJ7M65N030 FET RSS065N03FL16TB
Q3406 T77J011320 TRANSISTOR SILICON 2SB1132T100(Q,R)
Q3407 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
Q3408 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
Q3410 TJ7T35P030 FET RSQ035P03
Q3603 T43A938000 FET 2SK393800L
Q3604 T43A938000 FET 2SK393800L
Q3606 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q3618 T43A938000 FET 2SK393800L
Q4201 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q4202 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q4203 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q4205 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q4209 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q4210 T43A938000 FET 2SK393800L
Q4211 T43A938000 FET 2SK393800L
Q6601 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
*** COILS ***
B103 024HC51023 CORE,BEADS FCM1608KF-102T02
B104 024HC51023 CORE,BEADS FCM1608KF-102T02
B105 024HC51023 CORE,BEADS FCM1608KF-102T02
B109 024HC51023 CORE,BEADS FCM1608KF-102T02
B701 024HC51513 CORE,BEADS FCM1608KF-151T06
