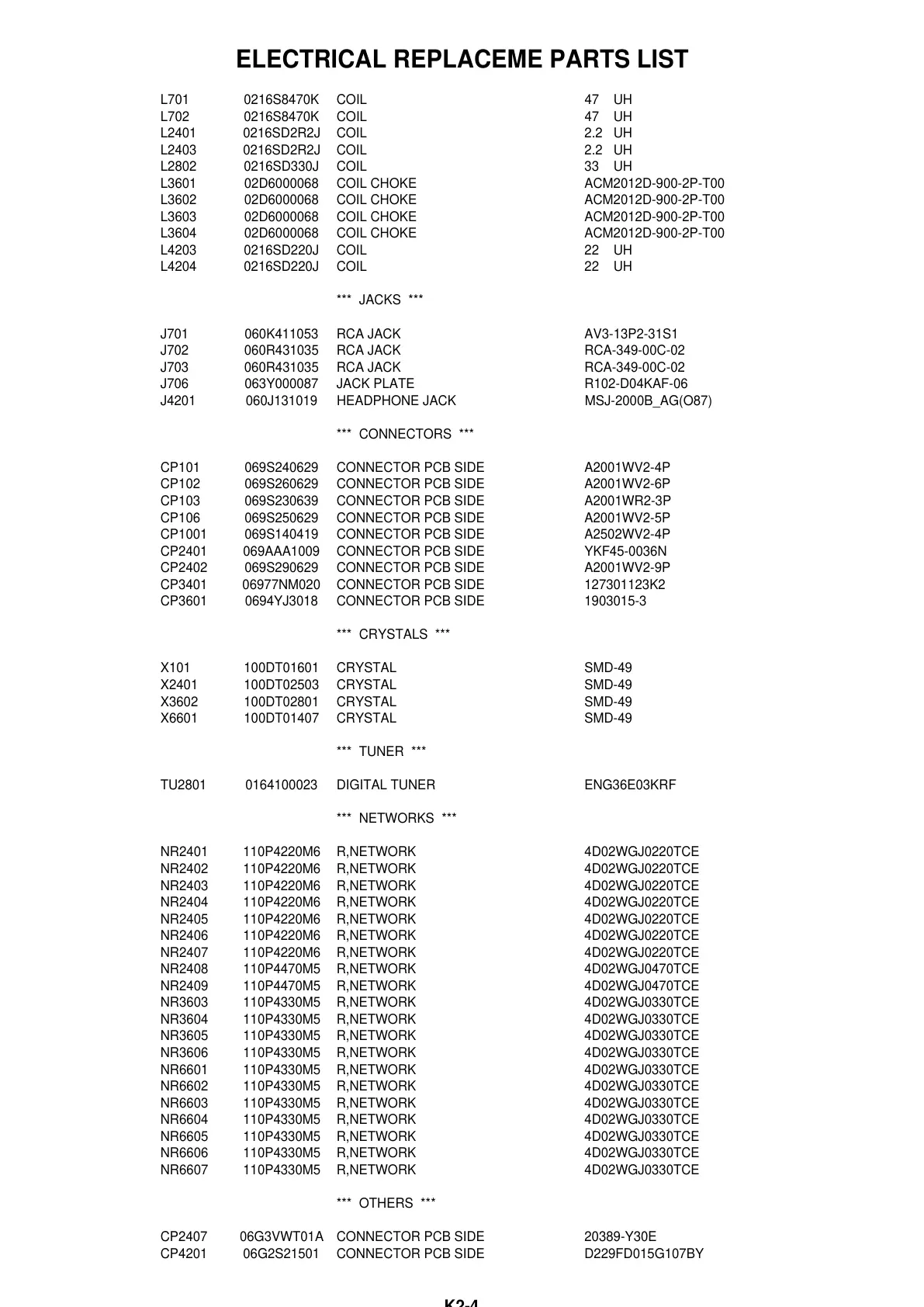

ELECTRICAL REPLACEME PARTS LIST
L701 0216S8470K COIL 47 UH
L702 0216S8470K COIL 47 UH
L2401 0216SD2R2J COIL 2.2 UH
L2403 0216SD2R2J COIL 2.2 UH
L2802 0216SD330J COIL 33 UH
L3601 02D6000068 COIL CHOKE ACM2012D-900-2P-T00
L3602 02D6000068 COIL CHOKE ACM2012D-900-2P-T00
L3603 02D6000068 COIL CHOKE ACM2012D-900-2P-T00
L3604 02D6000068 COIL CHOKE ACM2012D-900-2P-T00
L4203 0216SD220J COIL 22 UH
L4204 0216SD220J COIL 22 UH
*** JACKS ***
J701 060K411053 RCA JACK AV3-13P2-31S1
J702 060R431035 RCA JACK RCA-349-00C-02
J703 060R431035 RCA JACK RCA-349-00C-02
J706 063Y000087 JACK PLATE R102-D04KAF-06
J4201 060J131019 HEADPHONE JACK MSJ-2000B_AG(O87)
*** CONNECTORS ***
CP101 069S240629 CONNECTOR PCB SIDE A2001WV2-4P
CP102 069S260629 CONNECTOR PCB SIDE A2001WV2-6P
CP103 069S230639 CONNECTOR PCB SIDE A2001WR2-3P
CP106 069S250629 CONNECTOR PCB SIDE A2001WV2-5P
CP1001 069S140419 CONNECTOR PCB SIDE A2502WV2-4P
CP2401 069AAA1009 CONNECTOR PCB SIDE YKF45-0036N
CP2402 069S290629 CONNECTOR PCB SIDE A2001WV2-9P
CP3401 06977NM020 CONNECTOR PCB SIDE 127301123K2
CP3601 0694YJ3018 CONNECTOR PCB SIDE 1903015-3
*** CRYSTALS ***
X101 100DT01601 CRYSTAL SMD-49
X2401 100DT02503 CRYSTAL SMD-49
X3602 100DT02801 CRYSTAL SMD-49
X6601 100DT01407 CRYSTAL SMD-49
*** TUNER ***
TU2801 0164100023 DIGITAL TUNER ENG36E03KRF
*** NETWORKS ***
NR2401 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2402 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2403 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2404 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2405 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2406 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2407 110P4220M6 R,NETWORK 4D02WGJ0220TCE
NR2408 110P4470M5 R,NETWORK 4D02WGJ0470TCE
NR2409 110P4470M5 R,NETWORK 4D02WGJ0470TCE
NR3603 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR3604 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR3605 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR3606 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6601 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6602 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6603 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6604 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6605 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6606 110P4330M5 R,NETWORK 4D02WGJ0330TCE
NR6607 110P4330M5 R,NETWORK 4D02WGJ0330TCE
*** OTHERS ***
CP2407 06G3VWT01A CONNECTOR PCB SIDE 20389-Y30E
CP4201 06G2S21501 CONNECTOR PCB SIDE D229FD015G107BY
K2-4
