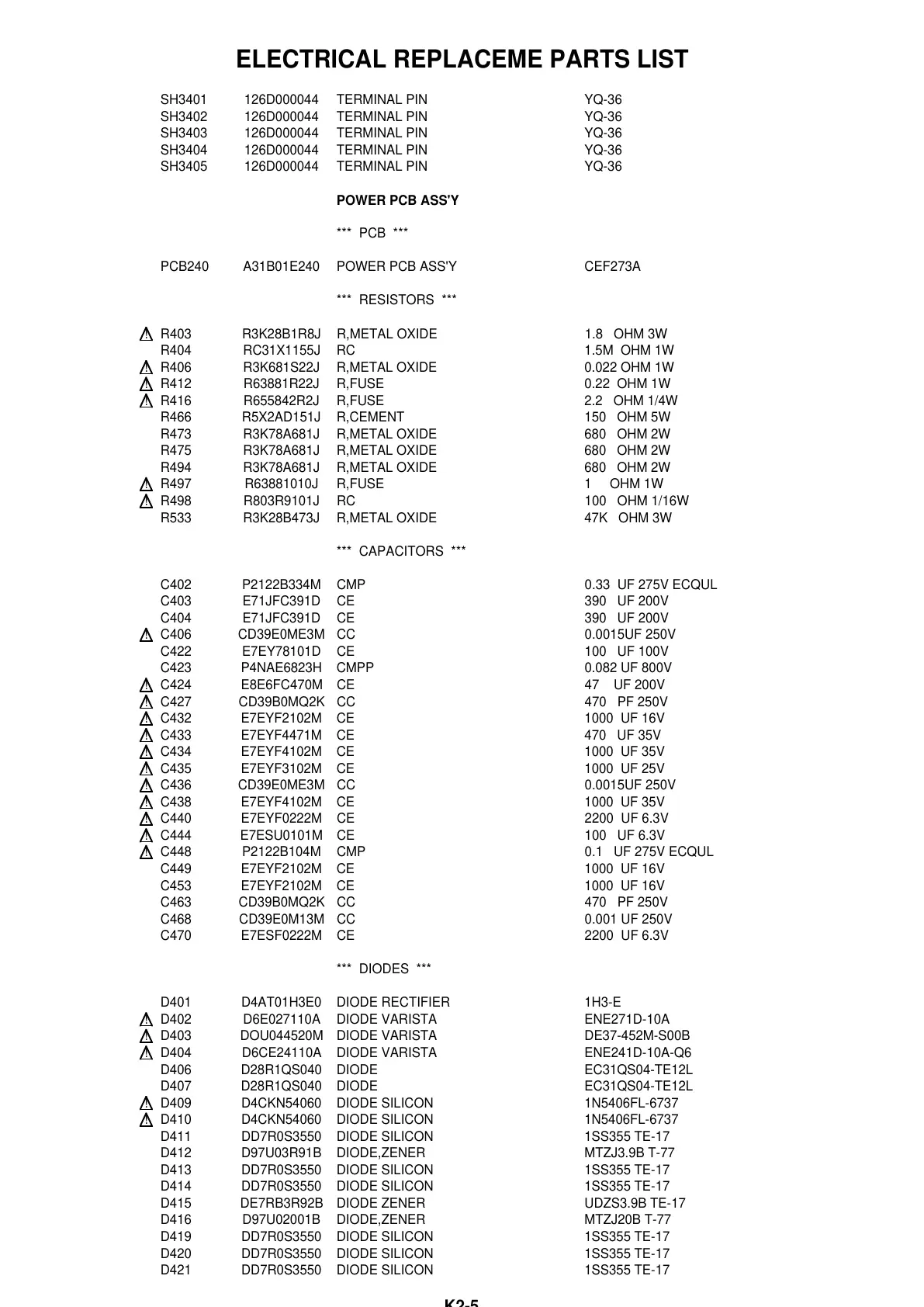

ELECTRICAL REPLACEME PARTS LIST
SH3401 126D000044 TERMINAL PIN YQ-36
SH3402 126D000044 TERMINAL PIN YQ-36
SH3403 126D000044 TERMINAL PIN YQ-36
SH3404 126D000044 TERMINAL PIN YQ-36
SH3405 126D000044 TERMINAL PIN YQ-36
POWER PCB ASS'Y
*** PCB ***
PCB240 A31B01E240 POWER PCB ASS'Y CEF273A
*** RESISTORS ***
! R403 R3K28B1R8J R,METAL OXIDE 1.8 OHM 3W
R404 RC31X1155J RC 1.5M OHM 1W
! R406 R3K681S22J R,METAL OXIDE 0.022 OHM 1W
! R412 R63881R22J R,FUSE 0.22 OHM 1W
! R416 R655842R2J R,FUSE 2.2 OHM 1/4W
R466 R5X2AD151J R,CEMENT 150 OHM 5W
R473 R3K78A681J R,METAL OXIDE 680 OHM 2W
R475 R3K78A681J R,METAL OXIDE 680 OHM 2W
R494 R3K78A681J R,METAL OXIDE 680 OHM 2W
! R497 R63881010J R,FUSE 1 OHM 1W
! R498 R803R9101J RC 100 OHM 1/16W
R533 R3K28B473J R,METAL OXIDE 47K OHM 3W
*** CAPACITORS ***
C402 P2122B334M CMP 0.33 UF 275V ECQUL
C403 E71JFC391D CE 390 UF 200V
C404 E71JFC391D CE 390 UF 200V
! C406 CD39E0ME3M CC 0.0015UF 250V
C422 E7EY78101D CE 100 UF 100V
C423 P4NAE6823H CMPP 0.082 UF 800V
! C424 E8E6FC470M CE 47 UF 200V
! C427 CD39B0MQ2K CC 470 PF 250V
! C432 E7EYF2102M CE 1000 UF 16V
! C433 E7EYF4471M CE 470 UF 35V
! C434 E7EYF4102M CE 1000 UF 35V
! C435 E7EYF3102M CE 1000 UF 25V
! C436 CD39E0ME3M CC 0.0015UF 250V
! C438 E7EYF4102M CE 1000 UF 35V
! C440 E7EYF0222M CE 2200 UF 6.3V
! C444 E7ESU0101M CE 100 UF 6.3V
! C448 P2122B104M CMP 0.1 UF 275V ECQUL
C449 E7EYF2102M CE 1000 UF 16V
C453 E7EYF2102M CE 1000 UF 16V
C463 CD39B0MQ2K CC 470 PF 250V
C468 CD39E0M13M CC 0.001 UF 250V
C470 E7ESF0222M CE 2200 UF 6.3V
*** DIODES ***
D401 D4AT01H3E0 DIODE RECTIFIER 1H3-E
! D402 D6E027110A DIODE VARISTA ENE271D-10A
! D403 DOU044520M DIODE VARISTA DE37-452M-S00B
! D404 D6CE24110A DIODE VARISTA ENE241D-10A-Q6
D406 D28R1QS040 DIODE EC31QS04-TE12L
D407 D28R1QS040 DIODE EC31QS04-TE12L
! D409 D4CKN54060 DIODE SILICON 1N5406FL-6737
! D410 D4CKN54060 DIODE SILICON 1N5406FL-6737
D411 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D412 D97U03R91B DIODE,ZENER MTZJ3.9B T-77
D413 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D414 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D415 DE7RB3R92B DIODE ZENER UDZS3.9B TE-17
D416 D97U02001B DIODE,ZENER MTZJ20B T-77
D419 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D420 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D421 DD7R0S3550 DIODE SILICON 1SS355 TE-17
K2-5
