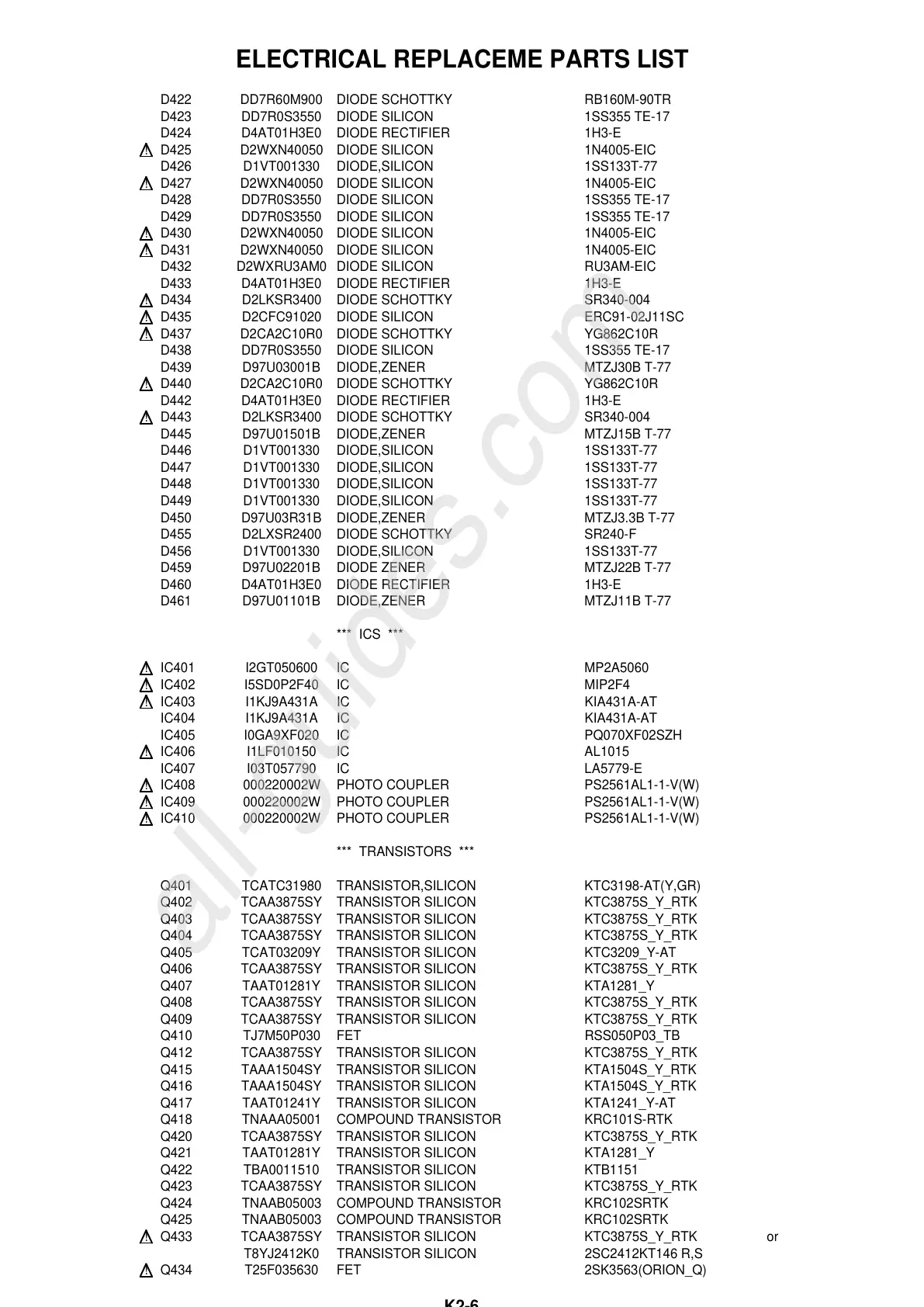

ELECTRICAL REPLACEME PARTS LIST
D422 DD7R60M900 DIODE SCHOTTKY RB160M-90TR
D423 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D424 D4AT01H3E0 DIODE RECTIFIER 1H3-E
! D425 D2WXN40050 DIODE SILICON 1N4005-EIC
D426 D1VT001330 DIODE,SILICON 1SS133T-77
! D427 D2WXN40050 DIODE SILICON 1N4005-EIC
D428 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D429 DD7R0S3550 DIODE SILICON 1SS355 TE-17
! D430 D2WXN40050 DIODE SILICON 1N4005-EIC
! D431 D2WXN40050 DIODE SILICON 1N4005-EIC
D432 D2WXRU3AM0 DIODE SILICON RU3AM-EIC
D433 D4AT01H3E0 DIODE RECTIFIER 1H3-E
! D434 D2LKSR3400 DIODE SCHOTTKY SR340-004
! D435 D2CFC91020 DIODE SILICON ERC91-02J11SC
! D437 D2CA2C10R0 DIODE SCHOTTKY YG862C10R
D438 DD7R0S3550 DIODE SILICON 1SS355 TE-17
D439 D97U03001B DIODE,ZENER MTZJ30B T-77
! D440 D2CA2C10R0 DIODE SCHOTTKY YG862C10R
D442 D4AT01H3E0 DIODE RECTIFIER 1H3-E
! D443 D2LKSR3400 DIODE SCHOTTKY SR340-004
D445 D97U01501B DIODE,ZENER MTZJ15B T-77
D446 D1VT001330 DIODE,SILICON 1SS133T-77
D447 D1VT001330 DIODE,SILICON 1SS133T-77
D448 D1VT001330 DIODE,SILICON 1SS133T-77
D449 D1VT001330 DIODE,SILICON 1SS133T-77
D450 D97U03R31B DIODE,ZENER MTZJ3.3B T-77
D455 D2LXSR2400 DIODE SCHOTTKY SR240-F
D456 D1VT001330 DIODE,SILICON 1SS133T-77
D459 D97U02201B DIODE ZENER MTZJ22B T-77
D460 D4AT01H3E0 DIODE RECTIFIER 1H3-E
D461 D97U01101B DIODE,ZENER MTZJ11B T-77
*** ICS ***
! IC401 I2GT050600 IC MP2A5060
! IC402 I5SD0P2F40 IC MIP2F4
! IC403 I1KJ9A431A IC KIA431A-AT
IC404 I1KJ9A431A IC KIA431A-AT
IC405 I0GA9XF020 IC PQ070XF02SZH
! IC406 I1LF010150 IC AL1015
IC407 I03T057790 IC LA5779-E
! IC408 000220002W PHOTO COUPLER PS2561AL1-1-V(W)
! IC409 000220002W PHOTO COUPLER PS2561AL1-1-V(W)
! IC410 000220002W PHOTO COUPLER PS2561AL1-1-V(W)
*** TRANSISTORS ***
Q401 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q402 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q403 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q404 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q405 TCAT03209Y TRANSISTOR SILICON KTC3209_Y-AT
Q406 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q407 TAAT01281Y TRANSISTOR SILICON KTA1281_Y
Q408 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q409 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q410 TJ7M50P030 FET RSS050P03_TB
Q412 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q415 TAAA1504SY TRANSISTOR SILICON KTA1504S_Y_RTK
Q416 TAAA1504SY TRANSISTOR SILICON KTA1504S_Y_RTK
Q417 TAAT01241Y TRANSISTOR SILICON KTA1241_Y-AT
Q418 TNAAA05001 COMPOUND TRANSISTOR KRC101S-RTK
Q420 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q421 TAAT01281Y TRANSISTOR SILICON KTA1281_Y
Q422 TBA0011510 TRANSISTOR SILICON KTB1151
Q423 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK
Q424 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
Q425 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
! Q433 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK or
T8YJ2412K0 TRANSISTOR SILICON 2SC2412KT146 R,S
! Q434 T25F035630 FET 2SK3563(ORION_Q)
K2-6
