Sharp LC-26SH12U User Manual

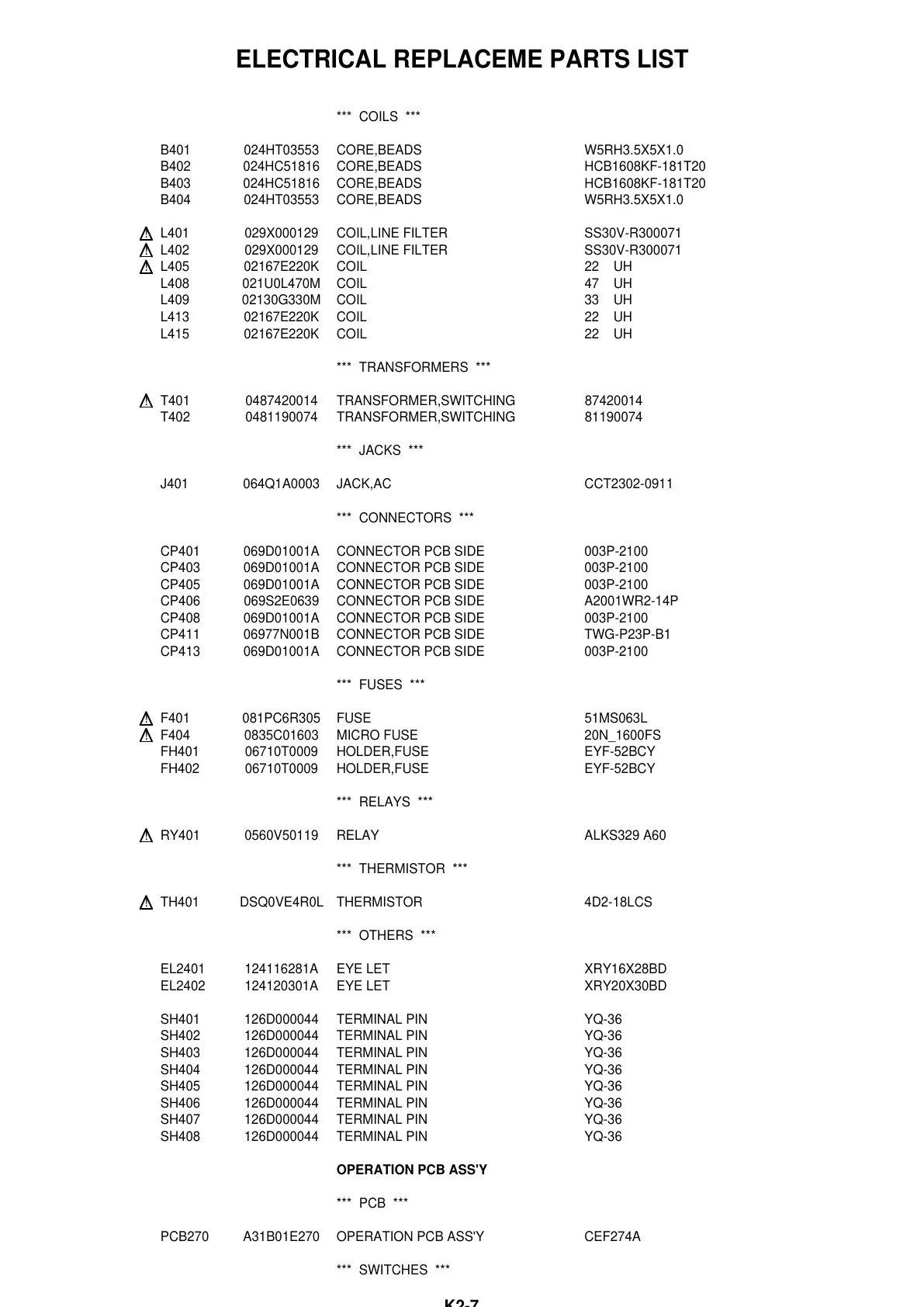

ELECTRICAL REPLACEME PARTS LIST
*** COILS ***
B401 024HT03553 CORE,BEADS W5RH3.5X5X1.0
B402 024HC51816 CORE,BEADS HCB1608KF-181T20
B403 024HC51816 CORE,BEADS HCB1608KF-181T20
B404 024HT03553 CORE,BEADS W5RH3.5X5X1.0
! L401 029X000129 COIL,LINE FILTER SS30V-R300071
! L402 029X000129 COIL,LINE FILTER SS30V-R300071
! L405 02167E220K COIL 22 UH
L408 021U0L470M COIL 47 UH
L409 02130G330M COIL 33 UH
L413 02167E220K COIL 22 UH
L415 02167E220K COIL 22 UH
*** TRANSFORMERS ***
! T401 0487420014 TRANSFORMER,SWITCHING 87420014
T402 0481190074 TRANSFORMER,SWITCHING 81190074
*** JACKS ***
J401 064Q1A0003 JACK,AC CCT2302-0911
*** CONNECTORS ***
CP401 069D01001A CONNECTOR PCB SIDE 003P-2100
CP403 069D01001A CONNECTOR PCB SIDE 003P-2100
CP405 069D01001A CONNECTOR PCB SIDE 003P-2100
CP406 069S2E0639 CONNECTOR PCB SIDE A2001WR2-14P
CP408 069D01001A CONNECTOR PCB SIDE 003P-2100
CP411 06977N001B CONNECTOR PCB SIDE TWG-P23P-B1
CP413 069D01001A CONNECTOR PCB SIDE 003P-2100
*** FUSES ***
! F401 081PC6R305 FUSE 51MS063L
! F404 0835C01603 MICRO FUSE 20N_1600FS
FH401 06710T0009 HOLDER,FUSE EYF-52BCY
FH402 06710T0009 HOLDER,FUSE EYF-52BCY
*** RELAYS ***
! RY401 0560V50119 RELAY ALKS329 A60
*** THERMISTOR ***
! TH401 DSQ0VE4R0L THERMISTOR 4D2-18LCS
*** OTHERS ***
EL2401 124116281A EYE LET XRY16X28BD
EL2402 124120301A EYE LET XRY20X30BD
SH401 126D000044 TERMINAL PIN YQ-36
SH402 126D000044 TERMINAL PIN YQ-36
SH403 126D000044 TERMINAL PIN YQ-36
SH404 126D000044 TERMINAL PIN YQ-36
SH405 126D000044 TERMINAL PIN YQ-36
SH406 126D000044 TERMINAL PIN YQ-36
SH407 126D000044 TERMINAL PIN YQ-36
SH408 126D000044 TERMINAL PIN YQ-36
OPERATION PCB ASS'Y
*** PCB ***
PCB270 A31B01E270 OPERATION PCB ASS'Y CEF274A
*** SWITCHES ***
K2-7
