Sharp LC-26SH7E/RU

2008-03-14
LC-19SH7E/RU, LC-26SH7E/RU, LC-32SH7E/RU, LC-42SH7E/RU
111

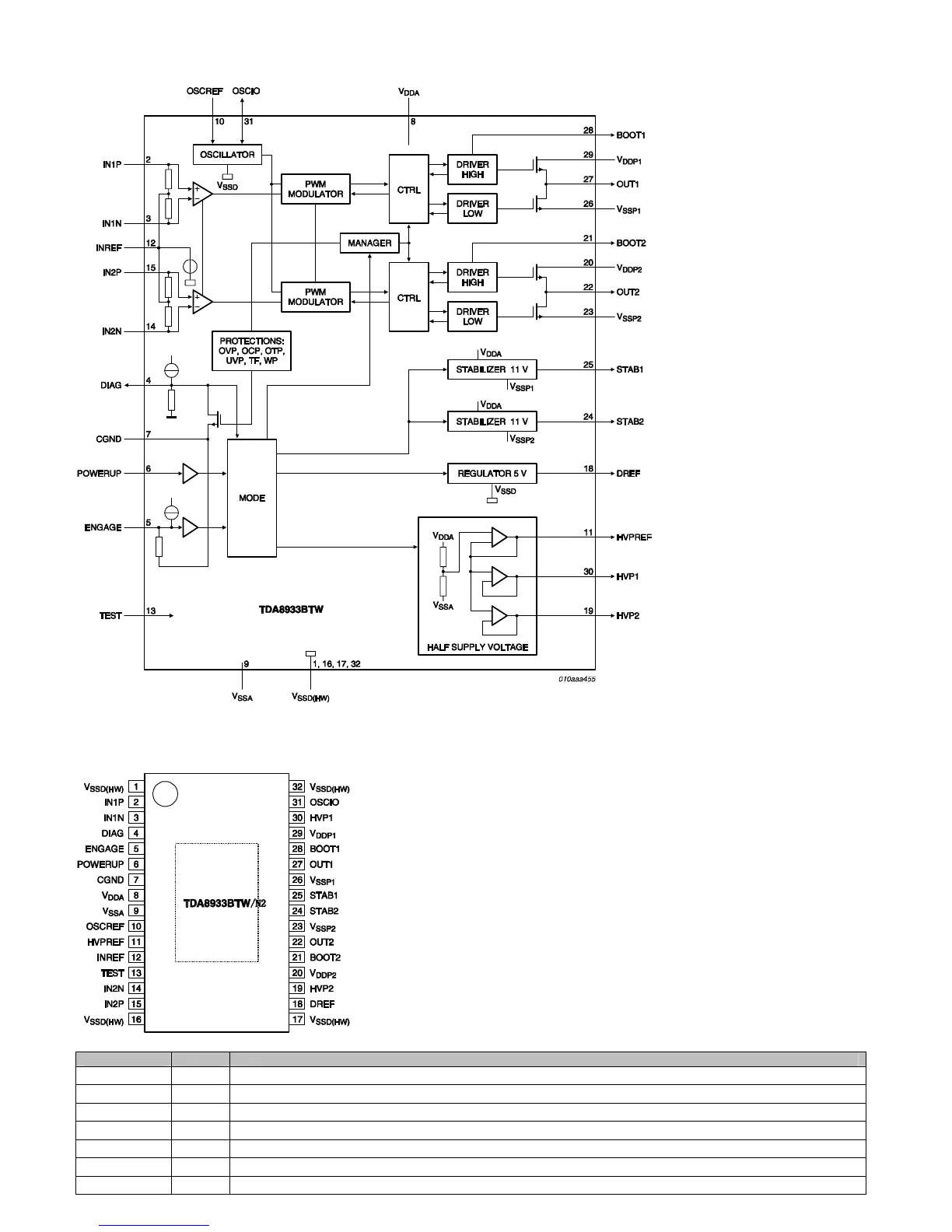

2.5. U600 (TDA8933BTW HTSSOP32)
2.5.1 Block Diagram
2.5.2 Pin Connections and short description
Symbol Pin Description
VSSD(HW)
1
negative digital supply voltage and handle wafer connection
IN1P
2
positive audio input for channel 1
IN1N
3
negative audio input for channel 1
DIAG
4
diagnostic output; open-drain
ENGAGE
5
engage input to switch between Mute mode and Operating mode
POWERUP
6
power-up input to switch between Sleep mode and Mute mode
CGND
7
control ground; reference for POWERUP, ENGAGE and DIAG
/N2
