LC-32D41U/LC-32M41U/LC-40C32U
4 – 2

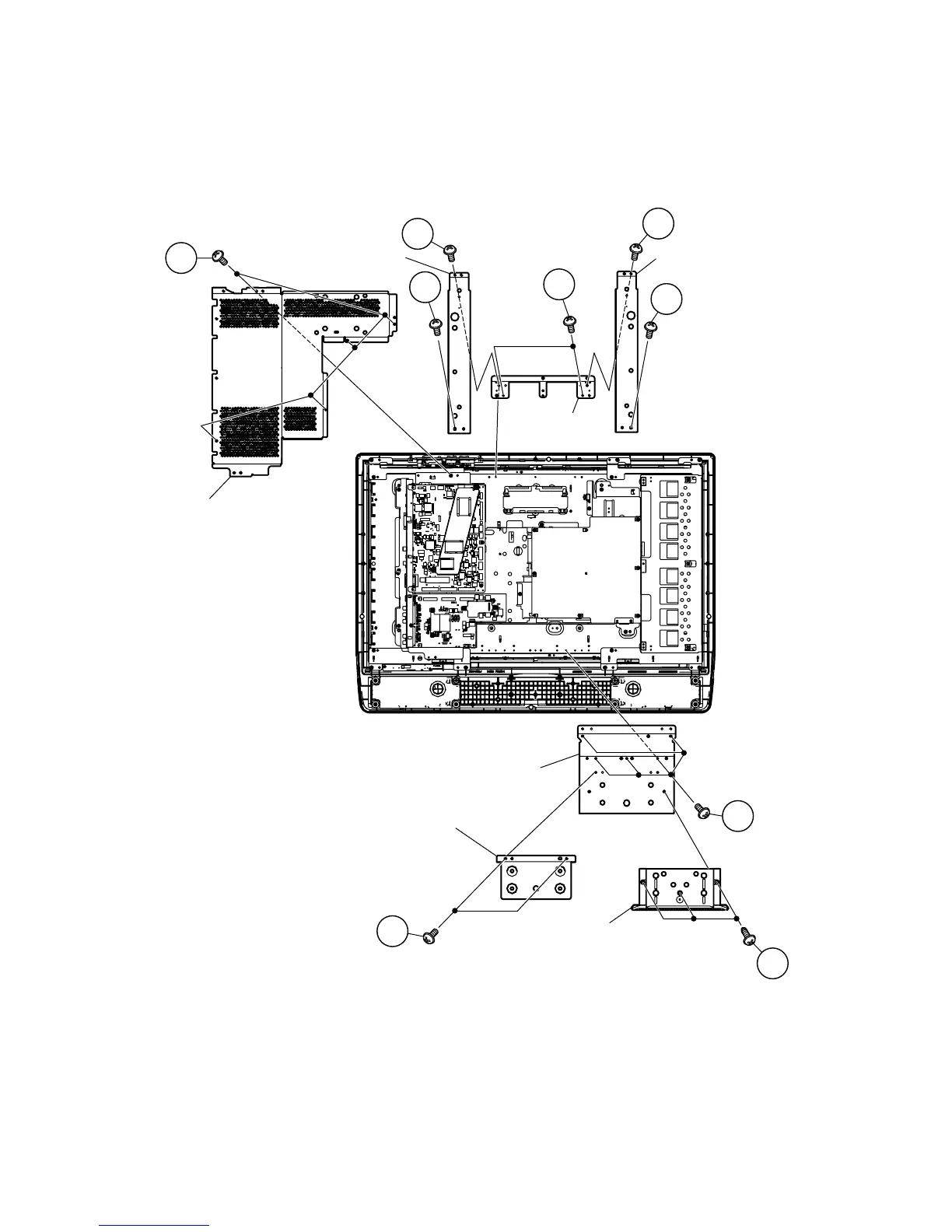

4. Remove the 2 lock screws and detach the Stand Assist Angle.
5. Remove the 4 lock screws and detach the Center Angle-L and R.
6. Remove the 3 lock screws and detach the Stand Cover.
7. Remove the 5 lock screws and detach the Stand Fix Angle.
8. Remove the 2 lock screws and detach the Center Assist Angle.
9. Remove the 5 lock screws and detach the MAIN Shield.
Center Angle-L
Center Angle-R
MAIN Shield
Stand Cover
Stand Fix Angle
Stand Assist Angle
Center Assist
Angle
6
4
7
5
5
8
9
5
5
