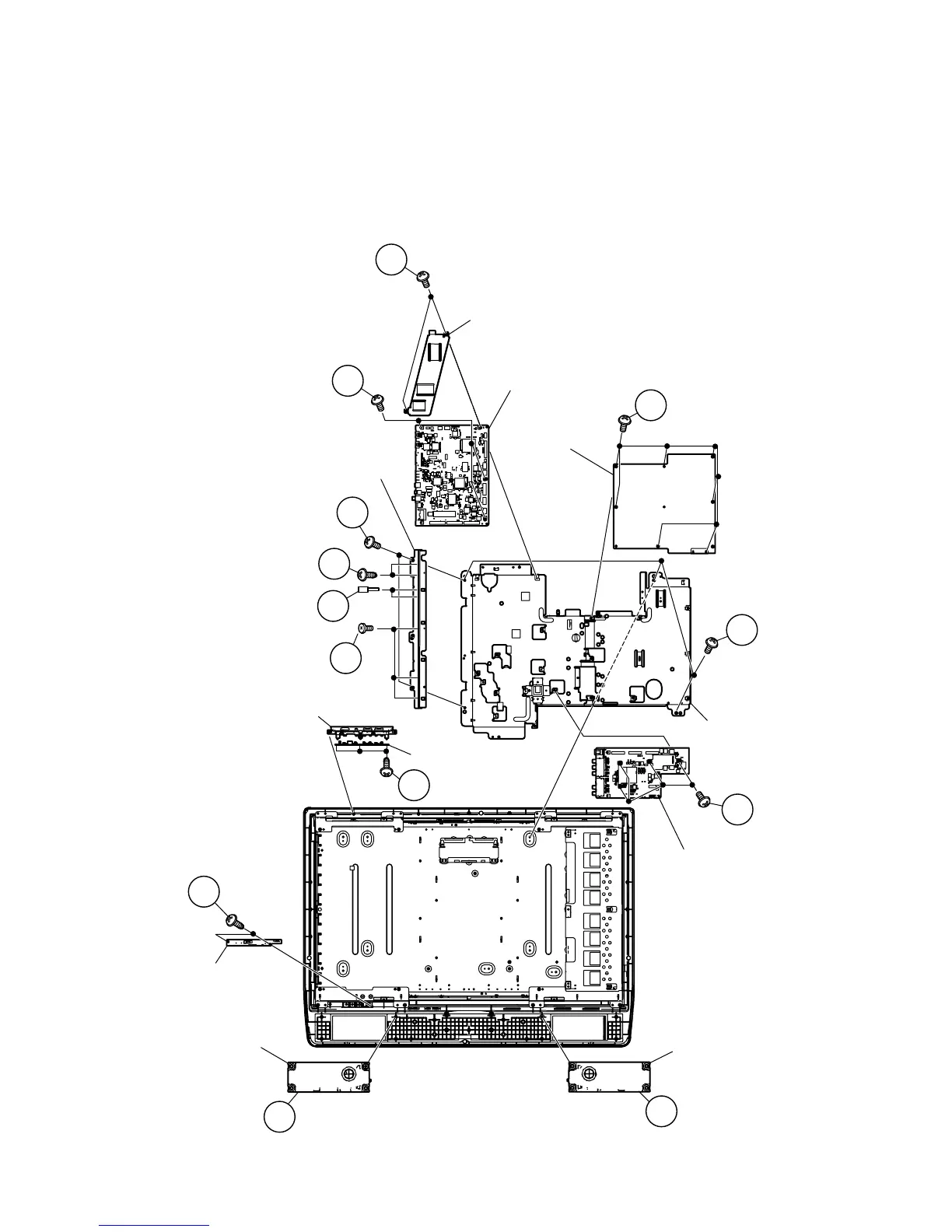

11. Remove the Speaker-L and R.
12.Remove the 2 lock screws and detach the R/C, LED Unit.
13.Remove the Top Cover Ass'y. Remove the 3 lock screws from the Top Cover Ass'y and detach the KEY Unit.
14.Remove the 4 lock screws and detach the Tray Chassis.
15.Remove the 7 lock screws and detach the Jack Angle Long.
16.Remove the 7 lock screws and detach the POWER Unit.
17.Remove the 4 lock screws and detach the IF Unit.
18.Remove the 2 lock screws, 3 lock screws and detach the MAIN PWB Radiator and MAIN Unit.
Jack Angle Long
Tray Chassis
MAIN Unit
POWER Unit
IF Unit
14
15
15
15
16
18
18
14
17
13
12
11
11
MAIN PWB Radiator
Speaker-R
R/C, LED Unit
Speaker-L
Top Cover Ass'y
KEY Unit
