LC-32D62U/LC-37D62U 1st
4 – 5

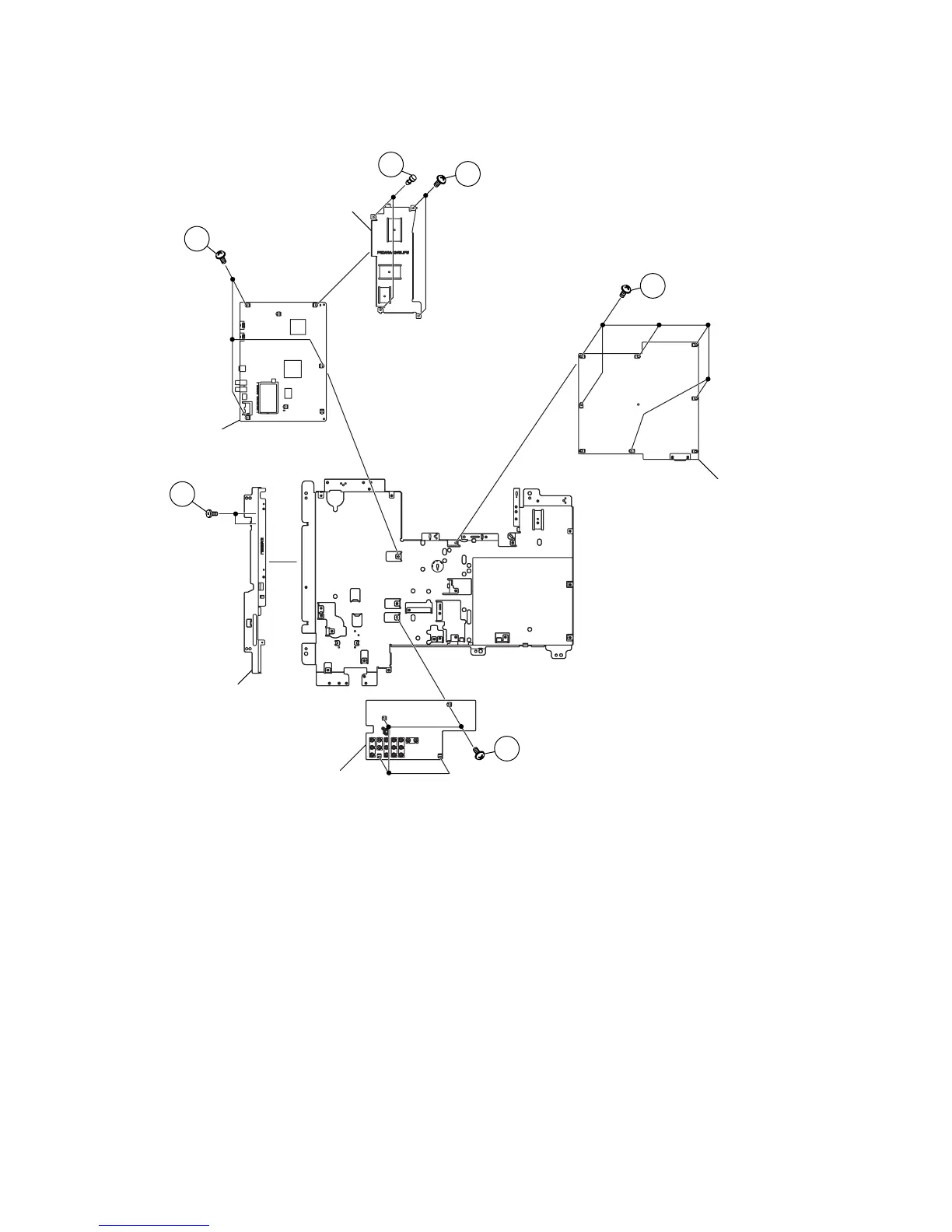

14.Remove the 2 lock screws and detach the Jack Angle.
15.Remove the 6 lock screws and detach the POWER Unit.
16.Remove the 4 lock screws and detach the TERMINAL Unit.
17.Remove the 5 lock screws, 2 lock rivets and detach the MAIN PWB Radiator and MAIN Unit.
MAIN Unit
POWER Unit
TERMINAL Unit
MAIN PWB Radiator
Jack Angle
15
17
17
17
16
14
