LC-32DH65E/S, LC-37DH65E/S
29
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[10] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] LCD PANEL MODULE ASSEMBLY (LC-37DH65E/S)
1 CCHSMA478WJ01 BG N P Back Light Chassis Ass'y
2 CANGK4053TP02 AX J Bezel Ass'y (Top)
3 CANGK4053TP01 AS J Bezel Ass'y (Bottom)
4 CANGK4052TP01 AL J Bezel Ass'y, x2 (Left/Right)
5 CHLDZ3805TP03 AV J Panel Chassis Ass'y (Top)
6 CHLDZ3806TP03 AU J Panel Chassis Ass'y (Bottom)
7 CHLDZ3807TP03 AS J Panel Chassis Ass'y (Left)
8 CHLDZ3808TP03 AS J Panel Chassis Ass'y (Right)
9 CPWBX4010TPXB BN N J LCD Control PWB Unit
10 LHLDZB166WJKZ AL N P Lamp Holder (L)
11 LHLDZB167WJKZ AM N P Lamp Holder (R)
12 LX-BZ2312TPZZ AB J Screw, x8 (M3*3.2 Bezel)
13 LX-EZA028WJF9 AB J Screw, x6 (Panel Chassis)
14 LX-HZA042WJF8 AB J Screw, x12 (M3X18BL-Bezel)
15 PCOVUA122WJZZ BD J Diffusion Plate
16 PCOVWA018WJKZ AM N P SJ Connector Cover
17 PCOVWA024WJKZ AK N P SJ Connector Cover 2
19 PSHEPA691WJZZ BC J Lens Sheet, x2
21 PSLDMB419WJFW AE N J LCD Control PWB Cover
22 QPWBM0575TPZZ AN J CS-FPC 80pin, x2
23 QSOCFA003WJZZ AD J Lamp Socket, x16
24 RCORFA061WJZZ AG J Ferrite Core, x4
25 RLMP-0664TPZZ AQ J Lamp Unit, x16
26 RUNTK3841TPZZ AN J GND-PWB1
27 RUNTK3842TPZZ AN J GND-PWB2
28 XHPS730P04WS0 AA N J Screw, x11 (SJ COVER/CONT PWB)
29 XHPS730P08KS0 AB J Screw, x4 (M3X8 GND PWB)

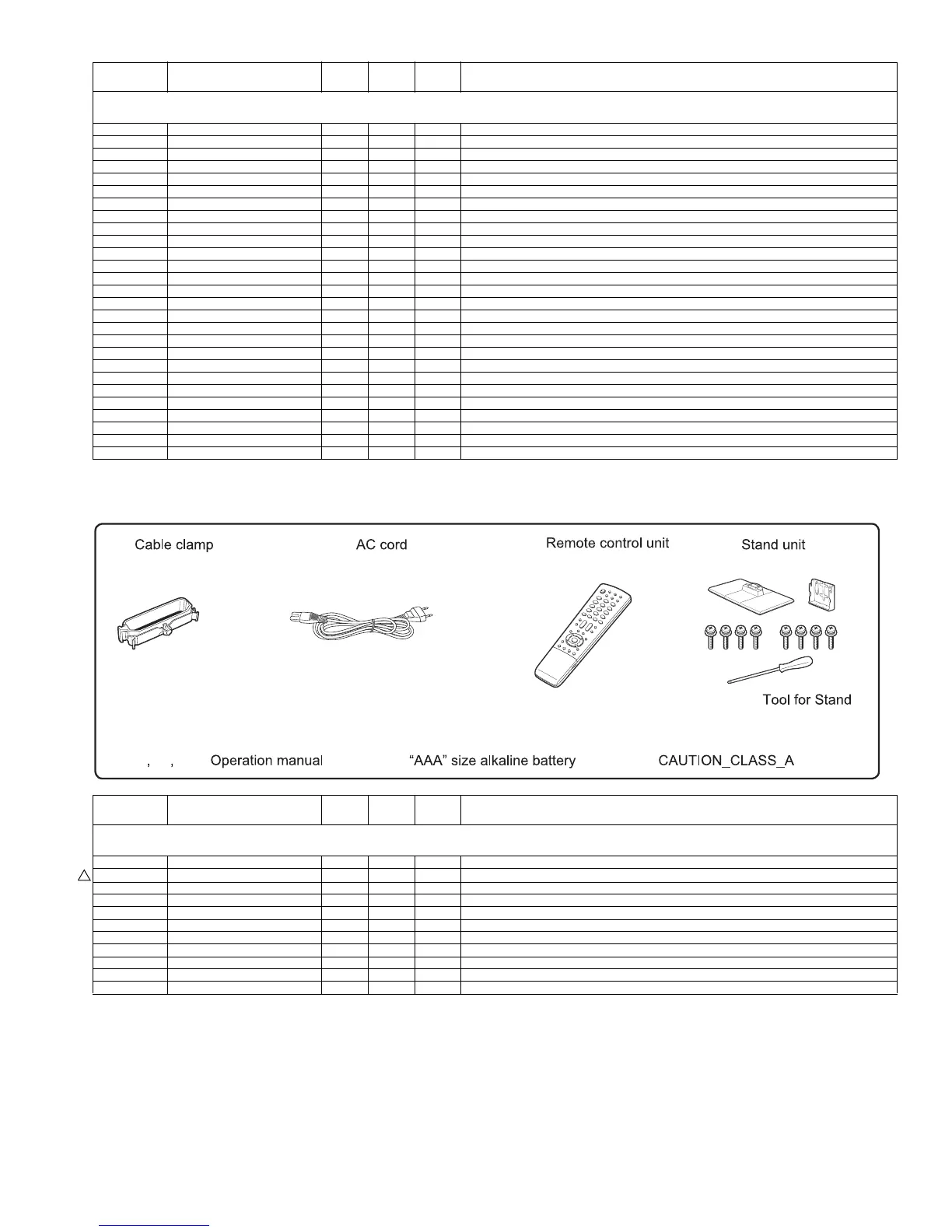

[10] SUPPLIED ACCESSORIES
X1 LHLDWA173WJKZ AE J Cable Clamp
!
X2 QACCKA004WJPZ AM J AC Cord 2Pin (for EUROPE without U.K. and Ireland)
X3 RRMCGA586WJSA AS S Remote Control unit
X4 TINS-D717WJZZ AQ N S Operation Manual (ENGLISH...)
X5 TINS-D718WJZZ AQ N S Operation Manual (SWEDISH...) (LC-32/37DH65S)
X6 TINS-D719WJZZ AR N S Operation Manual (POLISH...) (LC-32/37DH65E)
X11 --N-"AAA" size battery
X12 CDAI-A482WJ02 BC N S Stand Unit (LC-32DH65E/S)
X12 CDAI-A484WJ02 BD N S Stand Unit (LC-37DH65E/S)
X12-1 --N-Tool for Stand
X13 TCAUZA354WJZZ AB N S CAUTION_CLASS_A
X3
X2 X12
X12-1
X1
X4 X5 X6 X11 X13
Product shape varies in some countries.
