Sharp LC-32DH65E User Manual

LC-32DH65E/S, LC-37DH65E/S
2 – 2

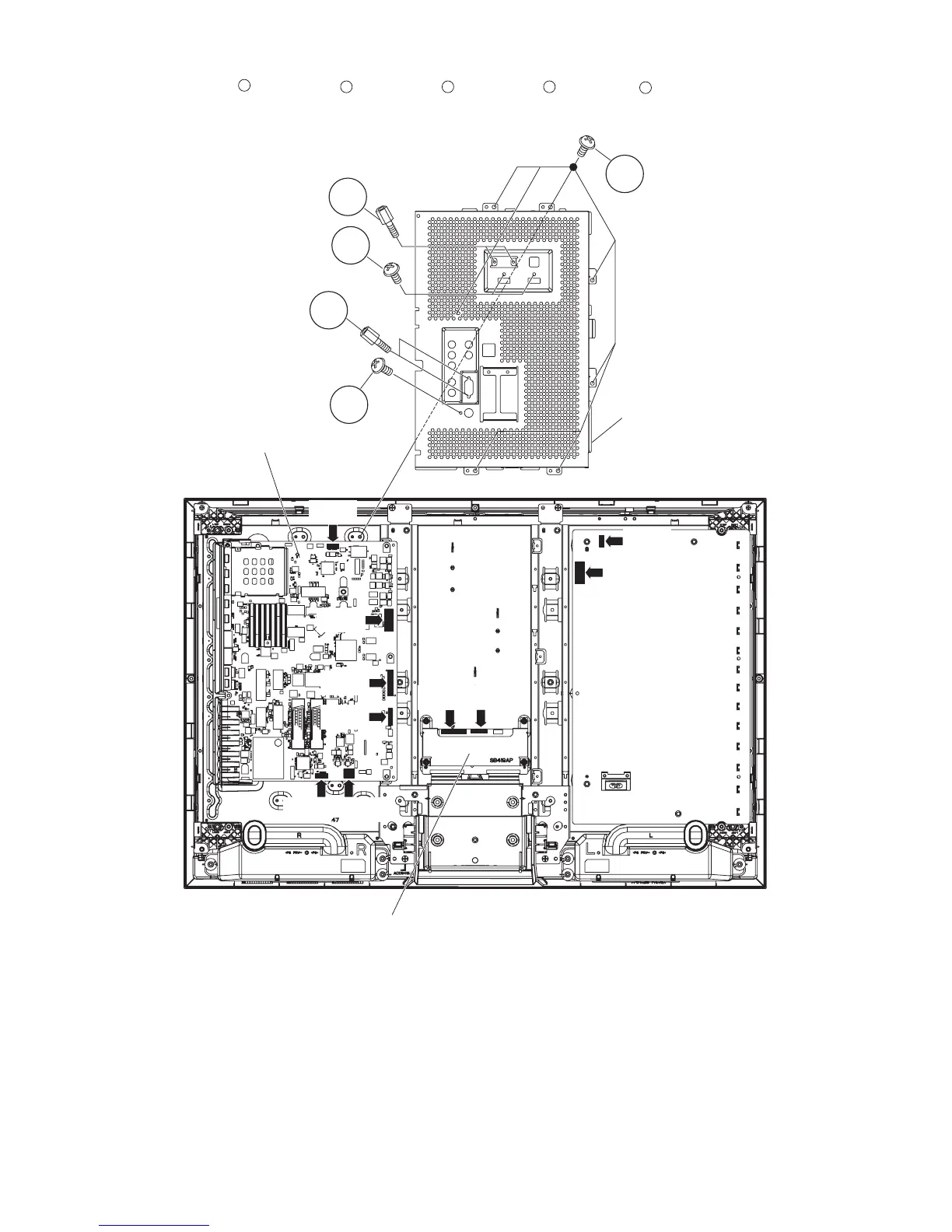

3. Remove the 7 lock screws , 2 lock screws , 2 lock screws , 2 lock screws , 1 lock screw and detach the Full Shield.
4. Disconnect all the connectors from all the PWBs.
1
2 3 4
5
Full Shield
MAIN Unit
LCD Control Unit
POWER/
INVERTER
Unit
1
2
3
4
5
[LB]
[SP][RA]
[LP]
[LW]
[LB]
[PD]
[PD]
[LW]
[LP]
