LC-32DH77E, LC-32DH77S:
Confirm that there are eight screws with the
stand unit.
Attach the supporting post for the stand unit
onto the base using the four screws with the
screw driver (supplied) as shown.
Inserting the stand.
Insert the stand into the openings on the
bottom of the TV (Hold the stand so it will
not drop from the edge of the base area).
Insert and tighten the four screws into the
four holes on the rear of the TV.
1
2
NOTE
To detach the stand unit, perform the steps in reverse
order.
1
2
3
1
2
•

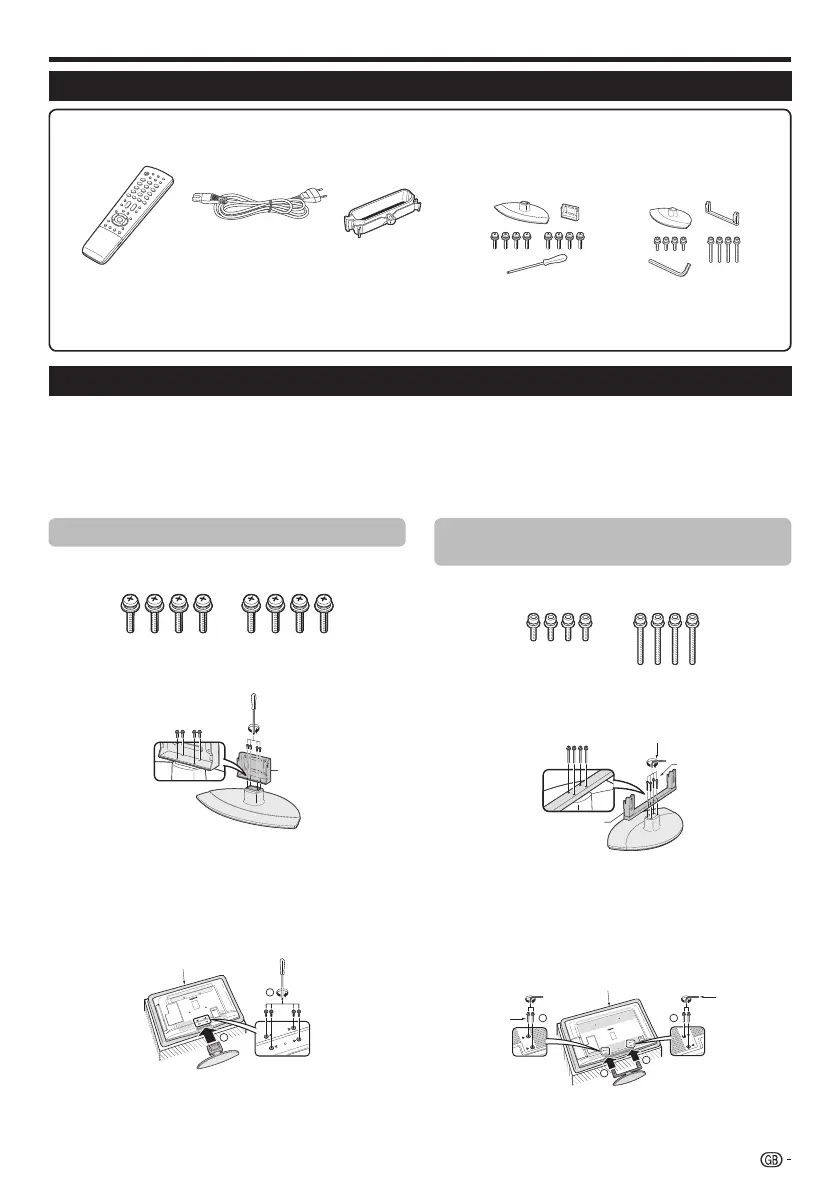

Preparation
Supplied accessories
Attaching the stand unit
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being
damaged.
CAUTION
Attach the stand in the correct direction.
Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
•
•
•
•
LC-42DH77E, LC-42DH77S/LC-46DH77E,
LC-46DH77S/LC-52DH77E, LC-52DH77S:
Confirm that there are eight screws (four short
screws and four long screws) with the stand unit.
Attach the supporting post for the stand unit
onto the base using the four long screws with
the hex key (supplied) as shown.
Inserting the stand.
Insert the stand into the openings on the
bottom of the TV (Hold the stand so it will
not drop from the edge of the base area).
Insert and tighten the four short screws into
the four holes on the rear of the TV.
1
1
2 2
NOTE
To detach the stand unit, perform the steps in reverse
order.
1
2
3
1
2
•
Supporting
post
Soft cushion
Long screw
Hex key
Hex key
Soft cushion
Short screw
5
Remote control unit
(g1)
AC cord (g1) Stand unit (g1)
Cable clamp (g1)
Pages 3 and 6 Page 5
Page 8Page 8
Operation manual (This publication)•
“AAA” size zinc-carbon battery (g2) ... Page 6•
Product shape varies in
some countries.
Supporting
post
LC-32DH77E, LC-32DH77S• LC-42DH77E, LC-42DH77S/
LC-46DH77E, LC-46DH77S/
LC-52DH77E, LC-52HD77S
•
To Next Page
