Sharp LC-32LB261U Service Manual

32″&42″&50″LCD TV Best Buy LC-32LB261U- LC-42LB261U- LC-50LB261U
76

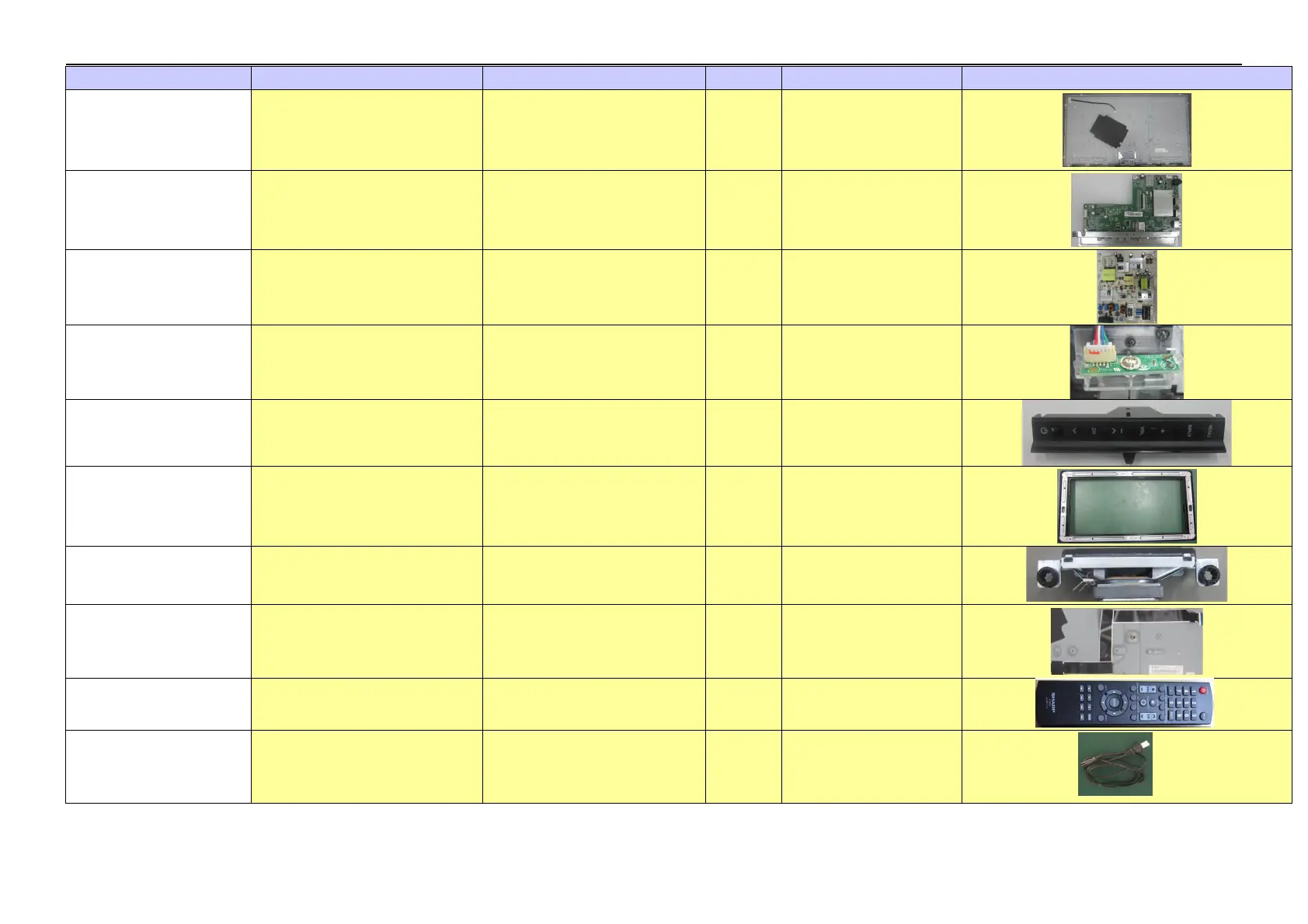

Part description Part Number
function GW DM picture
Panels - 32" to 50"
Class (include both
PNs - SI & panel mfg)
LCA500HVN08AC3250X
(LC-50LB261U)
Display image 9.8KG 1095.84x 616.41mm
Main Board
756TXECB01K009000X
(CBPFE3SKX5)
Main TV Control PCB 212G 125x 193mm
Power Board - 32" &
Over
PLTVDV751XXPR provide power to TV 300G 241x195.5mm
IR Board
IRPFCAB4 Receive remote signal 1.8 G 35x9mm
Key / Button Board
KEPFEXA3
Control TV power on, input,
Volume and channel
6G 12x114.5mm
Stand Kit (Base,Neck&
AllScrews)
Must include all parts in
one part number kit
705TXECS034451 TV base to hold TV 767G 598.7x310mm
Speaker Pair/Kit (Left
and Right with wires)
378G0110567YDG Provide sound 125G 132x34mm
FFC Cable
395G179E51HC06
Communicate main board to
panel
12G 600mm
Remote
398GRABD1NESPT Remote TV 76.2G 189.8x48x26.5mm
Power Cord or Power
Adapter - Separate
(enter PN to see qtys)
389G202A15NJRE
Plug to wall AC power outlet
to TV
88G 1600mm

Sharp LC-32LB261U Specifications

General

Screen Type	led
Wall Mount	100mm x 100mm
Screen Size	31.5 inches, 32 inches
Refresh Rate	60hz
Brightness	180 candela per square meter
Speakers Output	10 watts
USB Ports	1
RF Antenna	yes
Headphones Output	yes
Digital Optical Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	1
3D	no
Power Consumption	81 kilowatt hours
Depth with Stand	6.5 inches
Height with Stand	18.38 inches
Width with Stand	28.63 inches
Net Weight with Stand	11.3 pounds
Depth without Stand	2.5 inches
Height without Stand	17.13 inches
Net Weight without Stand	10.6 pounds
