Sharp LC-32LE240M - LCD Panel Unit Component Removal

LC-32LE240M/340M(1stEdition)
3 – 5

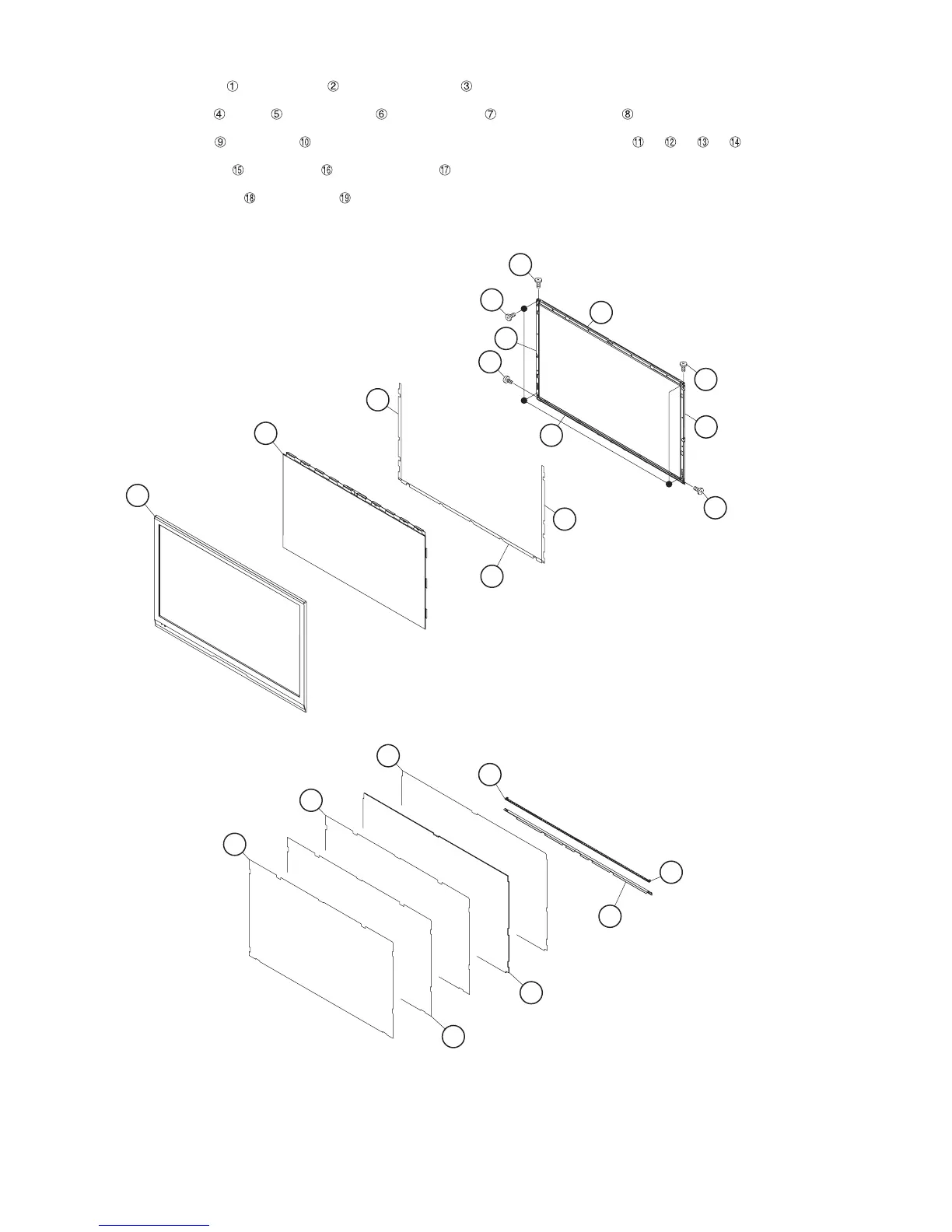

5. Removing LCD Panel Unit
1. Detach the LED PWB-A , LED PWB-B and Heat Spreader .
2. Detach the Reflection , LGP , Lens sheet V , Lens sheet H and Diffusion Sheet .
3. Remove the 4 screws , 4 screws and detach the bezel Ass’y (Top) (Bottom) (Left) (Right) , , , .
4. Detach the bottom Sheet , Left Sheet and Right Sheet .
5. Detach the LCD Panel Unit from CAB-A .
16
17
15
9
14
12
9
11
9
10
9
13
19
18
7
5
3
4
6
8Diffusion Sheet
Lens Sheet V
Reflection
Heat Spreader
1 LED PWB-A
2 LED PWB-B
CAB-A Ass'y
LCD Panel Unit
Left Sheet
Right Sheet
Bezel Ass'y (Right)
Bezel Ass'y (Top)
Bezel Ass'y (Bottom)
Bezel Ass'y (Left)
Bottom Sheet
Lens Sheet H
LGP
