LC-32/40/46LE705E/S, LU705E/S, LX705E, LC-52LE705E/S
1 – 7

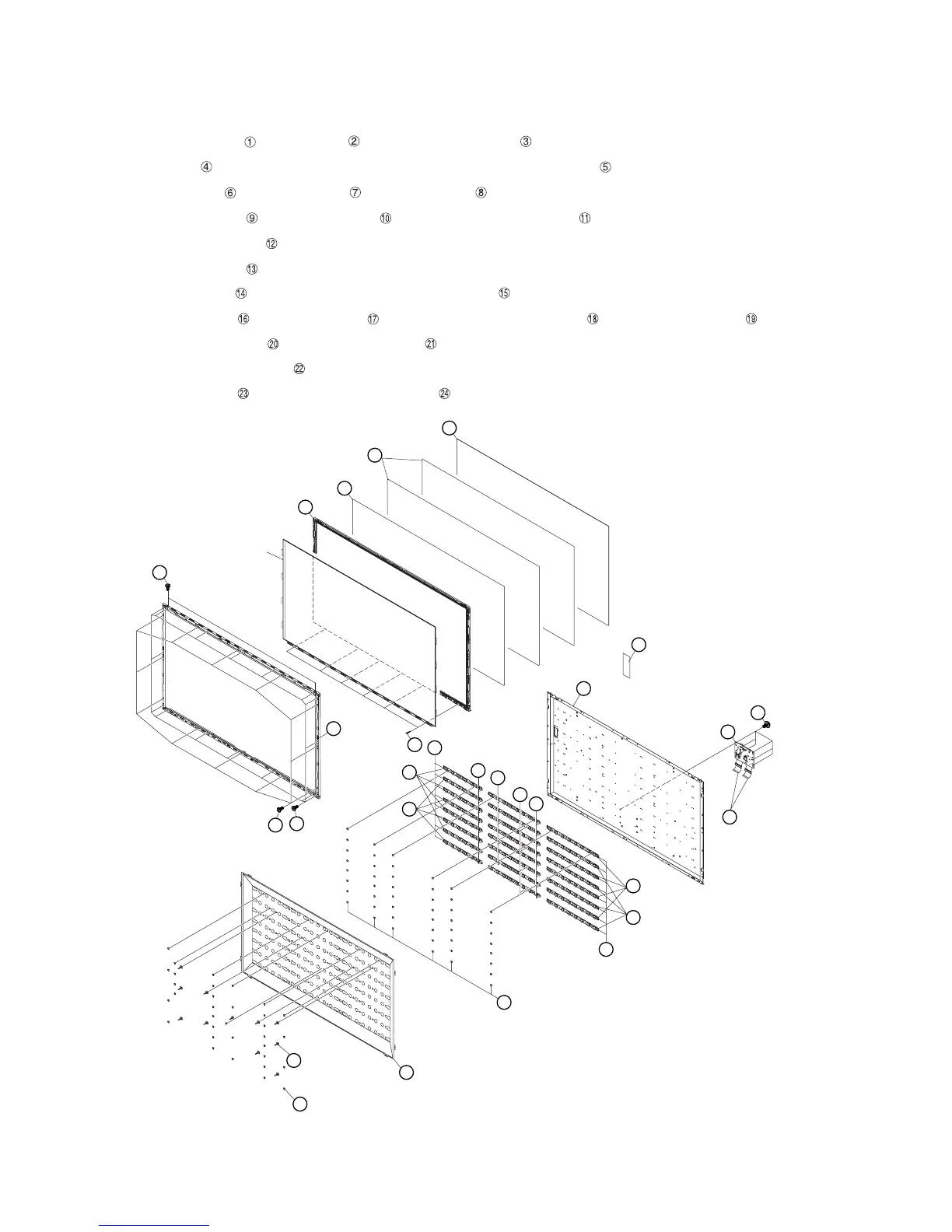

7. Removing of Bezel Ass’y, Panel Chassis Ass’y, Lens Sheet, Diffusion Plate, Back Light Chassis and LCD
Control Unit (52 inch models).
NOTE: A clean booth is required for repair of the component units and/ or parts (LCD Panel HIRAKI, LED PWB etc.) inside the LCD panel module
unit.
1. Remove the 12 lock screws ,18 lock screws and detach the Bezel Ass’y .
2. Remove the 6 Clips and detach the 52” LCD Panel HIRAKI Unit and Panel Chassis Ass’y .
3. Detach the DBEF Sheet and 2 Lens Sheets and Diffusion Plate .
4. Remove the 33 Push Rivets and 11 Support Pins and detach the Reflection Sheet .
5. Detach the 2 Connection Cords .
6. Remove the 48 Push Rivets .
7. Detach the Bush Cap Unit and connecting cords from the 8 connectors of the LED6-PWB1/2 Unit.
8. Remove the 8 Terminators and 16 connections and detach the 8 LED8-PWB1 Units and 8 LED8-PWB2 Units .
9. Detach the 4 LED6-PWB1 Units and 4 LED6-PWB2 Units .
10.Detach the Back Light Chassis Ass’y .
11.Remove the 6 lock screws and detach the LCD Control Unit .
17
17
2
1
2
4
19
18
16
15
19
21
18
20
3 Bezel Ass'y
52" LCD Panel HIRAKI Unit
Clip
Panel Chassis Ass'y 5
DBEF Sheet 6
Lens Sheet 7
Diffusion Plate 8
Support Pin10
Push Rivet9
Reflection Sheet11
13
22 Back Light Chassis Ass'y
24
LCD Control Unit
12 Connecting Cord
23
14 Bush Cap Unit
