Quick guide
Setting the TV
Bundling the cables
Setting the TV on the wall
• Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting
or mounting that results in accident or injury.
• You can ask a qualified service personnel about using an optional bracket to mount the TV to the wall.
Standard DIN45325 plug
(IEC 169-2)
75-ohm coaxial cable
Antenna

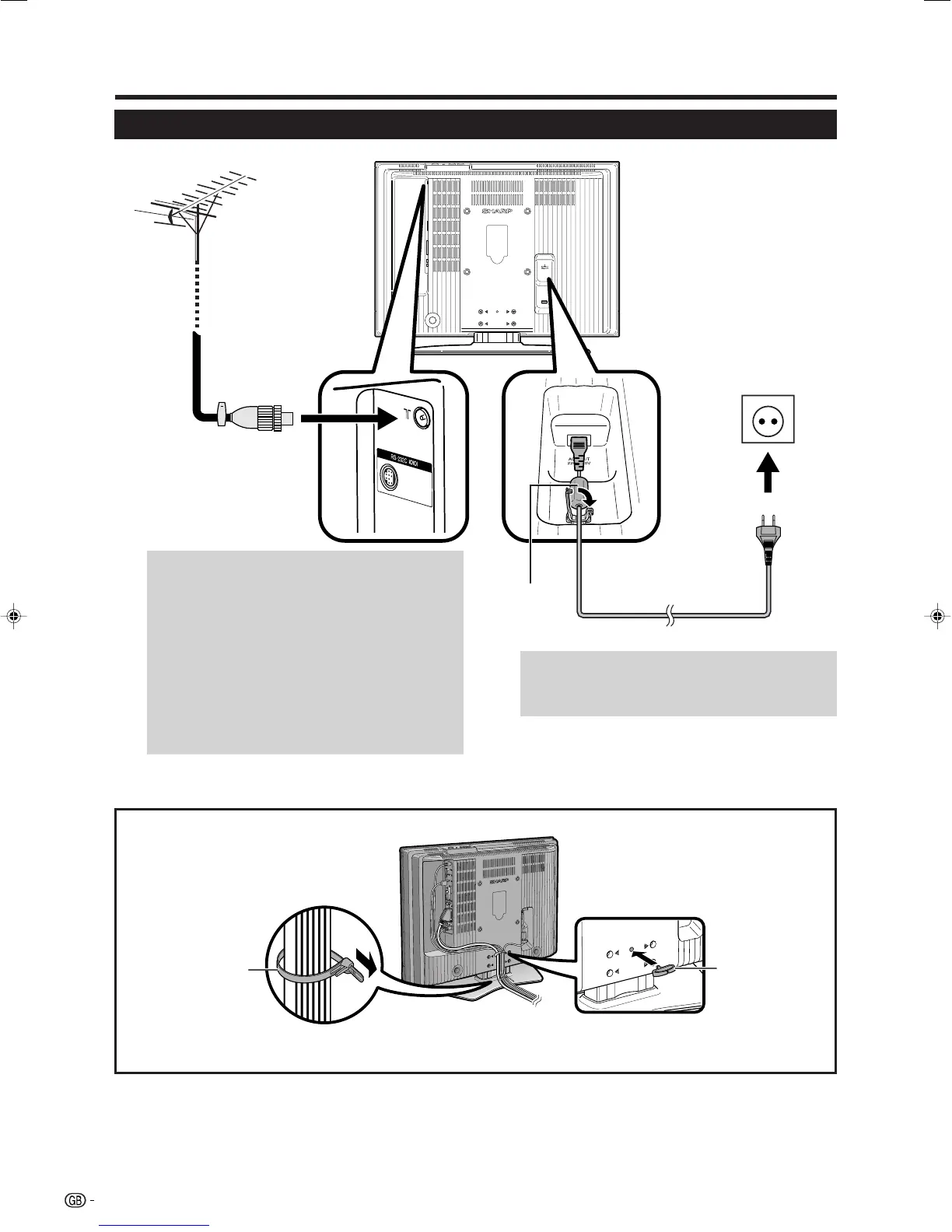

Connect the antenna cable from your antenna-/
cable socket or the (room-/roof) antenna for
antenna input terminal on the back of your TV set
to receive digitally/terrestrially broadcast stations.
An indoor antenna can also be used under good
reception conditions. Passive and active room
antennas are offered commercially. In an active
antenna its power is supplied via the antenna
input terminal.
The supply voltage (5V) must be correspondingly
set under “Supply Voltage”. (See page 18.)
Ferrite Core
The Ferrite Core should be permanently attached
and never removed from the AC cord.
AC cord
Product shape
varies in some
countries.
Cable clampCable tie
Place the TV close
to the AC outlet, and
keep the power plug
within reach.
Ferrite Core
