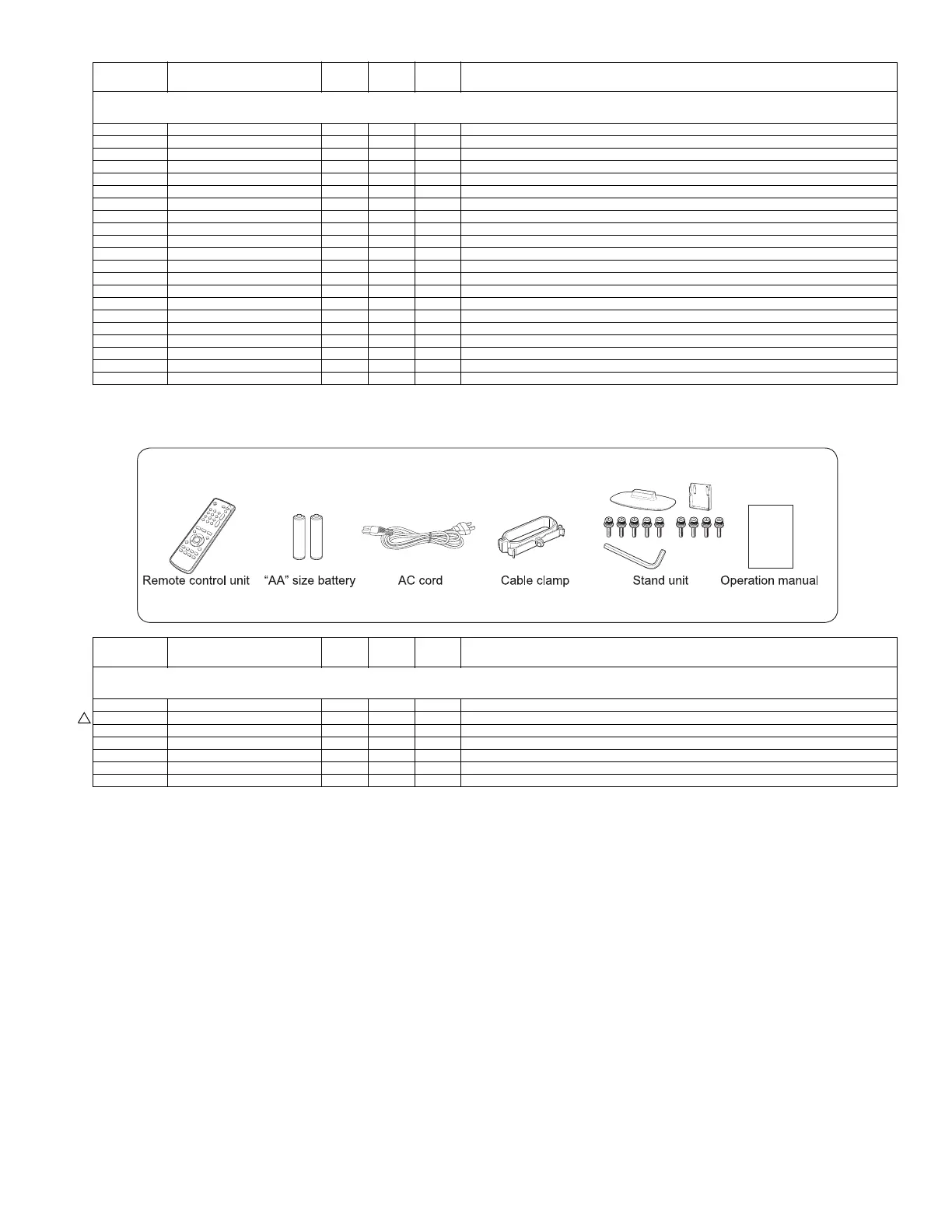

Sharp LC-32R24B - [8] LCD MODULE Assembly; LCD Module Assy; Lamp Unit, x10; [9] SUPPLIED ACCESSORIES

LC-32R24B
25
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[8] LCD MODULE Assembly
1 R1LK315T3GW30Z CW X LCD Module Ass'y
2 CANGKB549WJ01 AS J Bezel Ass'y (Top)
3 CANGKB549WJ02 AR J Bezel Ass'y (Bottom)
4 CANGKB548WJ01 AK J Bezel Ass'y (L, R), x2
5 CHLDZB061WJ01 AT J Chassis Ass'y (L)
6 CHLDZB062WJ01 AT J Chassis Ass'y (R)
7 PSHEPA667WJZZ AU J Diffusion Sheet, x2
8 PSLDK3003TPZZ AY J Diffusion Panel
9 LHLDZA919WJKZ AL J Lamp Holder-L
10 LHLDZA918WJKZ AL J Lamp Holder-R
11 RLMPLA029WJN1 AR J Lamp Unit, x10
12 QSOCFA003WJZZ AD J Lamp Socket, x10
13 RUNTK3923TPZZ AN J GND PWB A (Top)
14 RUNTK3924TPZZ AP J GND PWB B (Bottom)
15 LHLDZA924WJKZ AB J Lamp Clip A, x2
16 LHLDZA925WJKZ AC J Lamp Clip B, x2
17 PMiR-A166WJZZ AU J Reflected Sheet
18 Not Available - - BL Chassis Ass'y
N LX-EZA028WJF9 AB J Screw, x12 (for Bezel/Panel Chassis)
N LX-HZA039WJF7 AB J Screw, x10 (for Bezel/BL Chassis)
N XHPS730P08KS0 AB J Screw, x4 (for GND PWB)
[9] SUPPLIED ACCESSORIES
X1 LHLDWA173WJKZ AE J Cable Clamp
!
X2 QACCZA101WJPZ AQ N J AC Cord
X3 RRMCGA695WJSA AP N * Remote Control Unit
X7 TINS-D733WJZZ AL N * Opera ion Manual (Portuguese)
X9 Not Available - - "AA" Size Battery
X10 CDAi-A441WJ03 BF X Stand Unit
X10-1 Not Available - - Tool for Stand
X1X2
X3
X9
X10
X7
X10-1
