Sharp LC-32SB24U

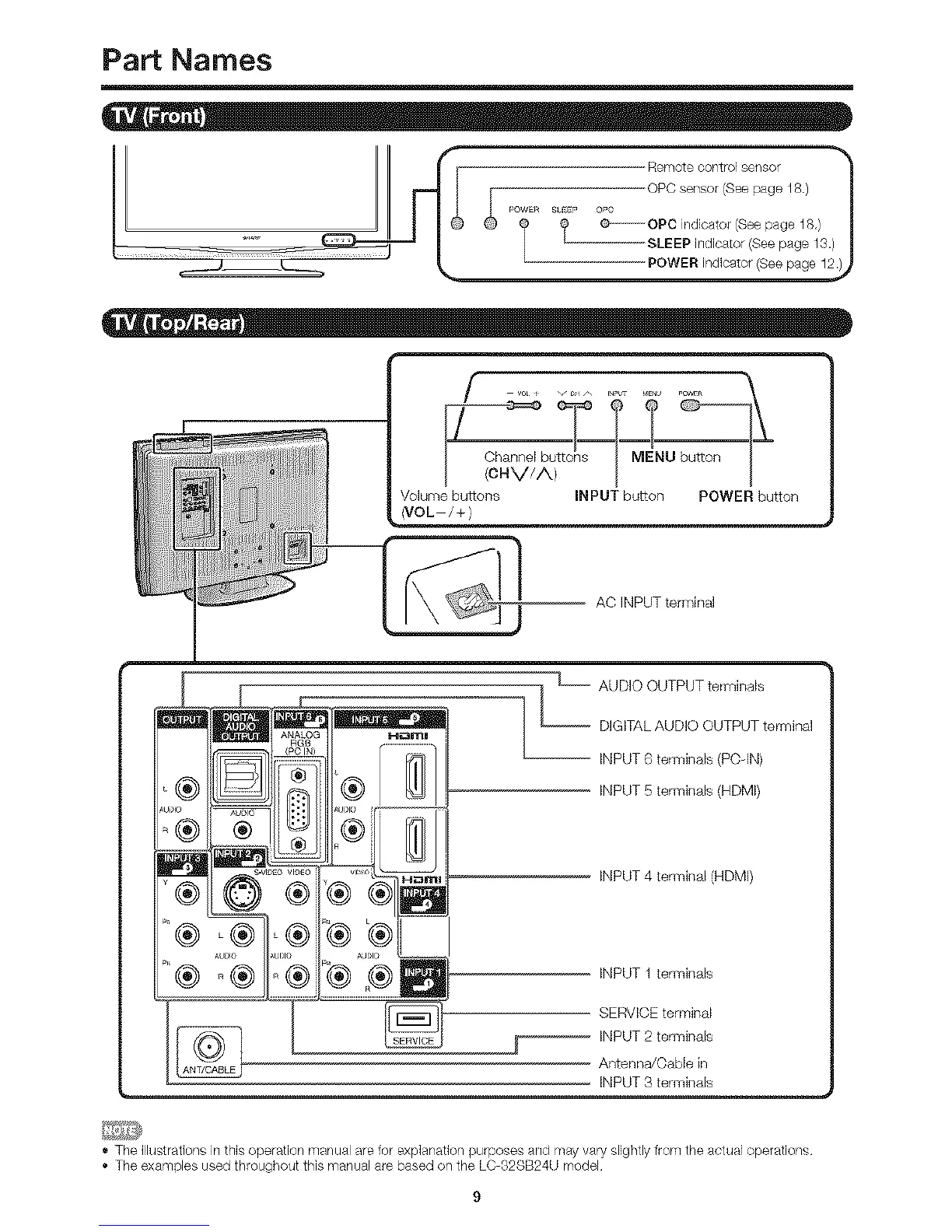

Part Names
Volume buttons INPUT button POWER button
NOL /+)
1
-- AC INPUTterminal
H_ml
L AUDIO OUTPUT terminals
l l-- DIGITAL AUDIO OUTPUT terminal
INPUT 6 terminals (PC-IN)
INPUT 5 terminals (HDMI)
INPUT 4 terminal (HDMI)
INPUT 1 terminals
SERVICE terminal
, INPUT 2 terminals
Antenna/Cable in
INPUT 3 terminals
The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations¸
• The examples used th_'oughout this manual are based on the LC 82SB24U model¸
