Sharp LC-32SV29U - Connecting a Game Console, VCR, Camcorder or Cable;Satellite Set-Top Box

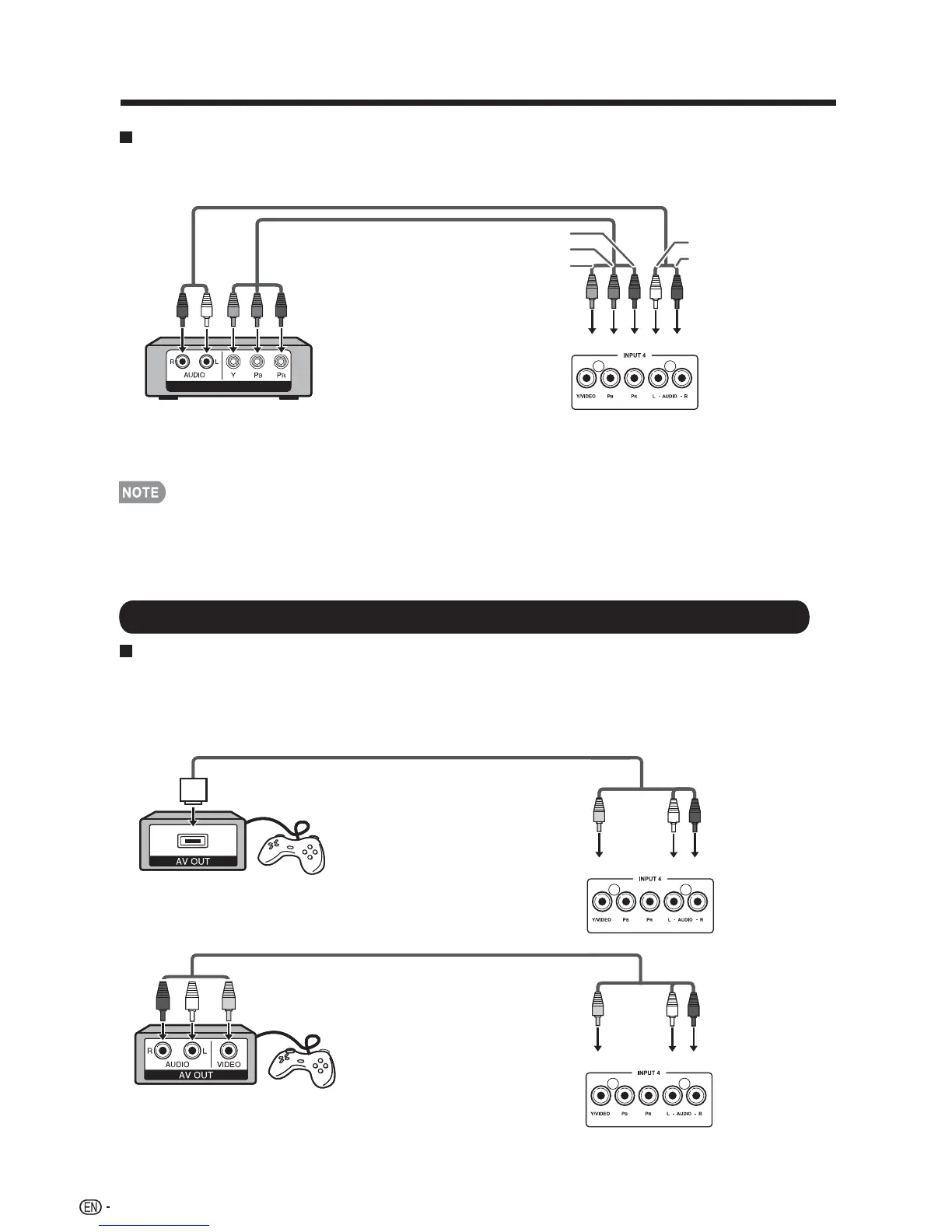

When using Component cable (INPUT 4):
•
Blu-ray disc player
•
DVD player
• HD cable/satellite set-top box
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a
component cable and set the equipment to 1080p output.
• See page 19 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the
HDMI terminal.
Connecting a Game Console, VCR, Camcorder or Cable/Satellite Set-top Box
When using Composite cable (INPUT 4):
•
Game console
•
VCR
•
Camcorder
• Cable/Satellite set-top box
COMPONENT OUT
AUDIO-R (Red)
AUDIO-L (White)
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
COMPONENT OUT
Back panel
horizontal inputs
Back panel
horizontal inputs
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
Back panel
vertical inputs
Back panel
vertical inputs
AUDIO-R (Red)
AUDIO-L (White)
VIDEO (Yellow)
AUDIO-R (Red)
AUDIO-L (White)
VIDEO (Yellow)
20
Connecting to External Equipment
