Bundle the AC cord with the clamp (small).
Quick guide
Setting the TV
Standard DIN45325
plug (IEC 169-2)
75
q
coaxial cable
Antenna
Connect the antenna cable from your antenna-/cable socket or the (room-/roof) antenna for antenna input terminal on the
back of your TV set to receive digitally/terrestrially broadcast stations.
An indoor antenna can also be used under good reception conditions. Passive and active room antennas are offered
commercially. In an active antenna its power is supplied via the antenna input terminal.
The supply voltage (5V) must be correspondingly set under “Supply voltage”. (Page 16)
* Ferrite Core
The Ferrite Core should be permanently attached and never removed from the AC cord.
Setting the TV on the wall
• This TV should be mounted on the wall only with the wall mount bracket available from SHARP. (See page 36.)
The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.
• Installing the LCD Colour TV requires special skill that should only be performed by qualifi ed service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting
or mounting that results in accident or injury.
• You can ask a qualifi ed service personnel about using an optional bracket to mount the TV to the wall.
AC cord
Product shape
varies in some
countries.
Cable clamp (small)
Cable tie

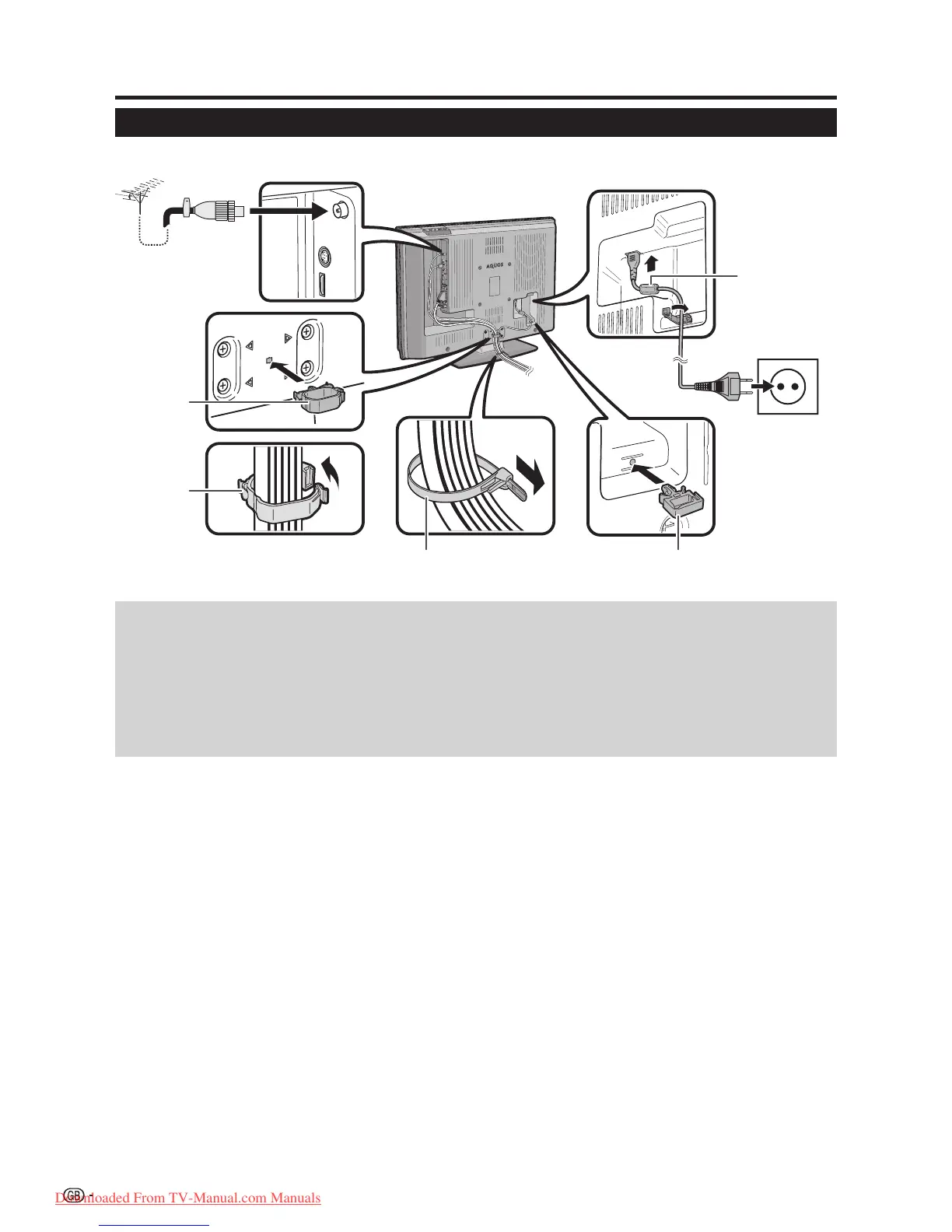

Place the TV close to the AC outlet, and
keep the power plug within reach.
Ferrite Core *
Cable
clamp
(large)
Bundle the
cables with
the clamp.
