24
LC-39/50LE650
LC-39/50LE651
LC-39/50LE652
1. Removing of major Parts 39” (Continued)

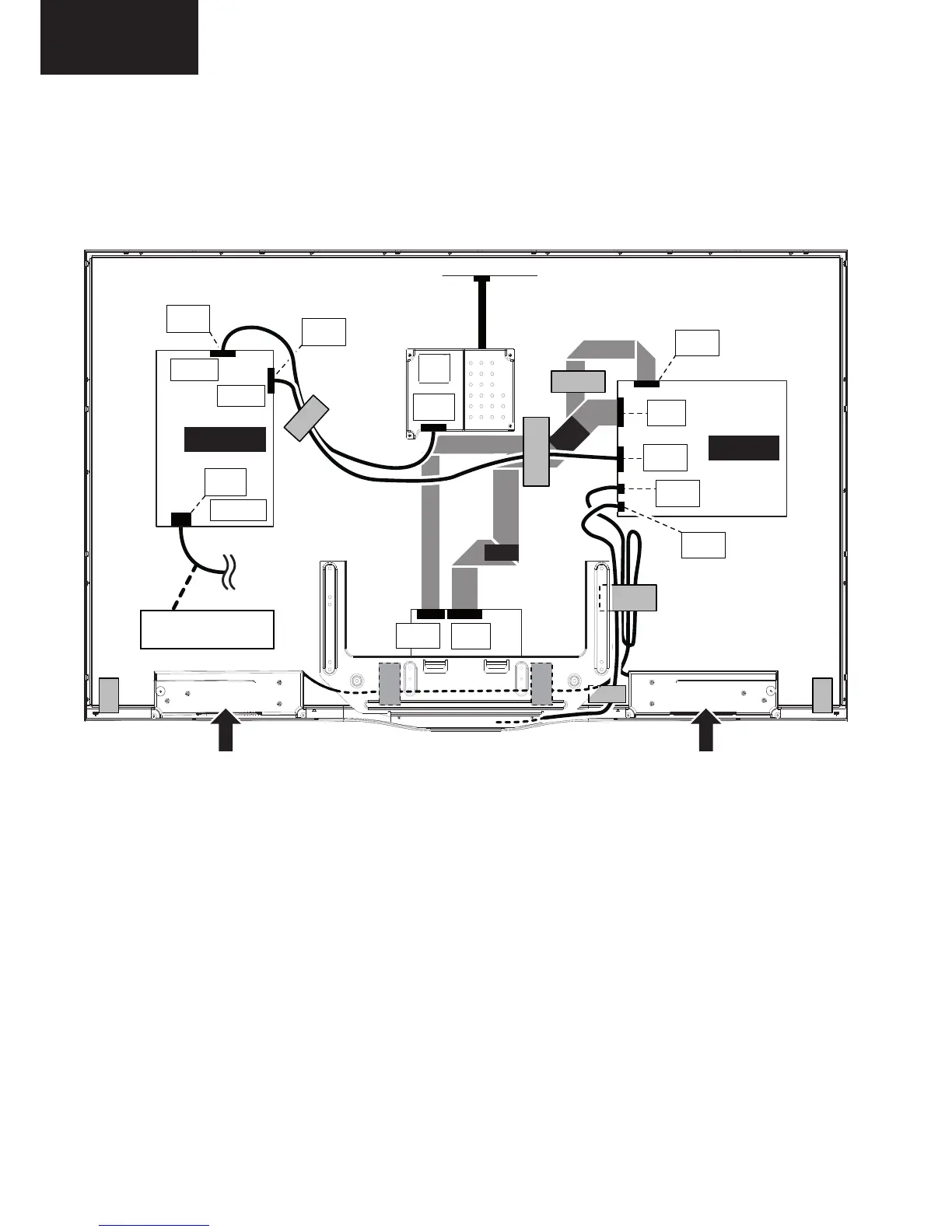

1.3. Disconnect all the connectors from all the PWBs.
LC-39LE650
2 / 5
3. Disconnect all the connectors from all the PWBs.
AC CORD
Power unit
P802
P801
[EL]
SC101
[LA]
[PD]
Main unit
[LV]
[PD]
[SP]
[LW]
[LA]
[RA]
[LW]
[LV]
SPEAKER -R
SPEAKER -L
