Sharp LC-39LE651E Service Manual

25
LC-39/50LE650
LC-39/50LE651
LC-39/50LE652

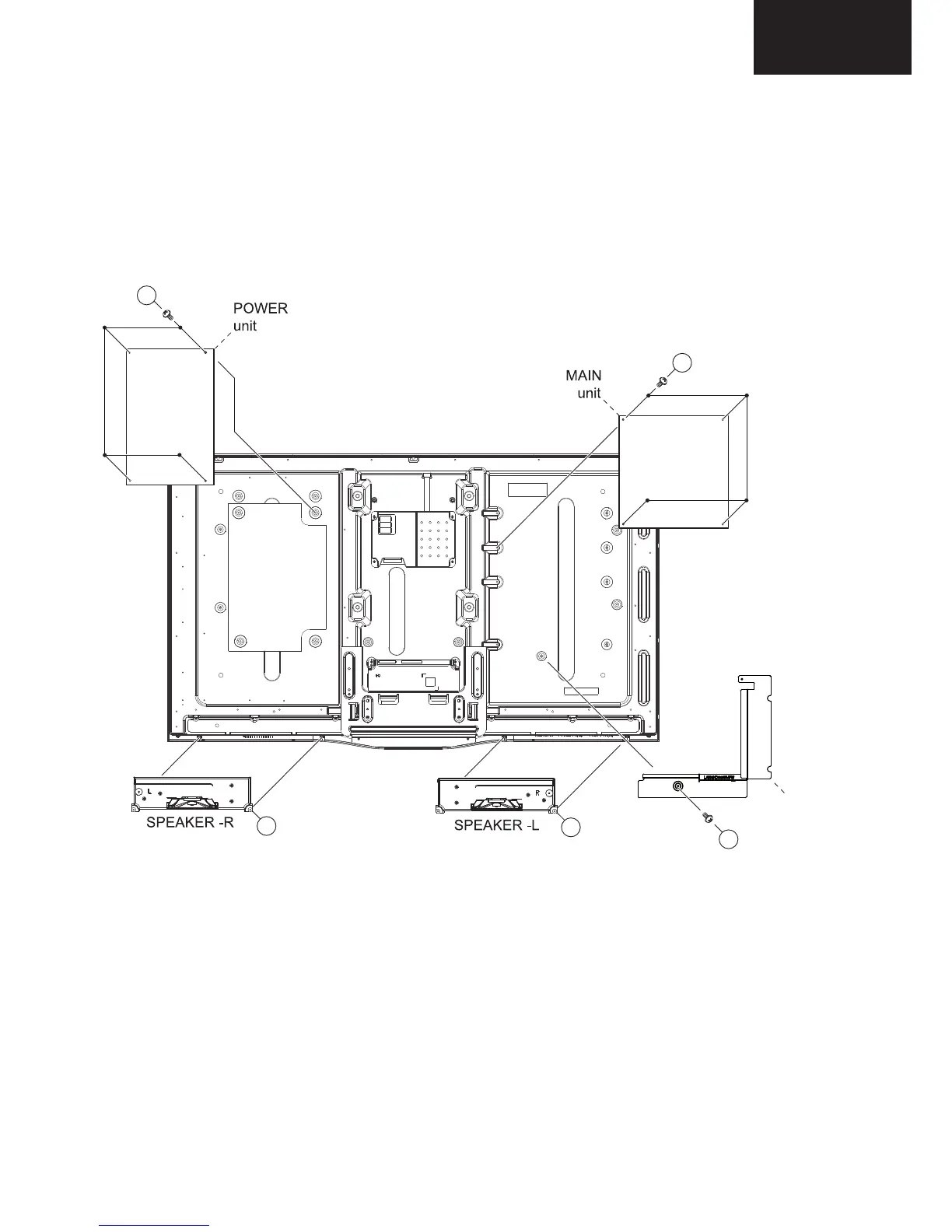

1. Removing of major Parts 39” (Continued)
1.4. Remove the 4 lock screws  and detach the POWER unit.
1.5. Remove the 4 lock screws  and detach the MAIN unit.
1.6. Remove the 1 lock screw  and detach the terminal BRACKET.
1.7. Remove the SPEAKER-L  and SPEAKER-R .
LC-39LE750
3 / 5
4. Remove the 4 lock screws and detach the POWER unit.
5. Remove the 4 lock screws and detach the MAIN unit.
6. Remove the 1 lock screws and detach the terminal BRACKET.
7. Remove the SPEAKER-L and SPEAKER -R .
7
8
6
5
9
terminal
BRACKET
7
8
9
5
6
