Sharp LC-39LE651E Service Manual

26
LC-39/50LE650
LC-39/50LE651
LC-39/50LE652
1. Removing of major Parts 39” (Continued)

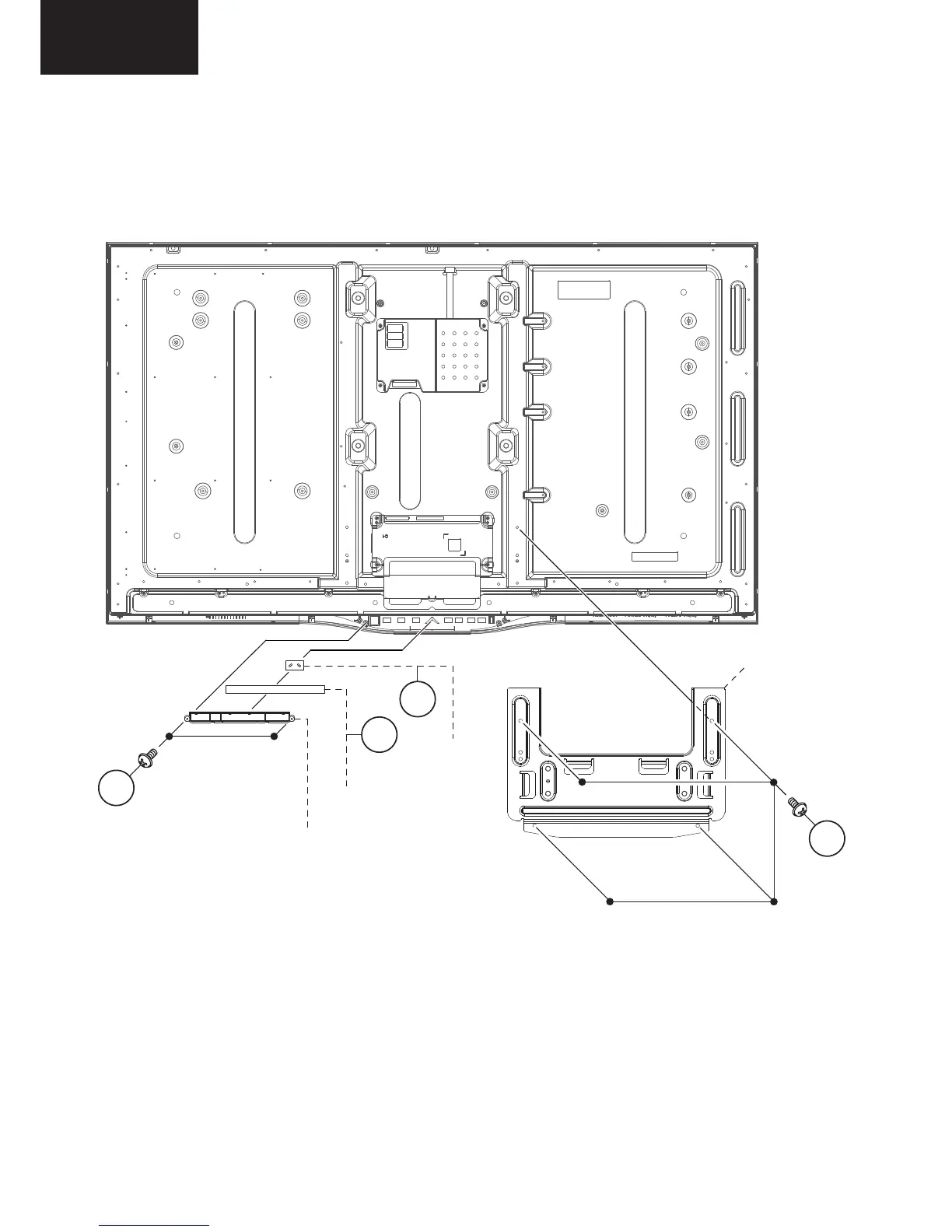

1.8. Remove the 4 lock screws ⑩ and detach the stand BRACKET.
1.9. Remove the 2 lock screws ⑪ and detach the control button HOLDER.
1.10. Detach the KEY unit ⑫ and the pyramid lighting DIFFUSER ⑬.
LC-39LE650
4 / 5
Service Manual
8. Remove the 4 lock screws and detach the stand BRACKET.
9. Remove the 2 lock screws and detach the control button HOLDER.
10. Detach the KEY unit and the piramid lighting DIFFUSER .
11
13
12
10
piramid
lighting
DIFFUSER
KEY
unit
control
button
HOLDER
11
12
13
stand
BRACKET
10
