Sharp LC-39LE651E Service Manual

30
LC-39/50LE650
LC-39/50LE651
LC-39/50LE652

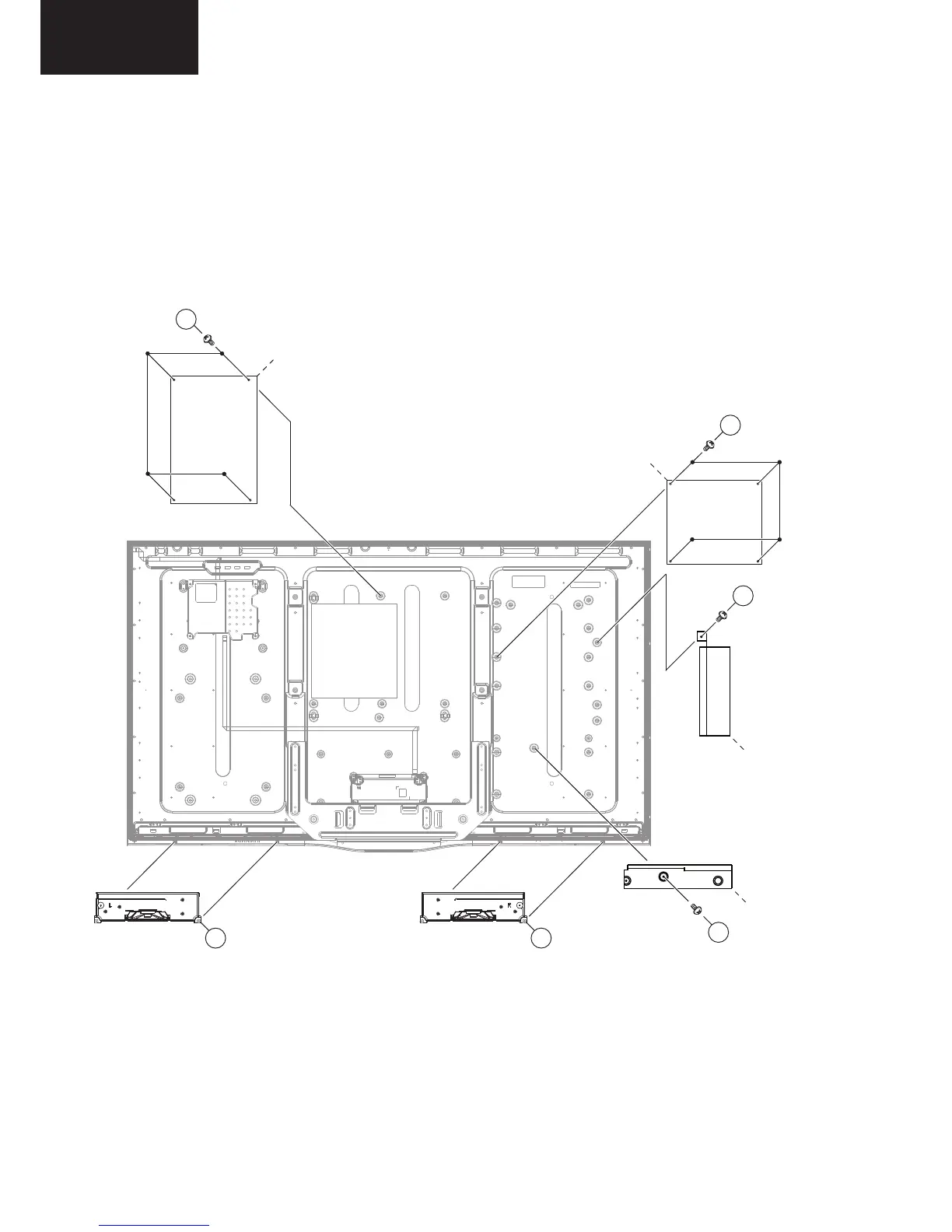

2. Removing of major Parts 50” (Continued)
2.4. Remove the 4 lock screws  and detach the POWER unit.
2.5. Remove the 4 lock screws  and detach the MAIN unit.
2.6. Remove the 1 lock screw  and detach the side BRACKET.
2.7. Remove the 1 lock screw  and detach the bottom BRACKET.
2.8. Remove the SPEAKER-L  and SPEAKER-R .
LC-50LE650
3 / 5
4. Remove the 4 lock screws and detach the POWER unit.
5. Remove the 4 lock screws and detach the MAIN unit.
6. Remove the 1 lock screws and detach the side BRACKET.
7. Remove the 1 lock screws and detach the bottom BRACKET.
8. Remove the SPEAKER-L and SPEAKER -R .
7
8
6
5
10
9
POWER
unit
5
bottom
BRACKET
MAIN
unit
7
side
BRACKET
6
8
SPEAKER -R
SPEAKER -L
9
10
