LC-39/50LE650
LC-39/50LE651
LC-39/50LE652
2. Removing of major Parts 50” (Continued)

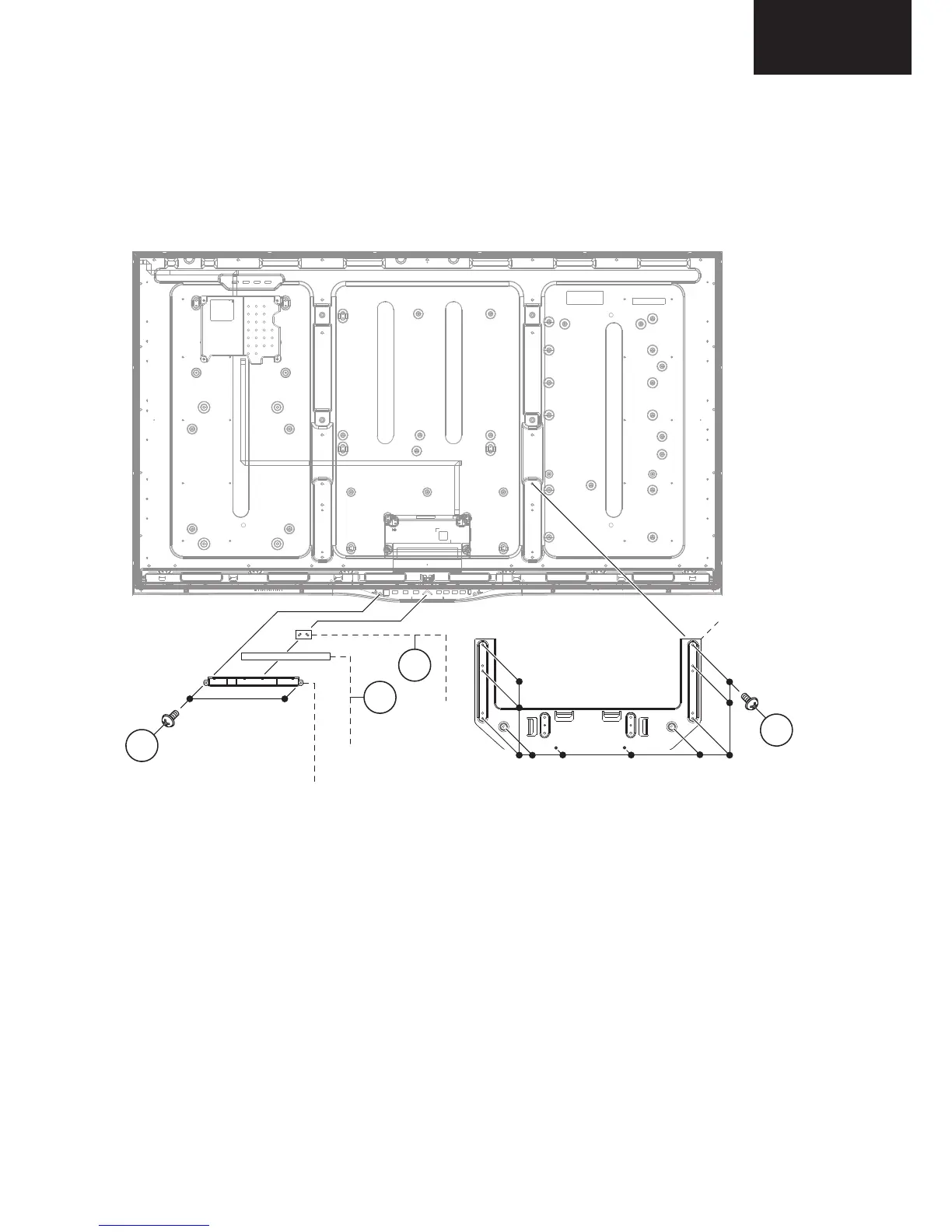

2.9. Remove the 6 lock screws ⑪ and detach the stand BRACKET.
2.10. Remove the 2 lock screws ⑫ and detach the control button HOLDER.
2.11. Detach the KEY unit ⑬ and the pyramid lighting DIFFUSER ⑭.
LC-50LE650
4 / 5
Service Manual
9. Remove the 10 lock screws and detach the stand BRACKET.
10. Remove the 2 lock screws and detach the control button HOLDER.
11. Detach the KEY unit and the piramid lighting DIFFUSER .
12
14
13
11
stand
BRACKET
piramid
lighting
DIFFUSER
KEY
unit
control
button
HOLDER
12
13
14
11
