5.6.9 ADC VALUE
Used with “Enable ADC Value” item,For designer only
5.6.10 CAPTURE SCREEN
Capture Screen switch

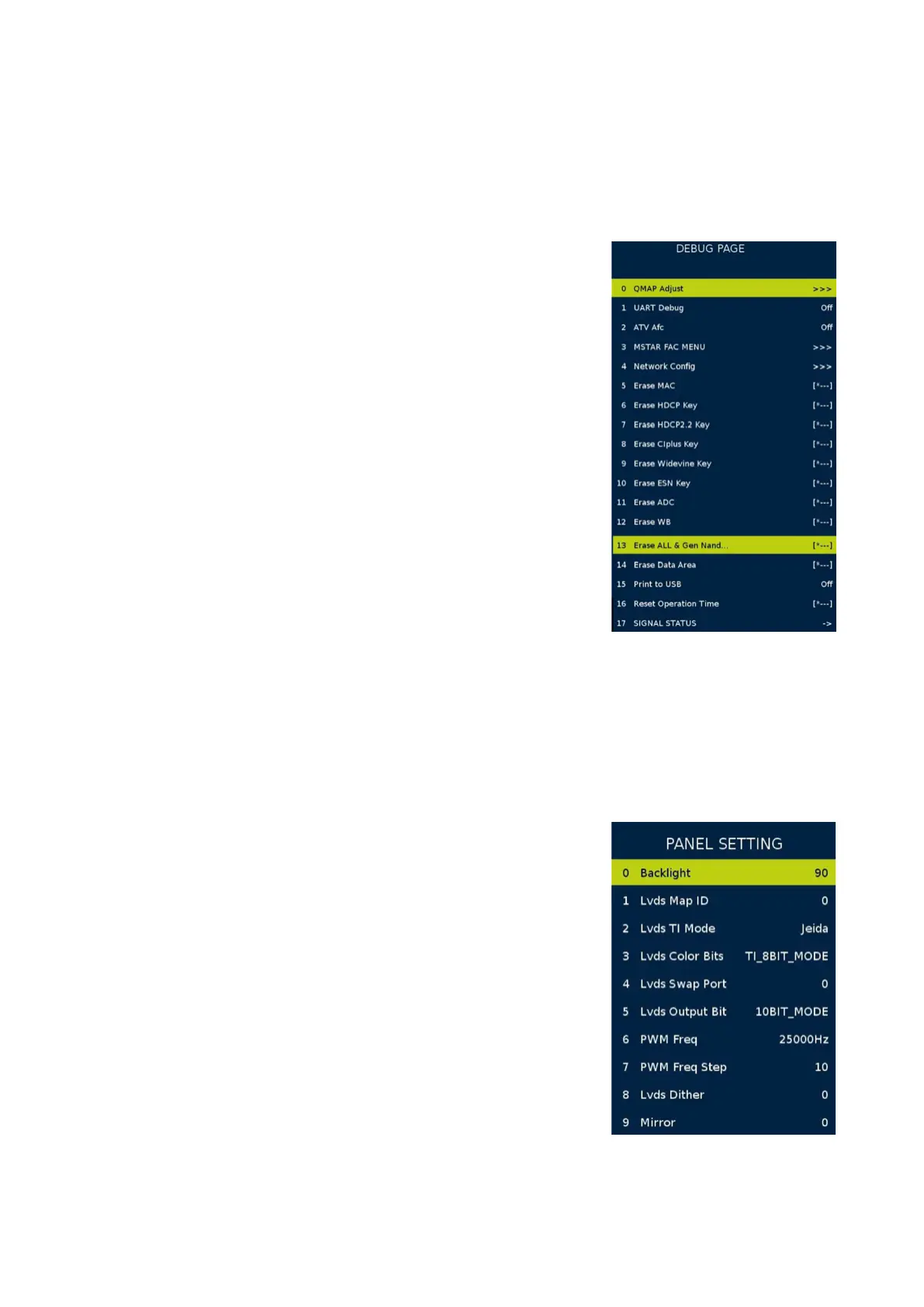

5.7 DEBUG
QMAP Adjust: For designer only
UART Debug: Uart debug switch, For designer only
ATV Afc: For designer only
MSTAR FAC Menu: Show MStar Factory Menu,For designer only
Network Cong: Enter Network setting
Erase MAC: Erase MAC address, the default password is “4711”
Erase HDCP Key: Erase HDCP Key, the default password is “4711”
Erase HDCP2.2 Key: Erase HDCP2.2 Key,
the default password is “4711”
Erase CIplus Key: Erase CIplus Key, the
default password is “4711”
Erase Widevine Key: Erase Widevine Key,
the default password is “4711”
Erase ESN Key: Erase ESN Key, the default password is “4711”
Erase ADC: Erase ADC data, the default password is “4711”
Erase WB: Erase white balance data, the
default password is “4711”
Erase All & Gen NandBin: For designer only
Erase Data Area: For designer only
Print to USB: debug print information output to USB device. Easy to get print out.
Reset Operation Time: Reset operation time
Signal Status: Show current signal status.
5.8 PANEL SETTING
Backlight: It’s for adjusting the non-eco baclight.
Lvds Map ID: Modify this according to your panel .It is the
combination of the TI Mode,Color Bits ,Swap Port and Output Bit
Lvds TI Mode: Have VECA/JEICA mode.It’s related to Lvds Map.
Lvds Color Bits: Set lvds data interface type.(6bit/8bit/10bt)
Lvds Swap Port: Lvds A/B Port data swap
Lvds Output Bit: Set lvds data output type.(6bit/8bit/10bt)
PWM Freq: Modify PWM frequency
PWM Freq Step: The speed when you modify PWM Freq value
Lvds Dither
Mirror: mirror TV. It makes TV show mirror frame
PWM_REF
Picture 19 Panel setting
Picture 18 Debug page
