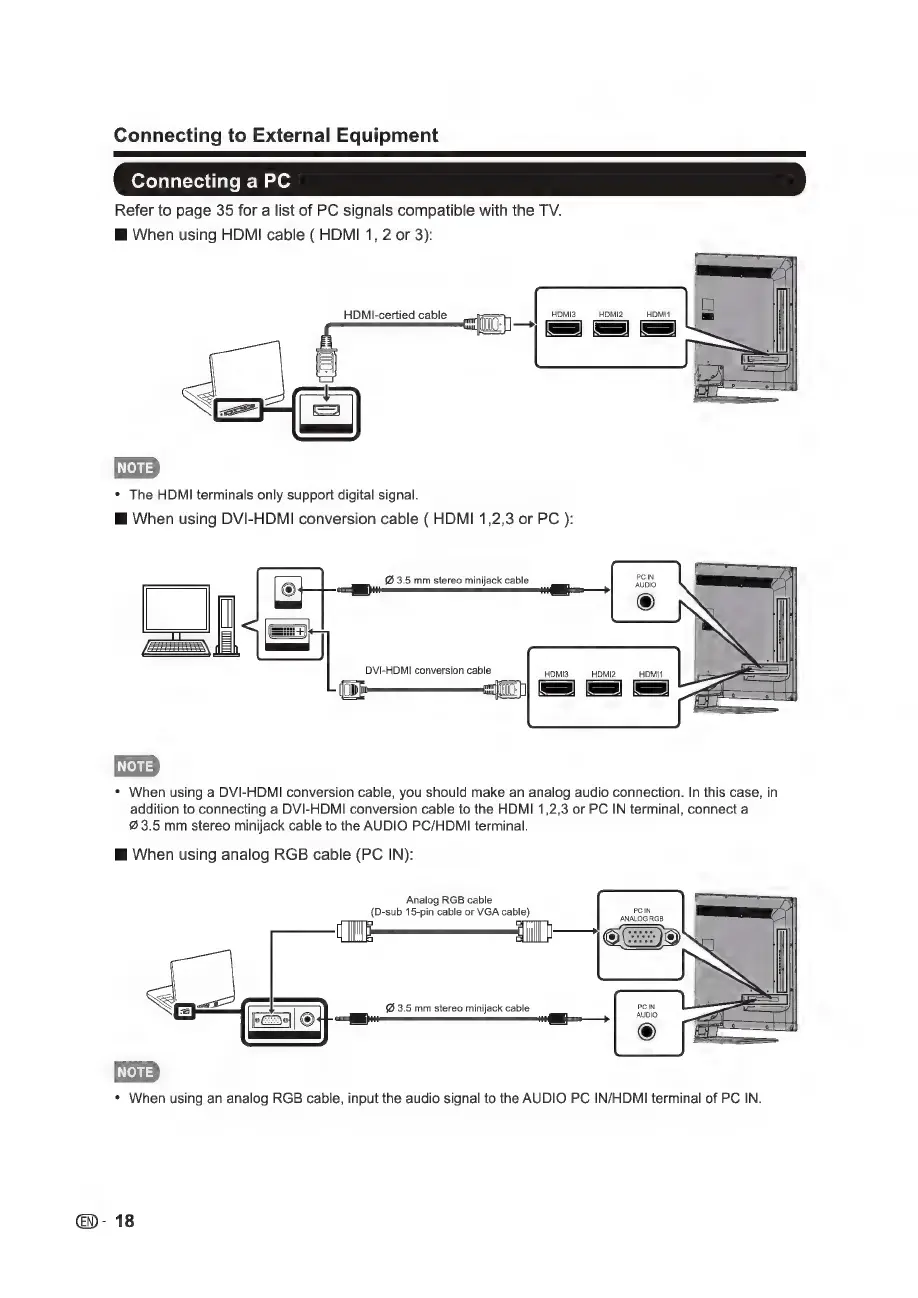

Connecting to External Equipment
Connecting a PC
Refer to page 35 for a list of PC signals compatible with the TV.
E When using HDMI cable ( HDMI 1, 2 or 3):
HDMI3 HDMI2 HDMI1
+ The HDMI terminals only support digital signal.
E When using DVI-HDMI conversion cable ( HDMI 1,2,3 or PC ):
Ø 3.5 mm stereo minijack cable
DVI-HDMI conversion cable HDMI3 HDMI2 HDMIt
(DE Cl) =] =) =
+ When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in
addition to connecting a DVI-HDMI conversion cable to the HDMI 1,2,3 or PC IN terminal, connect a
3.5 mm stereo minijack cable to the AUDIO PC/HDMI terminal.
E When using analog RGB cable (PC IN):
Analog RGB cable
(D-sub 15-pin cable or VGA cable)
Pee
i—i
Ø 3.5 mm stereo minijack cable
E ©
+ When using an analog RGB cable, input the audio signal to the AUDIO PC IN/HDMI terminal of PC IN.
- 18
