4

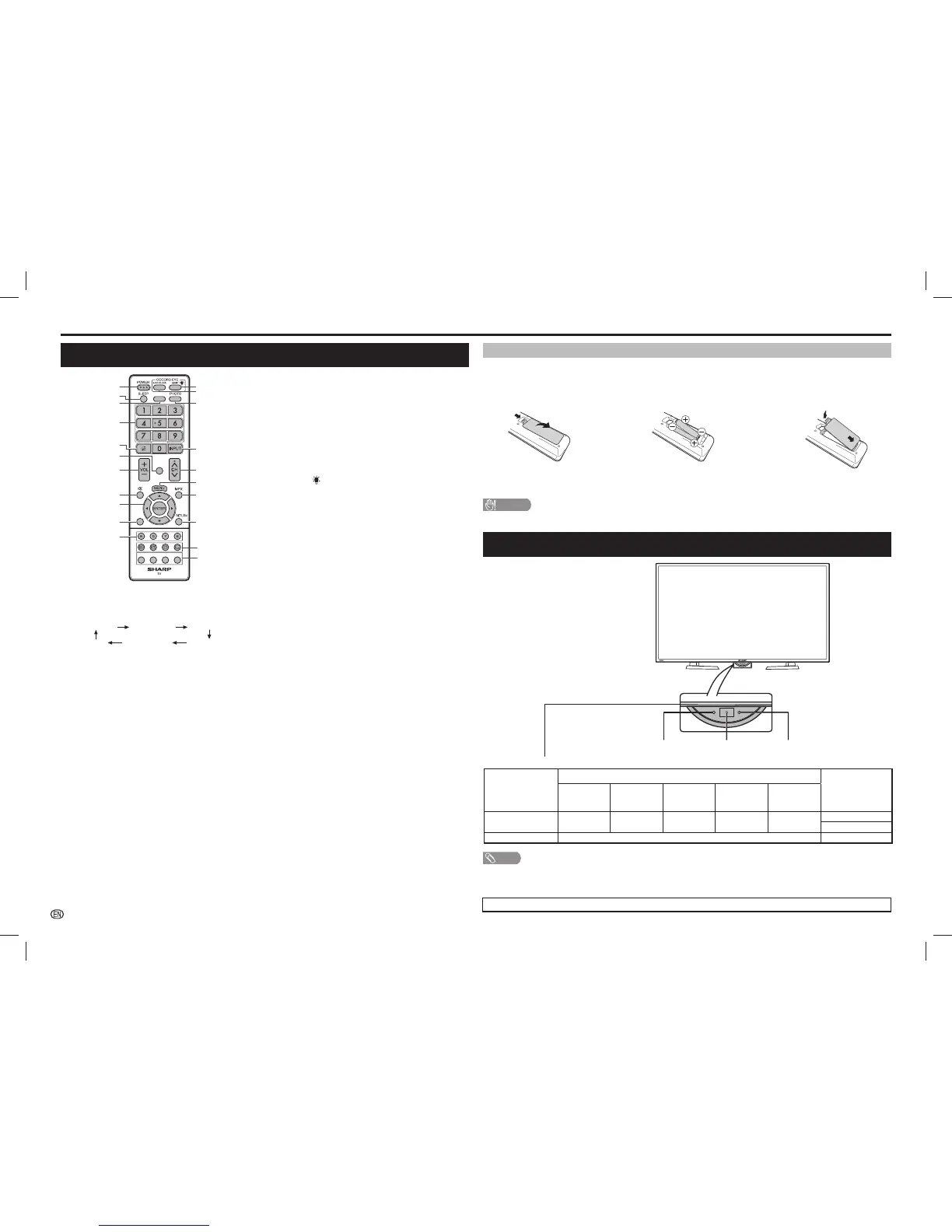

Part names and functions
Inserting the batteries
Before using the TV for the fi rst time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.
1
Open the battery cover.
2
Insert the two supplied “AAA” size batteries.
3
Close the battery cover.
• Place batteries with their terminals corresponding to the
(
e
) and (
f
) indications in the battery compartment.
CAUTION
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fi re or the like.
TV (Front)
Remote control sensor Motion sensor
Power indicator
COCORO EYE LED
COCORO EYE LED
Power On mode (Power indicator lighted)
Standby mode
(Lighted)
Smart Power
Control
Auto Colour
Adjustment
Assist Light
Mode
Optical
Control
ALL OFF
ON
Green*
1
White White White Blue
Red
White (ASL is on) *
2
OFF
No LED Red
NOTE
*
1
SMART POWER CONTROL IS PRIORITY. Power indicator will display Green even if other setting also turn ON at the same
time.
*
2
If the Assist Light Mode is turned ON, Power indicator will display weak White during standby mode.
• The illustrations used throughout this manual are based on LC-60LE660X.
Remote control unit
DISPLAY
COLOUR
ADJ.
(FREEZE)
EPG
INTERNET
GUIDE INFO RADIO
1
2
5
7
8
9
11
6
3
4
12
13
14
15
16
17
18
10
19
20
21
9
a
/
b
/
c
/
d
(Cursor)
Select a desired item on the setting screen.
ENTER
Execute a command.
10 COLOUR ADJ. (FREEZE)
Freeze a motion picture on the screen and adjust the
colour tone of the still image. (See page 13.)
11 Colour (Red/Green/Yellow/Blue)
The coloured buttons are correspondingly used to select
the coloured items on the screen.
TELETEXT mode: Select a page. (See page 14.)
12 ASSIST
The display will light up when sensor detect people in
dark room. (See page 11.)
13 AUTO COLOUR
Automatically adjust the picture quality (colour
and brightness) as response to the tone of room.
(See page 11.)
14 PHOTO
Display your pictures directly on the TV screen.
(See page 15.)
15 INPUT (INPUT SOURCE)
Select an input source.
16 CH
r
/CH
s
TV input mode: Select the channel.
(CH
r
) Increase the channel number.
(CH
s
) Decrease the channel number.
TELETEXT mode: Select a page. (See page 14.)
17 MENU
Display the menu screen.
18 MPX
Select the sound multiplex mode.
19 RETURN
MENU mode: Return to the previous menu screen.
20
m
(TELETEXT),
k
(Reveal hidden for TELETEXT),
3
(Hold),
[
(SUBTITLE for TELETEXT)
Use for TELETEXT mode. (See page 14.)
21 EPG
DTV mode: To display EPG (Electronic Programme Guide)
screen. (See pages 13.)
GUIDE
DTV mode: Display the programme channel list.
(See page 12.)
INFO
DTV mode: Display the programme information.
(See page 12.)
RADIO
Press to access RADIO mode. (See page 12.)
1 POWER (STANDBY/ON)
To switch the power on and off. (See page 6.)
2 SLEEP
Set the Sleep timer.
0 hr. 30 min. 1 hr. 00 min.
2 hr. 30 min.
1 hr. 30 min.
2 hr. 00 min.
Off
3 INTERNET
Press to connect to the internet.
4 0 – 9
Set the channel.
TELETEXT mode: Set the page. (See page 14.)
5
A
(Flashback)
Press
A
to return to the previous selected channel or
external input mode.
6 DISPLAY
Display the channel or input information.
7 VOL
k
/VOL
l
Set the volume.
(VOL
k
) Increase the volume.
(VOL
l
) Decrease the volume.
8
e
(Mute)
Press
e
s
Mutes sound.
Press
e
again
s
Restores sound.
Mute will be cancelled after 30 minutes. However, the TV
will not suddenly output loud sound as the volume level
will be set to 0 automatically. Increase the volume level by
pressing VOL
k
.
LC-406070LE660X_EN_GXX.indd 4LC-406070LE660X_EN_GXX.indd 4 9/2/2014 9:23:34 AM9/2/2014 9:23:34 AM
