LC-40/46LE810E, LC-40/46LX810E
4 – 5

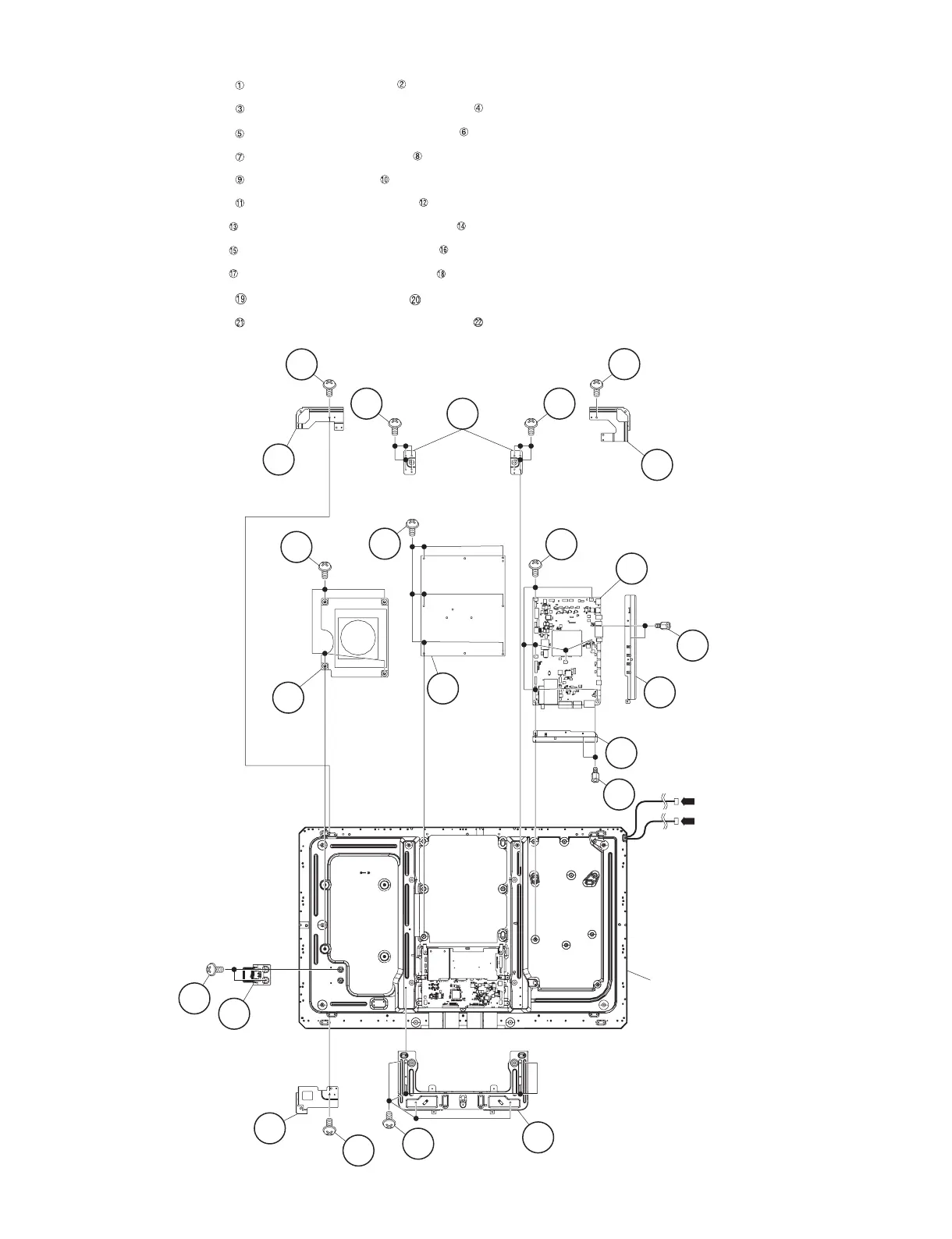

5. Removing of MAIN Unit, POWER Unit, Woofer, Stand Angle.
1. Remove the 7 lock screws and detach the MAIN Unit
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 8 lock screws and detach the 2 VESA Angle .
7. Remove the 1 lock screw and detach the LCD Angle (Bottom-L) .
8. Remove the 1 lock screw and detach the LCD Angle (Top-R) .
9. Remove the 1 lock screw and detach the LCD Angle (Top-L) .
10.Remove the 6 lock screws and detach the Stand Angle .
11.Remove the 2 lock screws and detach the ECO Switch with Holder .
3
13
19
5
4 Terminal Angle
(Bottom)
20 Stand Angle
6 Terminal Angle
(Side)
16
LCD Angle
(Top-R)
2 MAIN Unit
8
POWER
Unit
1
7
9
10
Woofer
14
LCD Angle
(Bottom-L)
18
LCD Angle
(Top-L)
11
17
11
15
12
VESA
Angle
[L1]
[L2]
40" LCD Panel
Module Unit
21
22
ECO Switch
with Holder
