Sharp LC-40LE810E - 46-INCH MODEL DISASSEMBLY STEPS

LC-40/46LE810E, LC-40/46LX810E
4 – 6

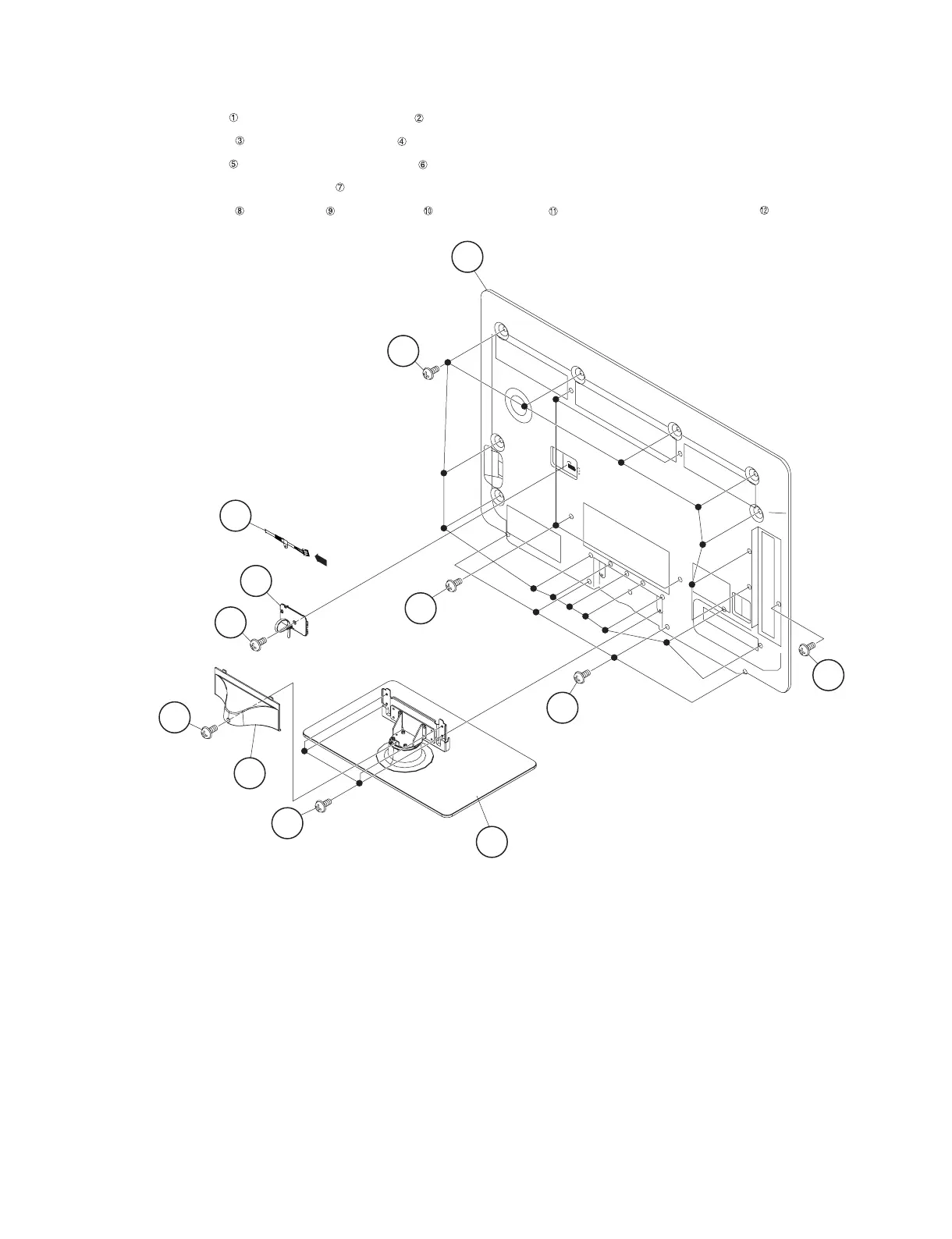

[2] REMOVING OF MAJOR PARTS (LC-46LE810E/LX810E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screws , 1 lock screw , 4 lock screws and 16 lock screws and detach the Rear Cabinet Ass’y .
9
Rear Cabinet Ass'y
11
12
6AC Cord Cover
5
2Support Cover
3
4 Stand Unit
8
10
1
7AC Cord
[AC]
[AC]
