LC-40/46LE810E, LC-40/46LX810E
4 – 10

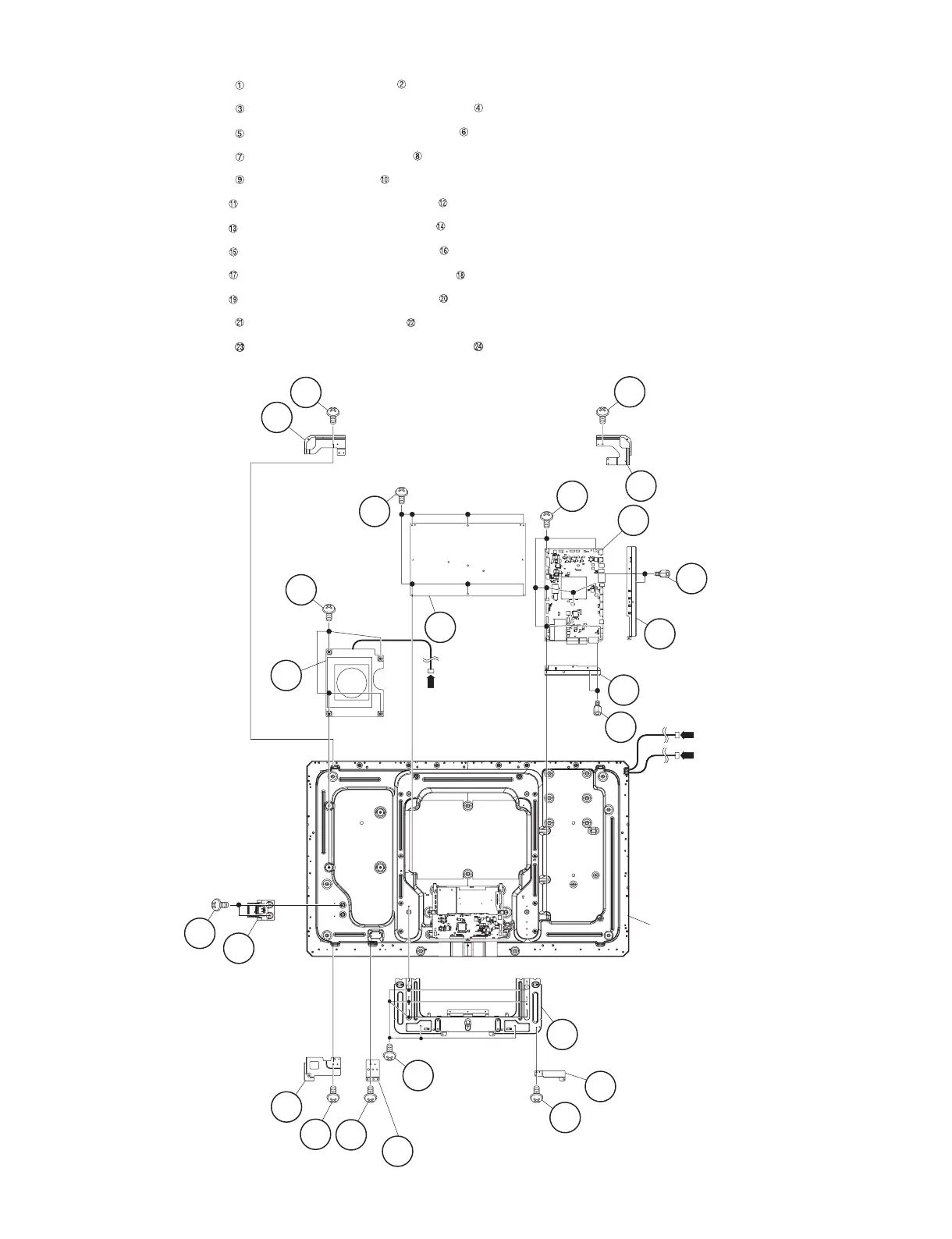

5. Removing of MAIN Unit, POWER Unit, Sub Woofer, Stand Angle.
1. Remove the 7 lock screws and detach the MAIN Unit
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 1 lock screw and detach the LCD Angle (Top-R) .
7. Remove the 1 lock screw and detach the LCD Angle (Top-L) .
8. Remove the 1 lock screw and detach the LCD Angle (B-C-A) .
9. Remove the 1 lock screw and detach the LCD Angle (Bottom-L) .
10.Remove the 1 lock screw and detach the LCD Angle (B-C-B) .
11.Remove the 8 lock screws and detach the Stand Angle .
12.Remove the 2 lock screws and detach the ECO Switch with Holder .
[L1]
[L2]
19
18
17
15
LCD Angle
(Bottom-L)
21
22 Stand Angle
20 LCD Angle (B-C-B)
16
LCD Angle (B-C-A)
46" LCD Panel
Module Unit
3
4 Terminal Angle
(Bottom)
5
6
Terminal Angle
(Side)
2 MAIN Unit
1
12
LCD Angle (Top-R)
11
14
LCD Angle
(Top-L)
13
[SB]
9
10
Woofer
8 POWER
Unit
7
23
24
ECO Switch
with Holder
