EEL-1075
2 – 3

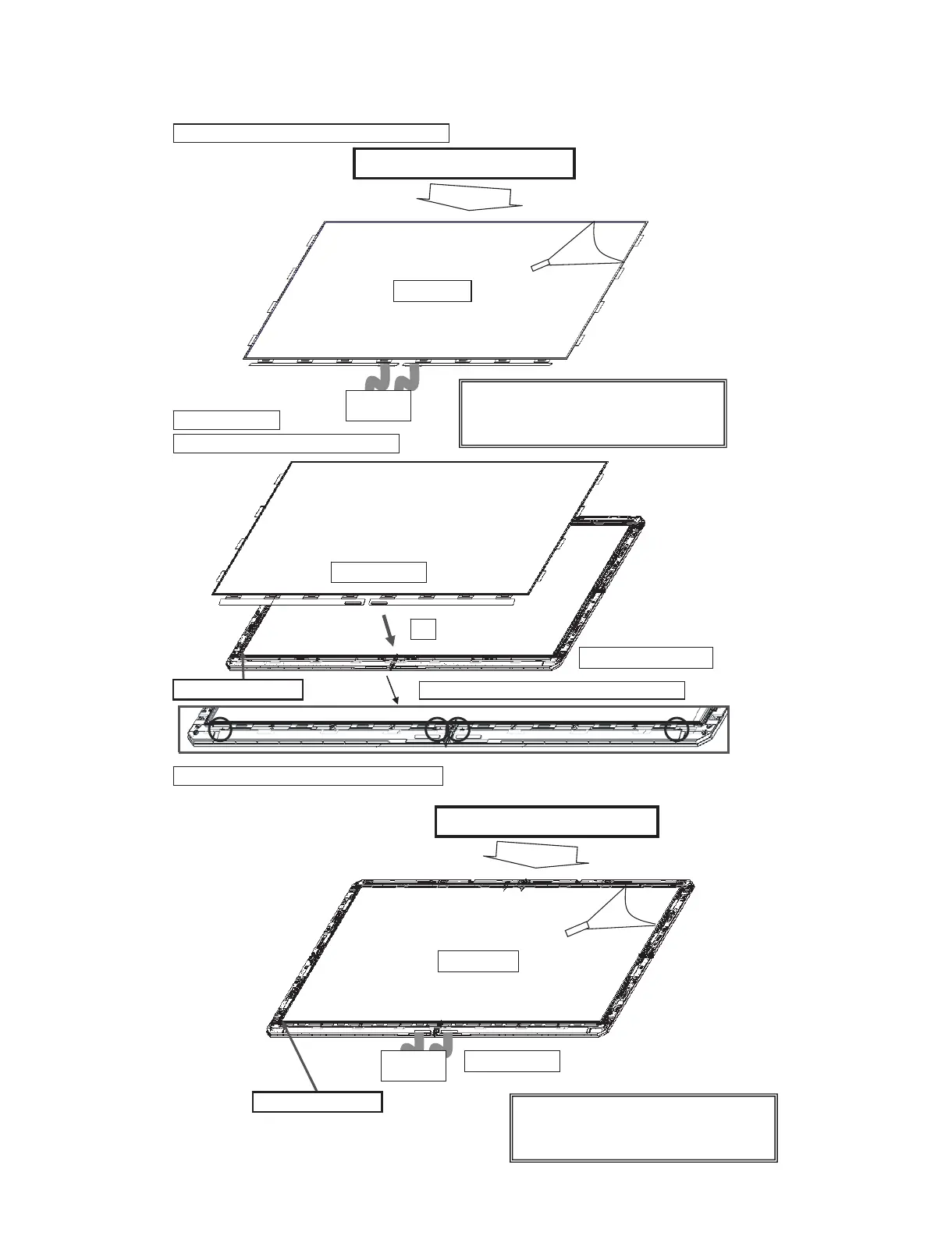

[2] Peel off the Lamination Film
1. LC-40LE810E/LX810E
1. Peel off the back side laminetion film
GND
Back side
Ionized air blowers
Caution
* Ground S-PWB connectors while peeling off lamination film.
* Use a ionized air blower while peeling off lamination film.
Wind from the blower should cover whole surface of panel.
* Never touch polarizer surface after lamination film is removed.
Claw fit 4 points Check (upper claw 4 points)
P-chassis(B) side
S-PWB side
Fit
2. Fit the panel
3. Fit the S-PWB to the P-chassis
4. Peel off the front side lamination film
Ionized air blowers
S-PWB side
GND
Front side
Caution
* Ground S-PWB connectors while peeling off lamination film.
* Use a ionized air blower while peeling off lamination film.
Wind from the blower should cover whole surface of panel.
* Never touch polarizer surface after lamination film is removed.
Panel reference point
Panel reference point
To Next Page
