LC-40/46LE814/824E/RU (1st Edition)
2 – 1
LC-40/46LE814/824E/RU (1st Edition)
Service Manual
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL

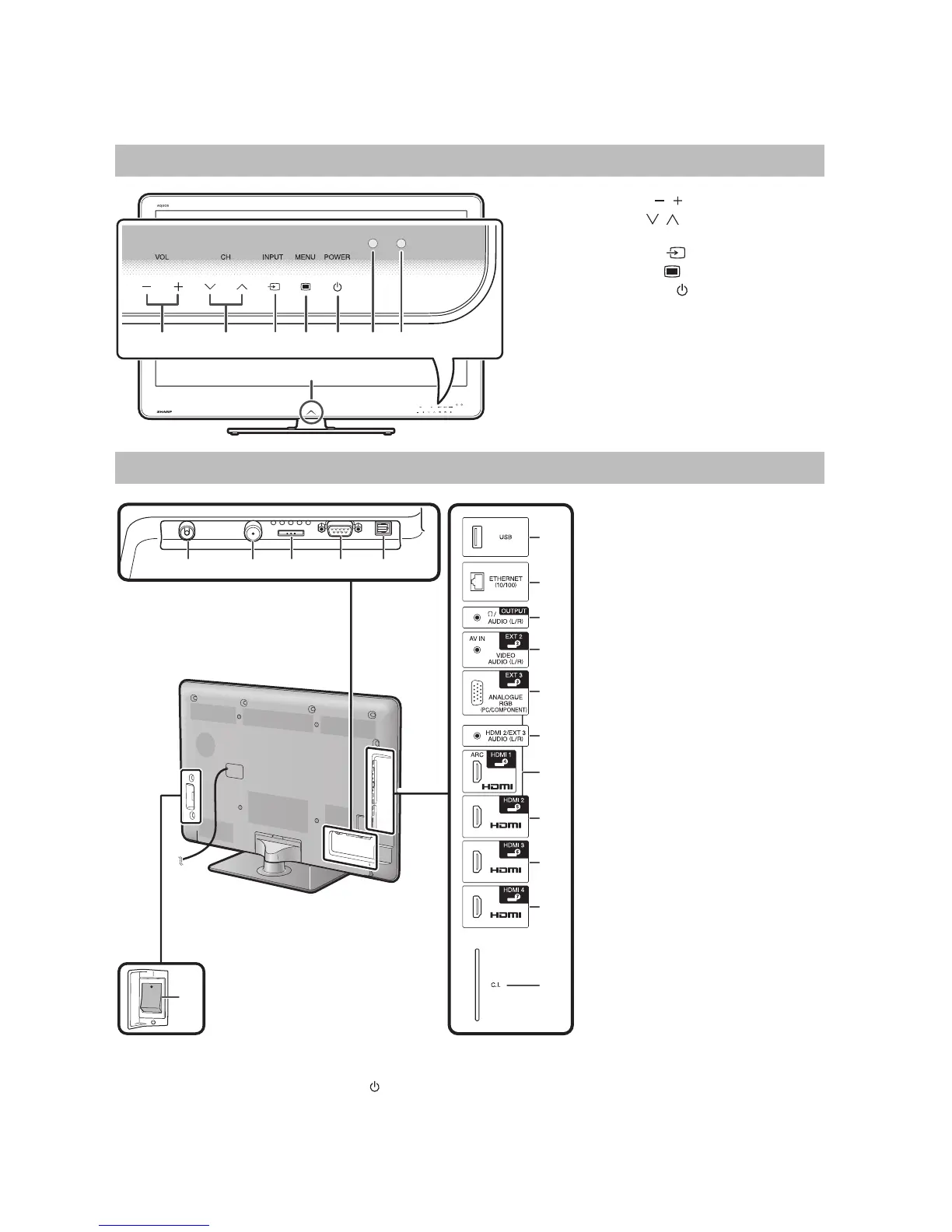

TV (front view)
1 3 45
8
672
1 (Volume buttons)
2 (Programme [channel]
buttons)
3INPUT (Input source button)
4 MENU (Menu button)
5 POWER (Power button)
6 OPC sensor
7 Remote control sensor
8
VOL
Illumination LED
TV (rear view)
17
*2
11
*1
7
6
8
9
10
12
13
14
15
16
1
2
3 4 5
1 Antenna terminal
2 Satellite antenna terminal
3 EXT 1 (RGB) terminal
4 RS-232C terminal
5 DIGITAL AUDIO OUTPUT
terminal
6 USB terminal
7 ETHERNET (10/100) terminal
8 OUTPUT (Headphones/AUDIO
(L/R)) terminal
9 EXT 2 (AV IN/VIDEO/AUDIO (L/R))
terminal
10 EXT 3 (ANALOGUE RGB (PC/
COMPONENT)) terminal
11 HDMI 2/EXT 3 AUDIO (L/R) jack
12 HDMI 1 (HDMI/ARC) terminal
13 HDMI 2 (HDMI) terminal
14 HDMI 3 (HDMI) terminal
15 HDMI 4 (HDMI) terminal
16 C.I. (COMMON INTERFACE) slot
17 MAIN POWER switch
WARNING
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
• Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.
The HDMI 2 and EXT 3 terminals can both use the same audio input terminal (HDMI 2/EXT 3 AUDIO (L/R)). However, the proper item
must be selected in the “Audio select” menu.
When the MAIN POWER switch is turned off ( ), the amount of electric power consumed will be reduced to 0.01 W or less. However,
unlike when unplugging the AC cord, the power is not completely disconnected.
/
CH
/
*2
*1
