CHAPTER2. Removing of Major Parts
LC-32SV40U
1.Assy/PanelRemoval
Notes: Please put your machine on soft material to avoid to scrape panel when
you disassemble it.

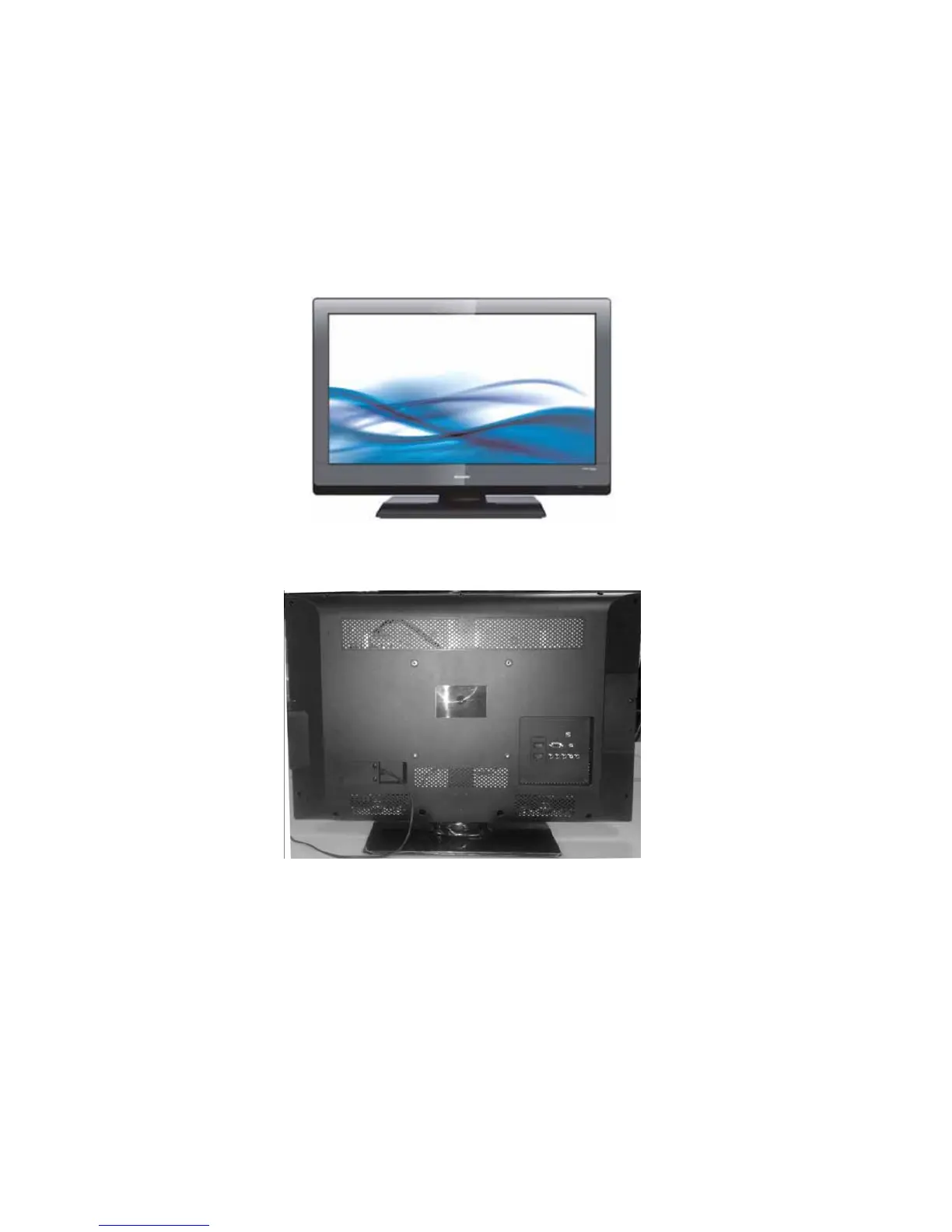

Front view
Fig.1
Back view
Fig.2
Step 1. Remove the Base Assy.
1. Remove the base as Fig.3.
Remove the 4 screws as Fig.3 and pull out the base.
