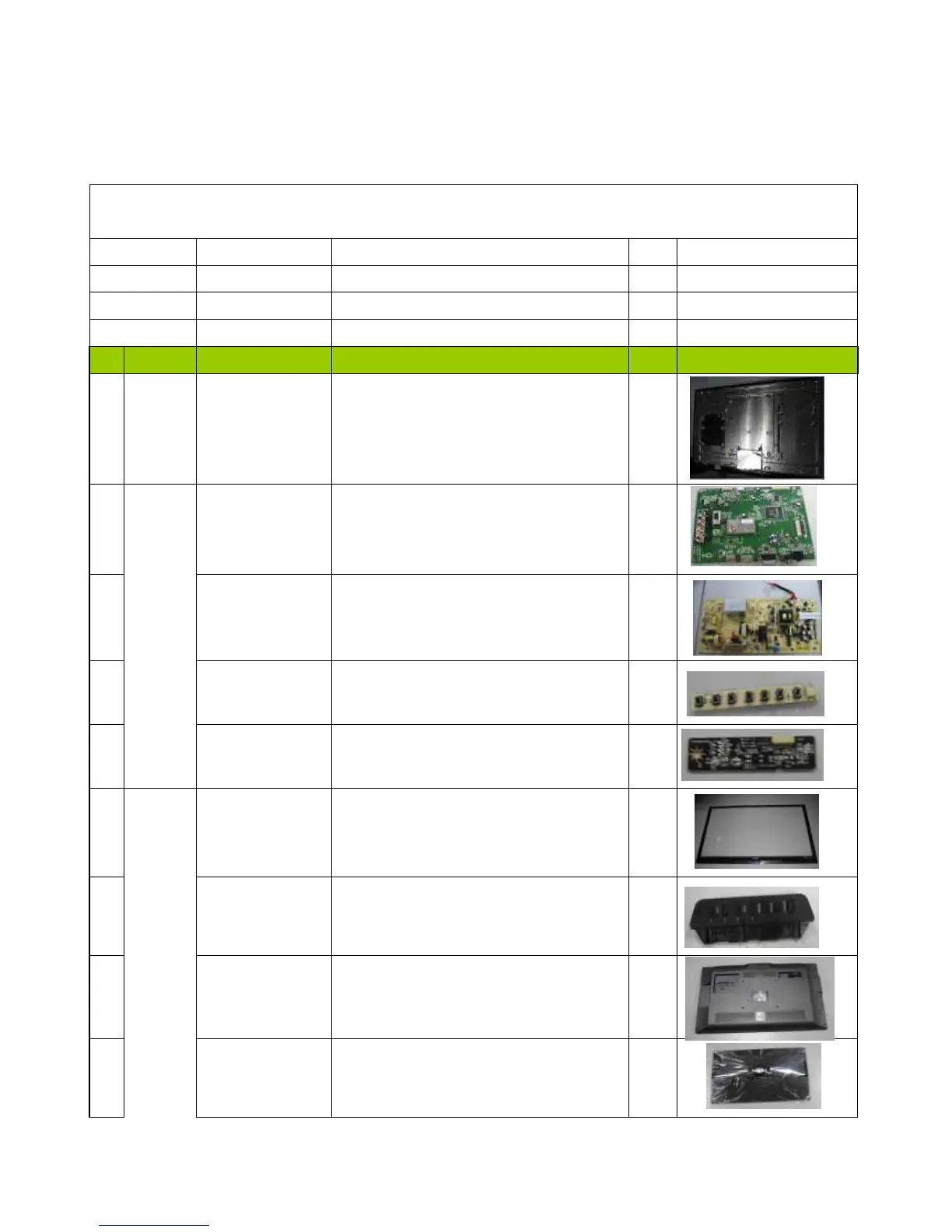

CHAPTER 9.PARTS GUIDE
[1]SPART PARTS LIST
LC-32SV40U
Recommended Spare Parts List
Material 751202C00-600-G
Region NA
Description LC-32SV40U
Updated date
2011 年 12 月 15 日
Item Catalog Component no. Object description
Usage Photo
1 Panel
9JY76040JA00517G PANEL CMI V315B6-L03 1
2
9JY0132CTG05101 LC-32SV40U/CTG05,Mother Board 1
3
9JY0932CTG05001 LC-32SV40U/CTG05,Power Board 1
4
9JY0332CTG05000 LC-32SV40U/CTG05,Keypad Board 1
5
PCBA
9JY0432CTG05000 LC-32SV40U/CTG05,IR Board 1
6
9JY01200019570 ASSY FRONT BEZEL,CTG05 1
7
9JY01200019626 ASSY KEY,VT321L 1
8
9JY01200019579 ASSY BACK COVER,CTG05 1
9
Cosmetics
9JY01200019622 ASSY BASE,VT321L 1
