Sharp LC-42SV50U Service Manual

27

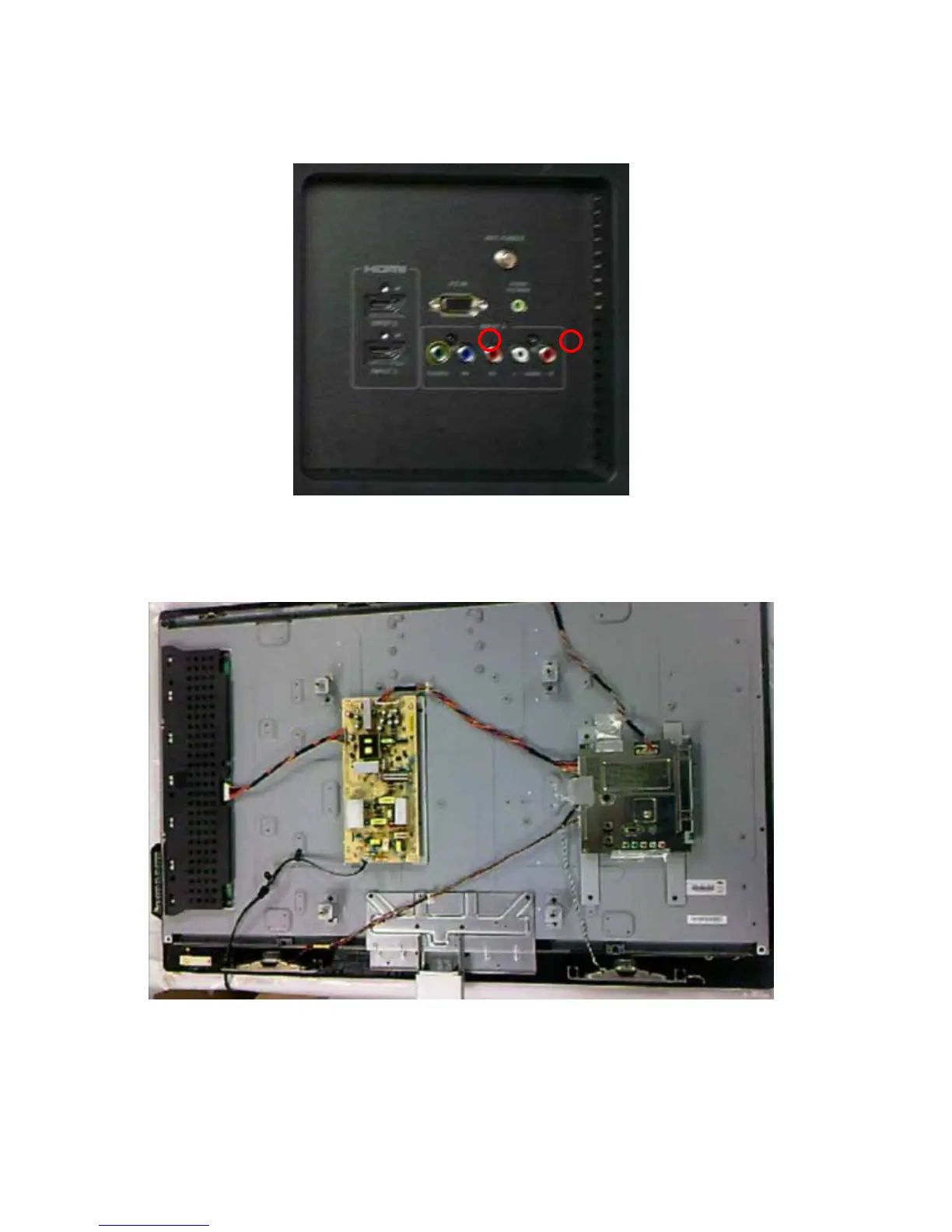

4. Remove the 2 screws at the IO area as Fig.8.
Fig.8
Step 3. Remove the Main, Power ,IR board , Key Pad ASSY, and the Speakers.
Fig.9
1. Remove the 12 screws and disconnect 4 cables .Detach the Main board ASSY
as Fig.10
