29

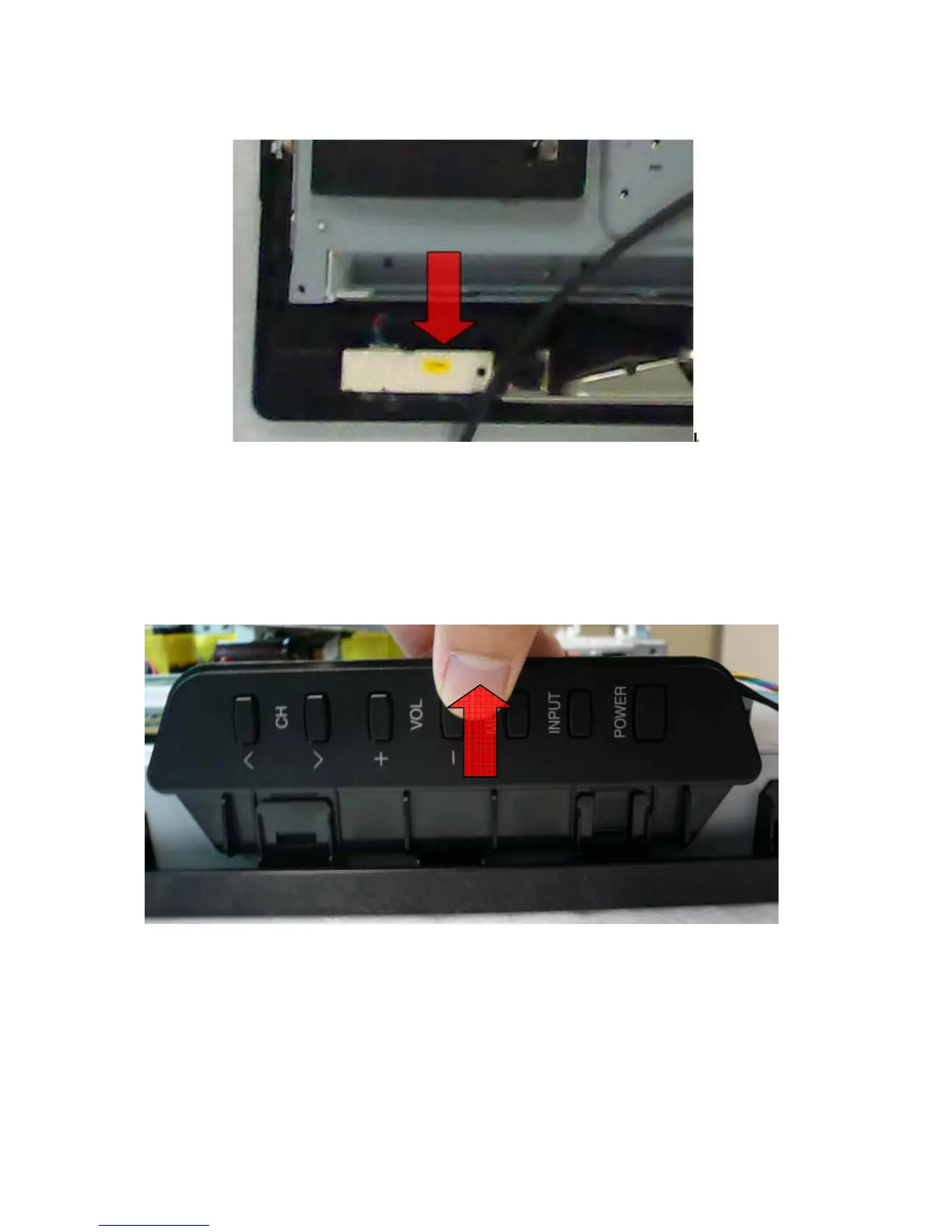

3. Detach the IR board as Fig.12.
Fig.12
3. Detach the Key Pad ASSY as Fig.13.
Fig.13
5. Detach the Speakers as Fig.14. Fig.15.
Pull
