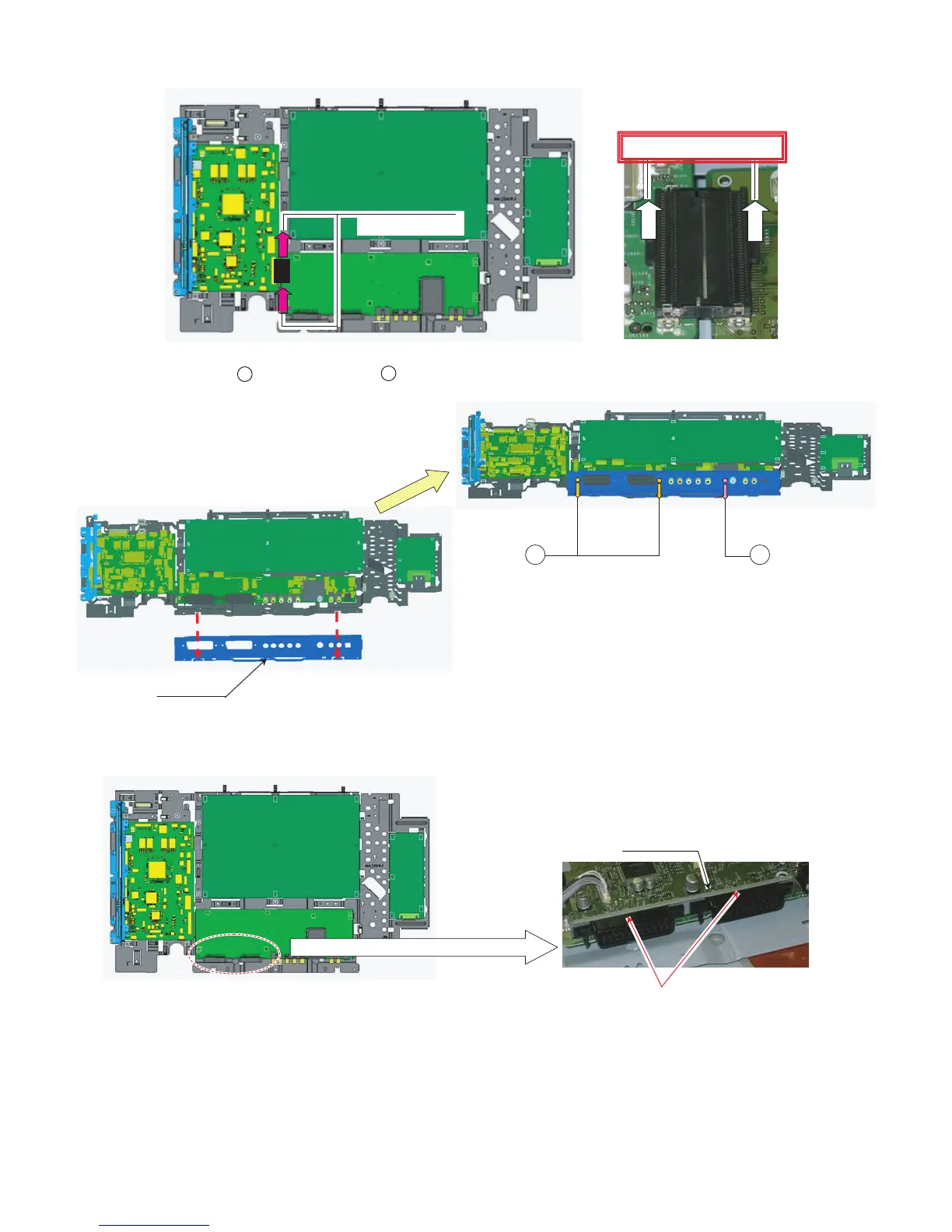

16.Remove all the connectors from PWBs.
17.Remove the 2 lock screws , and the 1 lock screw . Detach the Terminal Angle Bottom.
B to B connection
Pull same time
17
18
TML ANG BTM
17 18
SCART ANGLE
#SCART Angle Stepping on terminal
