Sharp LC-46LE810E - Chapter 4. Removing of Major Parts Removing of Major Parts (Lc-40 Le810 E;Lx810 E)

LC-40/46LE810E, LC-40/46LX810E
4 – 1
LC-40LE810E
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-40LE810E/LX810E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screw and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screw , 1 lock screw , 4 lock screws and 12 lock screws and detach the Rear Cabinet Ass’y .

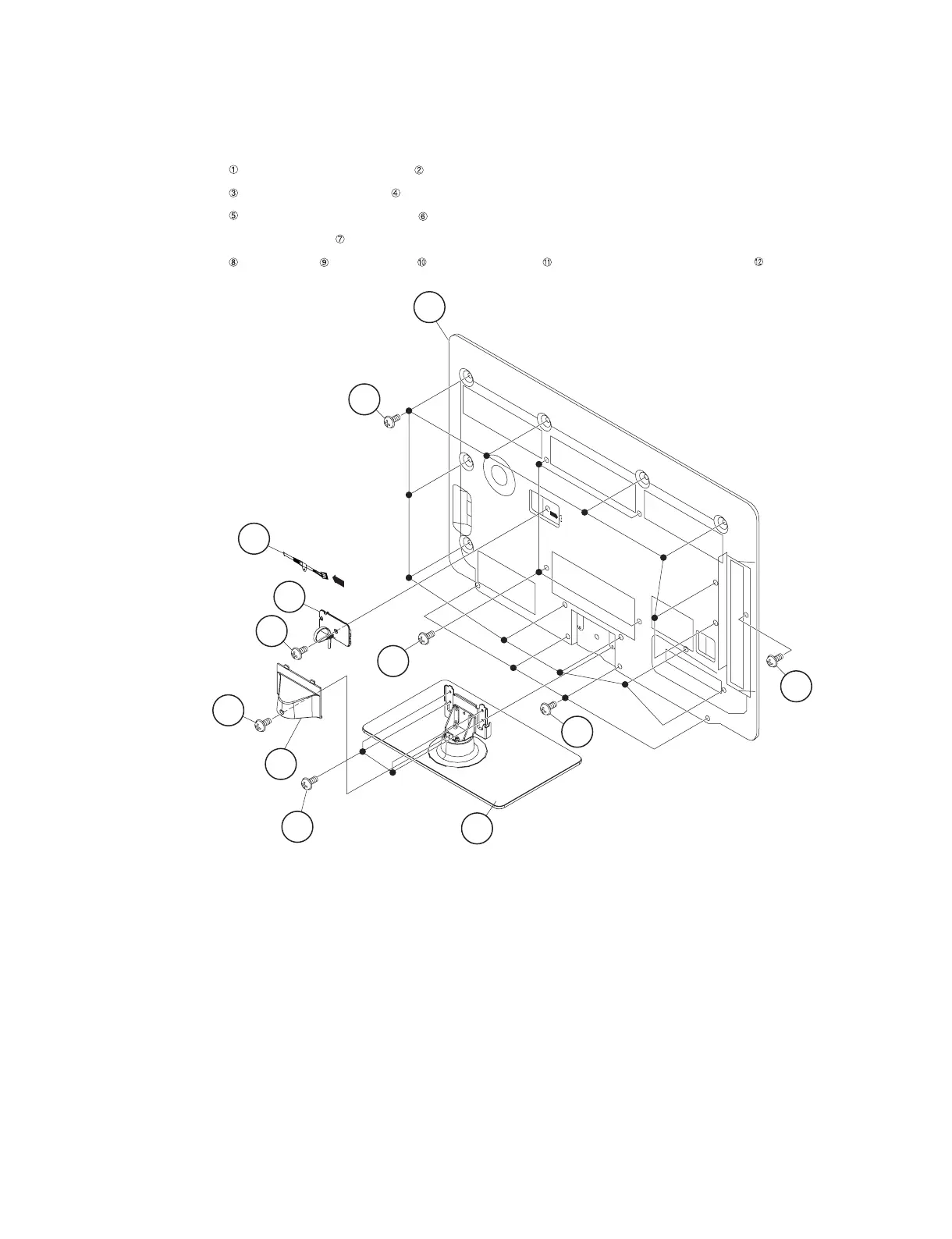

Rear Cabinet Ass'y
4Stand Unit
2Support Cover
6AC Cord Cover
11
12
5
10
3
8
9
1
7AC Cord
[AC]
[AC]
