2.21. IC9601, 9603, 9604, 9606 (VHiTPS40055-1Y)

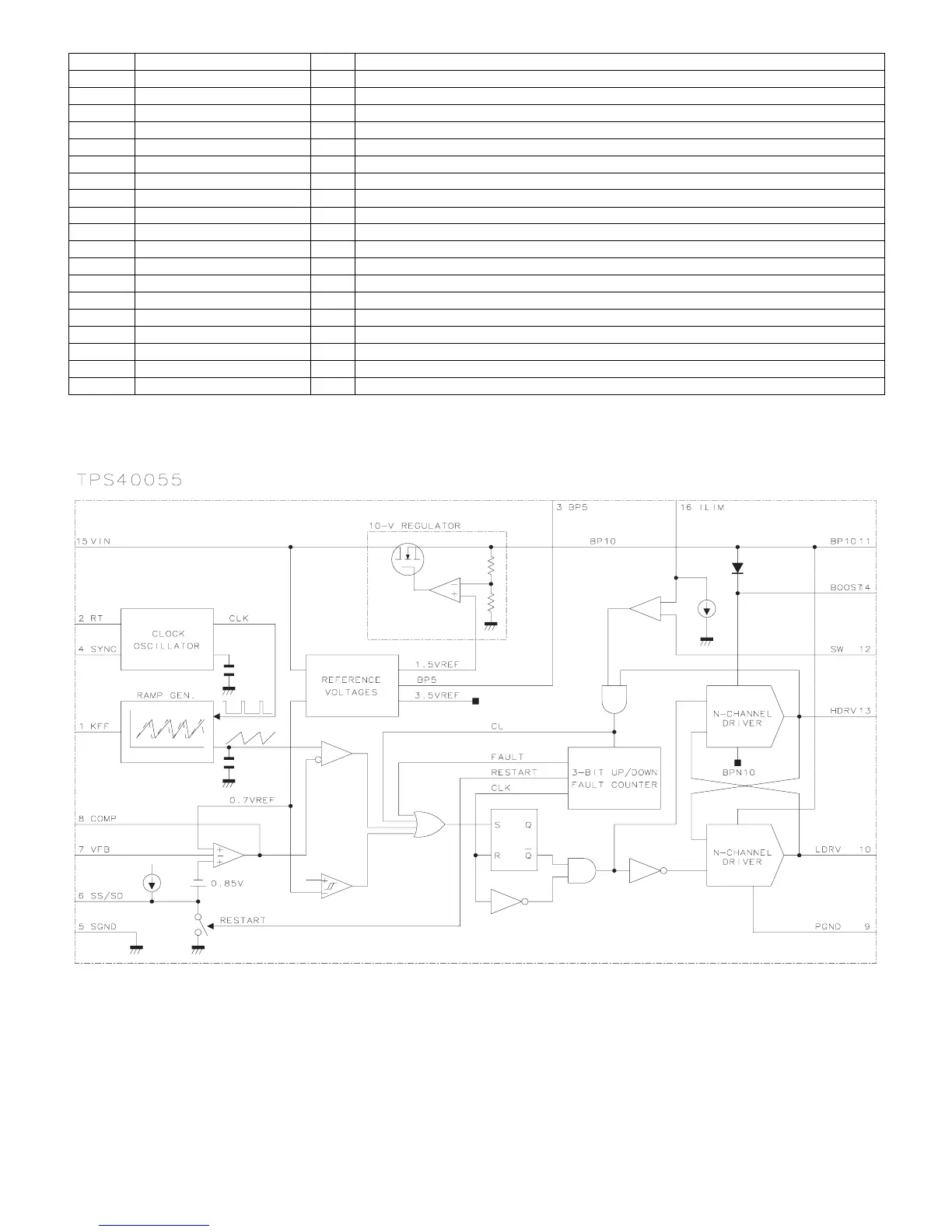

2.21.1 Block Diagram
126 HDMI_PLG_EN O HDMI output control
127 D3.3V — Power supply(+3.3V)
128 MUTE_HDMI O HDMI_MUTE initial value Low
129 HPLUGOUT_A I HDMI Plug Out detection
130 HDMIKEY_WP O EDIT_Write Protect
131 N_CPLD2_RST O CPLD2 reset
132 PNL_POW O Panel power control
133 HDMI_SW_INT INT HDMI SW IC interrupt request
134 HDELAY_DOUT O HDMI Data Delay Serial_Data_OUTPUT
135 N_MICOM_FLSW O Monitor microprocessor write control
136 N_MICOM_RST O Monitor microprocessor reset control
137 SMPOWHOLD O Power holding signal
138 PM_REQ INT Panel Maicon REQ
139 N_DBOOTS I Microprocessor write request
140 CBOOTS I SD card activation detection
141 D3.3V — Power supply(+3.3V)
142 N_DBG_RST I Debugger (Partner) reset
143 N_SRESET I System reset
144 GND_B — Ground
Pin No. Pin Name I/O Pin Function
