7. Remove the 1 lock screw . and detach the Bottom Cover.
8. Remove all the connectors from PWBs.
9. Remove the Illumination Unit.
8
BOTTOM COVER
8
FRONT CABINET

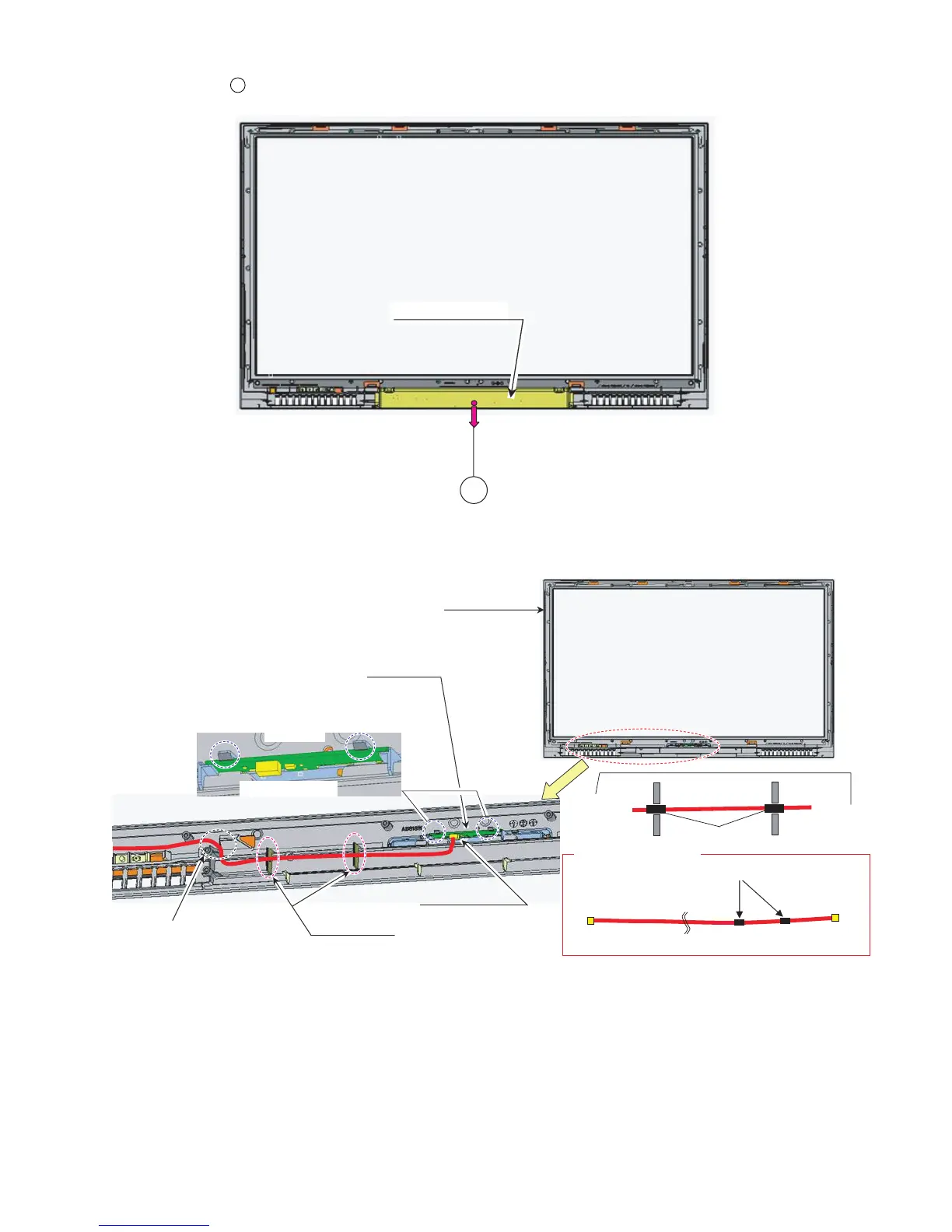

Wire "IL"
Wire "IL" to rib
Illumination Unit
Wire "IL"
#Hook Surely
#Connector side Down
#Wire "IL" pass between SP Boss
and Panel hooker
Illumination Unit
To LED PWB
TAPING
Wire "IL" Connection Direction
Wire "IL"
Tape
