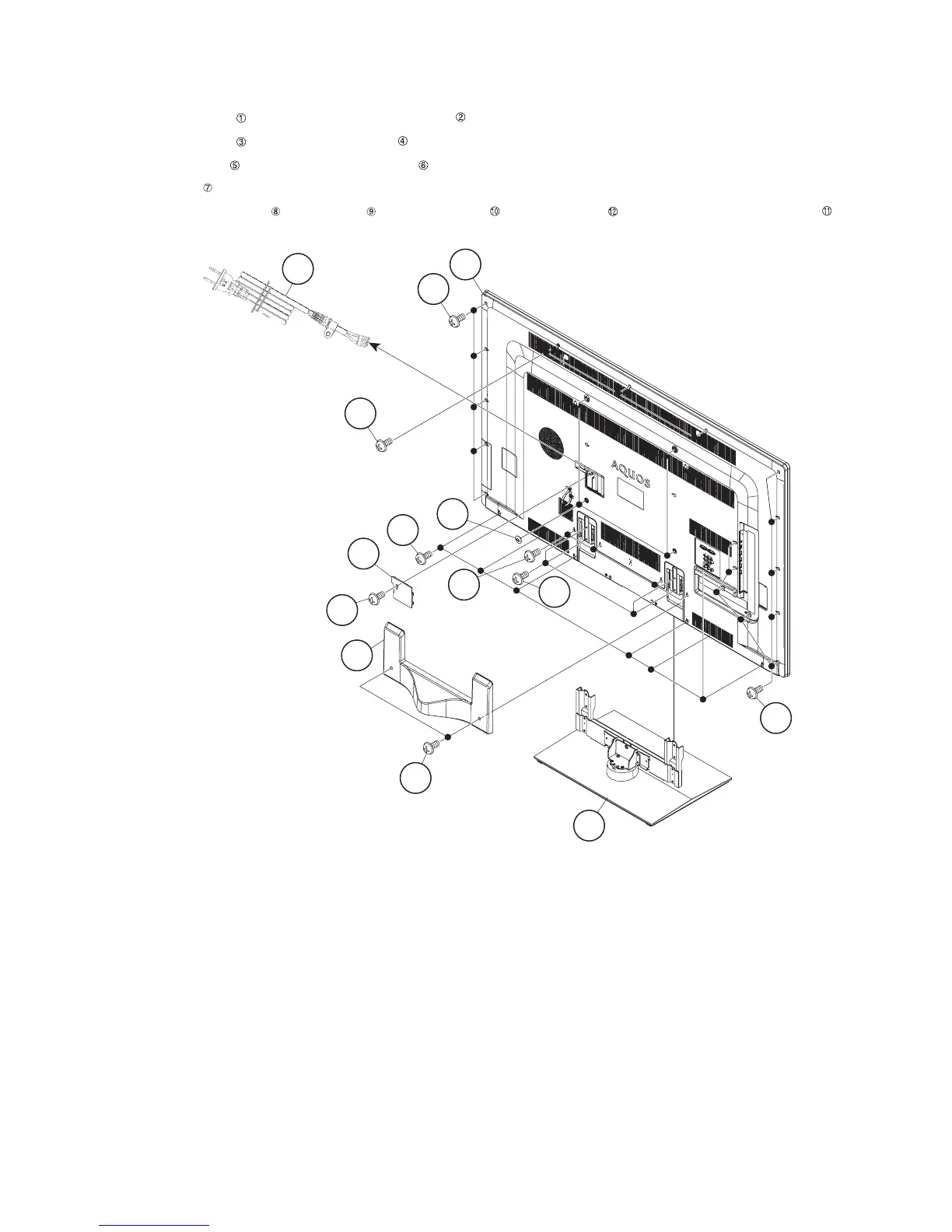

[2] REMOVING OF MAJOR PARTS (LC-60LE830E,RU/831E,S/833E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 2 lock screws and detach the Stand Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 Vesa Hole Covers , 7 lock screws and 18 lock screws and 3 lock screws and detach the Rear Cabinet Ass’y .
4Stand Unit
AC Cord
7
Rear Cabinet Ass'y
11
3
8
1
2Stand Support Cover
5
6
9
AC Cord Cover
10
10
10
12
