LC-46D82U/LC-52D82U
2 – 11

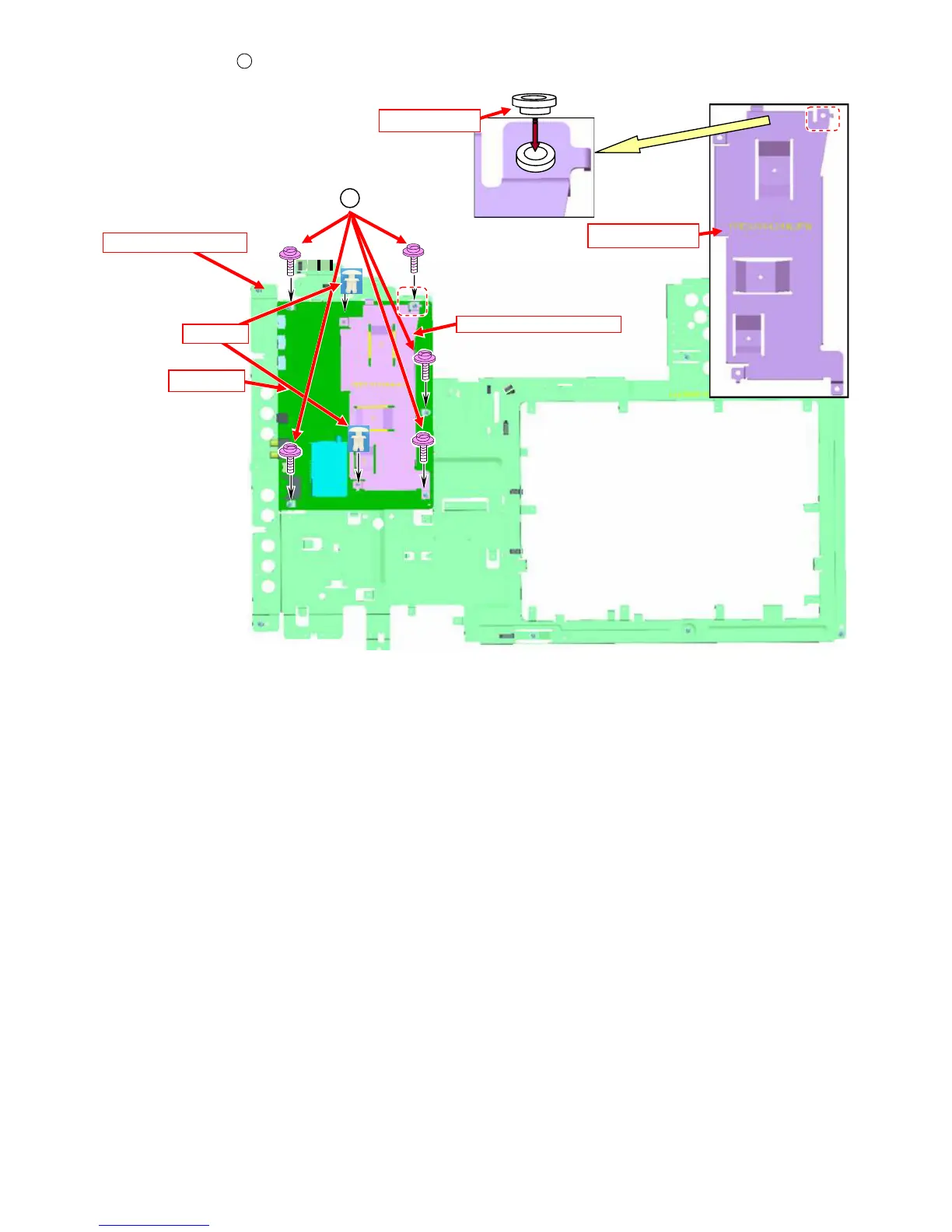

24.Remove the 5 lock screws and 2 lock rivets detach the Main unit and Radiator A Main.
22
MAIN UNIT
KS TRAY CHASSIS ASS'Y
RIVET
RADIATOR-A-MAIN ASS'Y
㵘
RESIN WASHER
RADIATOR-A-MAIN
22
