Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
9 – 1
LC32LE700E
ServiceManual

CHAPTER 9. PRINTED WIRING BOARD ASSEMBLIES

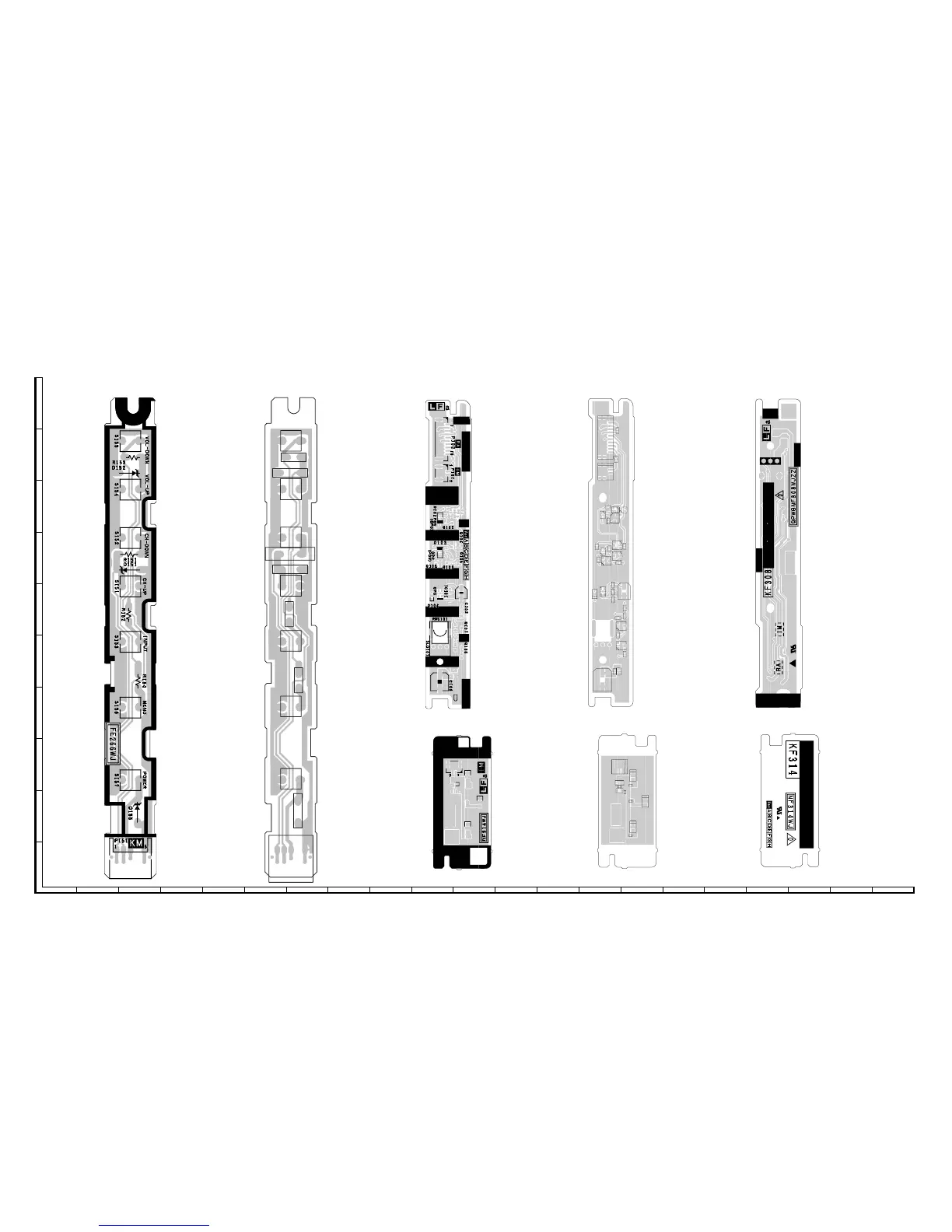

[1] KEY Unit, R/C, LED Unit, ICON Unit
KEY Unit (Side-A)
KEY Unit (Chip Parts Side-A)
R/C, LED Unit (Side-A)
R/C, LED Unit (Side-B)R/C, LED Unit (Chip Parts Side-A)
ICON Unit (Side-A)
ICON Unit (Side-B)ICON Unit (Chip Parts Side-A)
C201
C202
D201
D202D203
D204
P201
R201
R202
R203
R204
P101P102
Q102
Q103
Q104 Q105
Q106Q107
FB101
R103
R105
R106
R107
R109
R110
R113
R114
R115
R116
R117
R118
R119
R120
R121R122
R123
R124
C101
C102
C103
C104
D102 D103
D104
IC101
S155
R153
D152
S154
S152
R151
D151
S151
R152
S153
R154
S156
S157
D155
P151
123456789
A
B
C
D
E
F
G
H
I
J
10 11 12 13 14 15 16 17 18 19 20 21

Sharp LC-52LE700E Specifications

General

Display diagonal	52 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	1320 mm
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	176 °
Power requirements	AC 220-240 V / 50 Hz
RS-232 ports	1
HDMI ports quantity	4
SCART ports quantity	2
Component video (YPbPr/YCbCr) in	3
Product color	Black
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (without stand)	95 mm
Width (without stand)	1238 mm
Height (without stand)	765 mm
Weight (without stand)	27600 g
